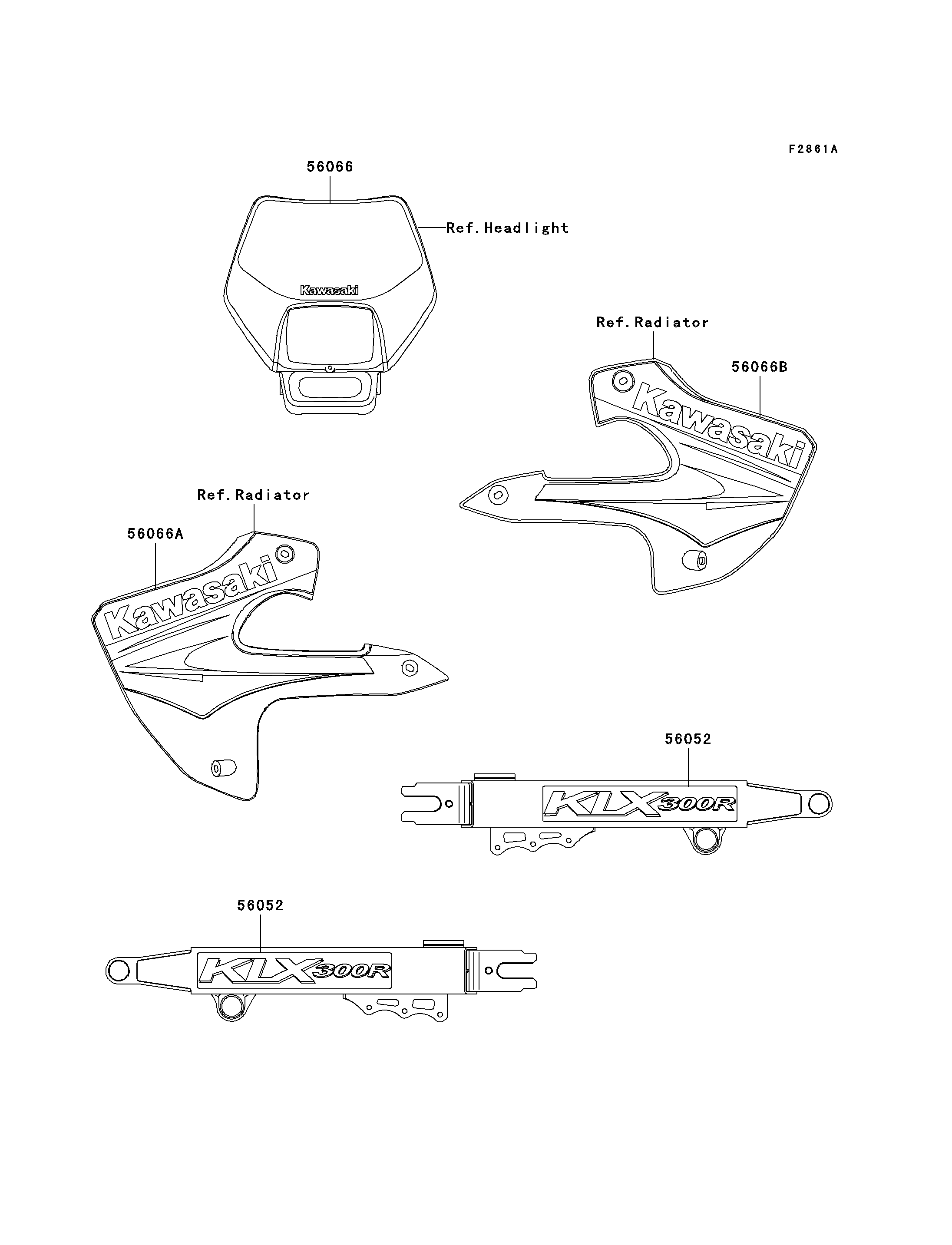

56052
56052
56066
56066A
56066B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,KLX300R 56052 56052-1783 2
PATTERN,HEAD LAMP COVER 56066 56066-1089 1
PATTERN,SHROUD,LH 56066A 56066-1207 1
PATTERN,SHROUD,RH 56066B 56066-1208 1
