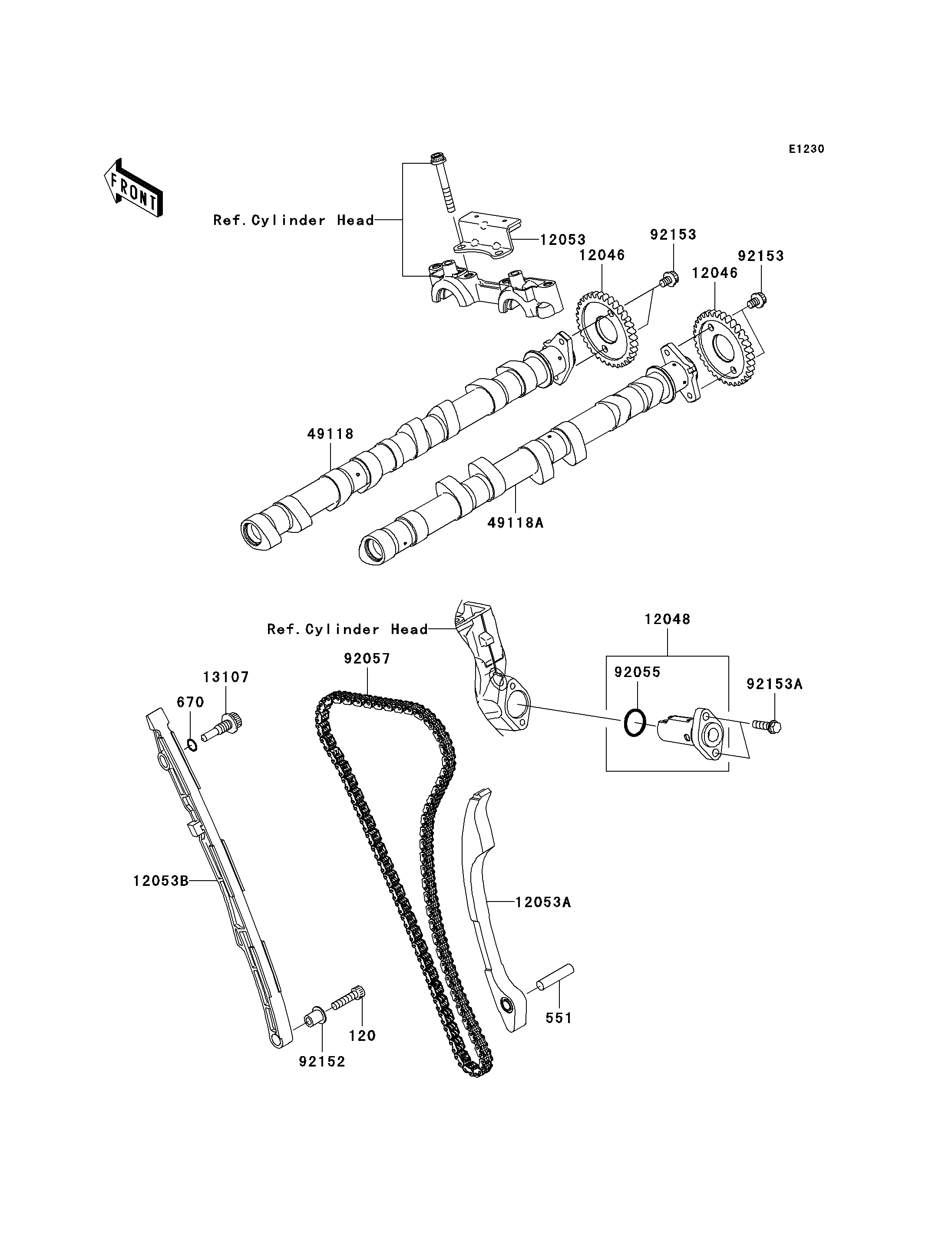

2008 Ninja® ZX™-14 - Camshaft(s)/Tensioner
120
551
670
12046
12046
12048
12053
12053A
12053B
13107
49118
49118A
92055
92057
92152
92153
92153
92153A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X25 | 120 | 120CA0625 | 1 | ||
| PIN-DOWEL | 551 | 551A0835 | 1 | ||
| O RING,9MM | 670 | 670D1509 | 1 | ||
| SPROCKET,34T | 12046 | 12046-0062 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-0048 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-0067 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-0093 | 1 | ||
| GUIDE-CHAIN,FR | 12053B | 12053-0095 | 1 | ||
| SHAFT,CHAIN GUIDE | 13107 | 13107-0157 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118 | 49118-0097 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118A | 49118-0125 | 1 | ||
| RING-O,18.8X1.9 | 92055 | 92055-086 | 1 | ||
| CHAIN,92RH2015-130M | 92057 | 92057-0109 | 1 | ||
| COLLAR | 92152 | 92152-0413 | 1 | ||
| BOLT,FLANGED,6X8 | 92153 | 92153-0455 | 4 | ||
| BOLT-FLANGED-SMALL,6X22 | 92153A | 92153-1560 | 2 |
