Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

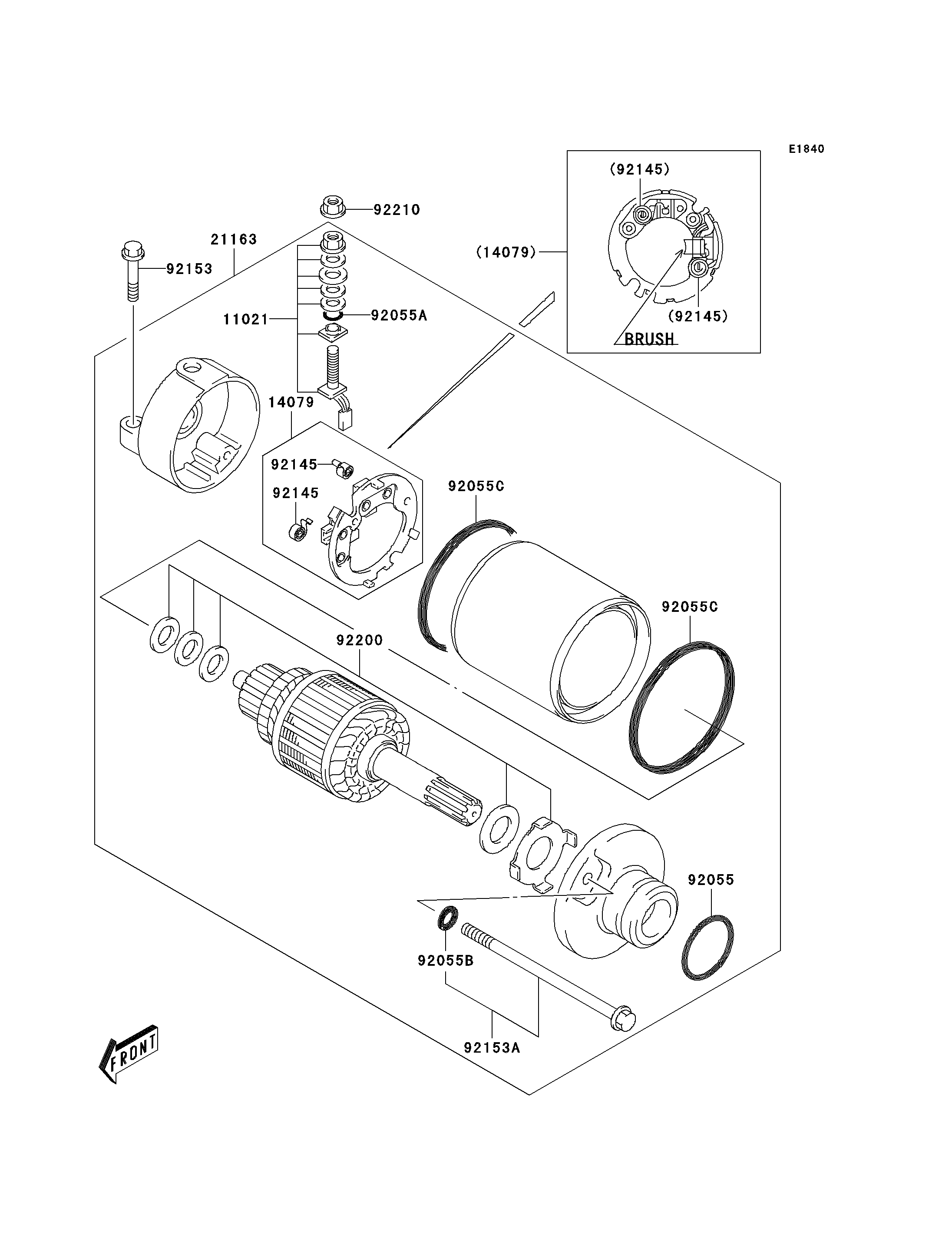

11021
14079
21163
92055
92055A
92055B
92055C
92055C
92145
92145
92153
92153A
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRUSH,TERMINAL SET 11021 11021-S002 1
HOLDER-ASSY 14079 14079-S002 1
STARTER-ELECTRIC 21163 21163-S004 1
RING-O,D:3,ID:24.5 92055 92055-S008 1
RING-O 92055A 92055-S067 1
RING-O 92055B 92055-S068 2
RING-O 92055C 92055-S069 2
SPRING,BRUSH 92145 92145-S103 2
BOLT 92153 92153-S003 2
BOLT 92153A 92153-S293 2
WASHER,SET 92200 92200-S154 1
NUT,STARTING MOTOR 92210 92210-S099 1
