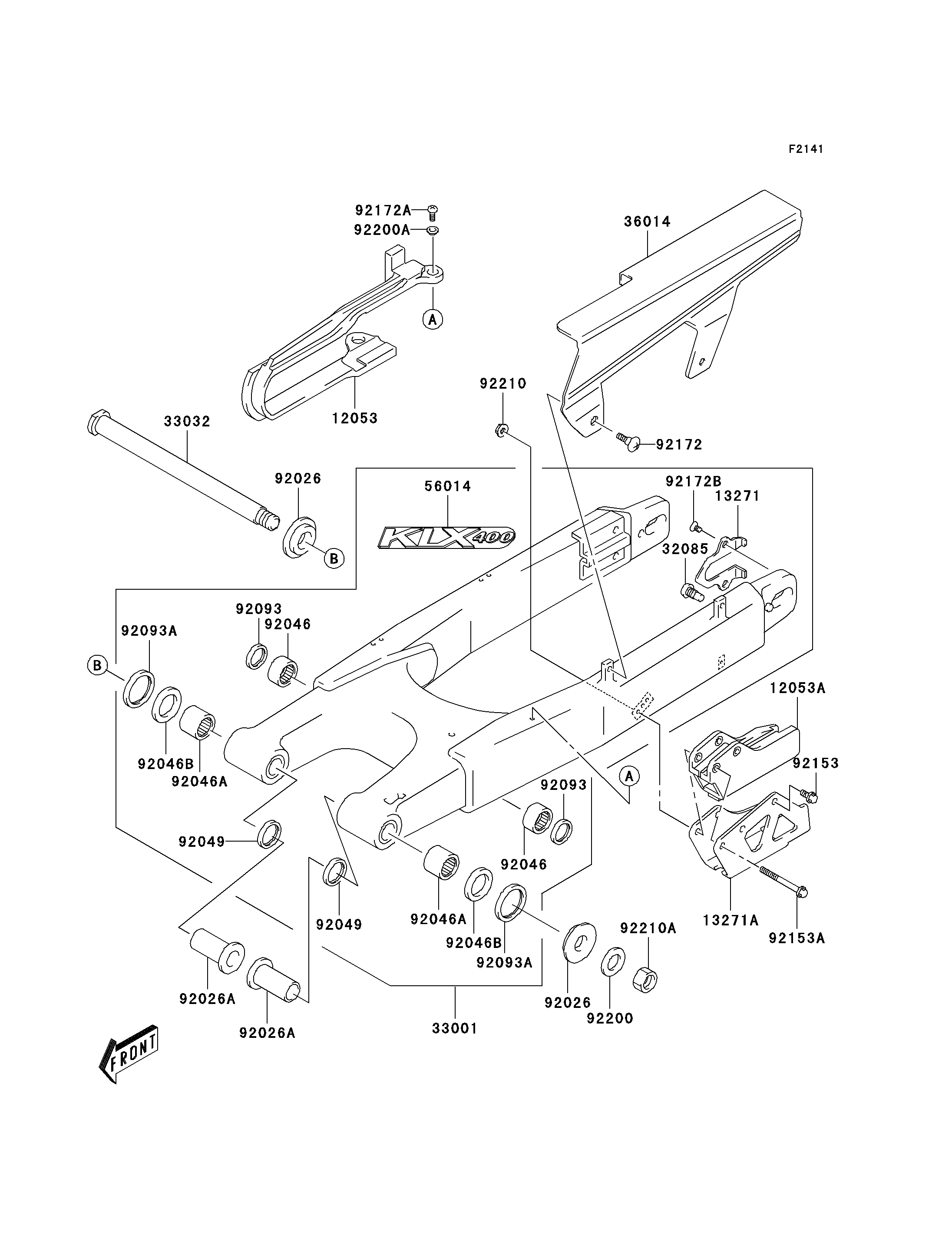

2003 KLX400SR - Swingarm(KLX400-A1)

DOWNLOAD PDF
SELECT A NEW PART
12053
12053A
13271
13271A
32085
33001
33032
36014
56014
92026
92026
92026A
92026A
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92093
92093
92093A
92093A
92153
92153A
92172
92172A
92172B
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN 12053 12053-S020 1
GUIDE-CHAIN 12053A 12053-S021 1
PLATE 13271 13271-S060 1
PLATE,CHAIN GUIDE 13271A 13271-S063 1
STOPPER,CHAIN ADJUSTER 32085 32085-S016 2
ARM-COMP-SWING 33001 33001-S008 1
SHAFT-SWING ARM 33032 33032-S005 1
CASE-CHAIN 36014 36014-S007 1
EMBLEM,SWGARM,BLACK/GOLD 56014 56014-S022-566 2
SPACER 92026 92026-S121 2
SPACER 92026A 92026-S130 2
BEARING-NEEDLE 92046 92046-S018 2
BEARING-NEEDLE,SWING ARM 92046A 92046-S019 2
BEARING-NEEDLE,22X35X2 92046B 92046-S023 2
SEAL-OIL,SWING ARM 92049 92049-S053 2
SEAL 92093 92093-S041 2
SEAL,29.2X37X4 92093A 92093-S045 2
BOLT 92153 92153-S144 1
BOLT 92153A 92153-S335 2
SCREW,6X16 92172 92172-S073 2
SCREW 92172A 92172-S110 3
SCREW,5X8 92172B 92172-S209 2
WASHER 92200 92200-S030 1
WASHER 92200A 92200-S200 3
NUT 92210 92210-S054 2
NUT 92210A 92210-S133 1
