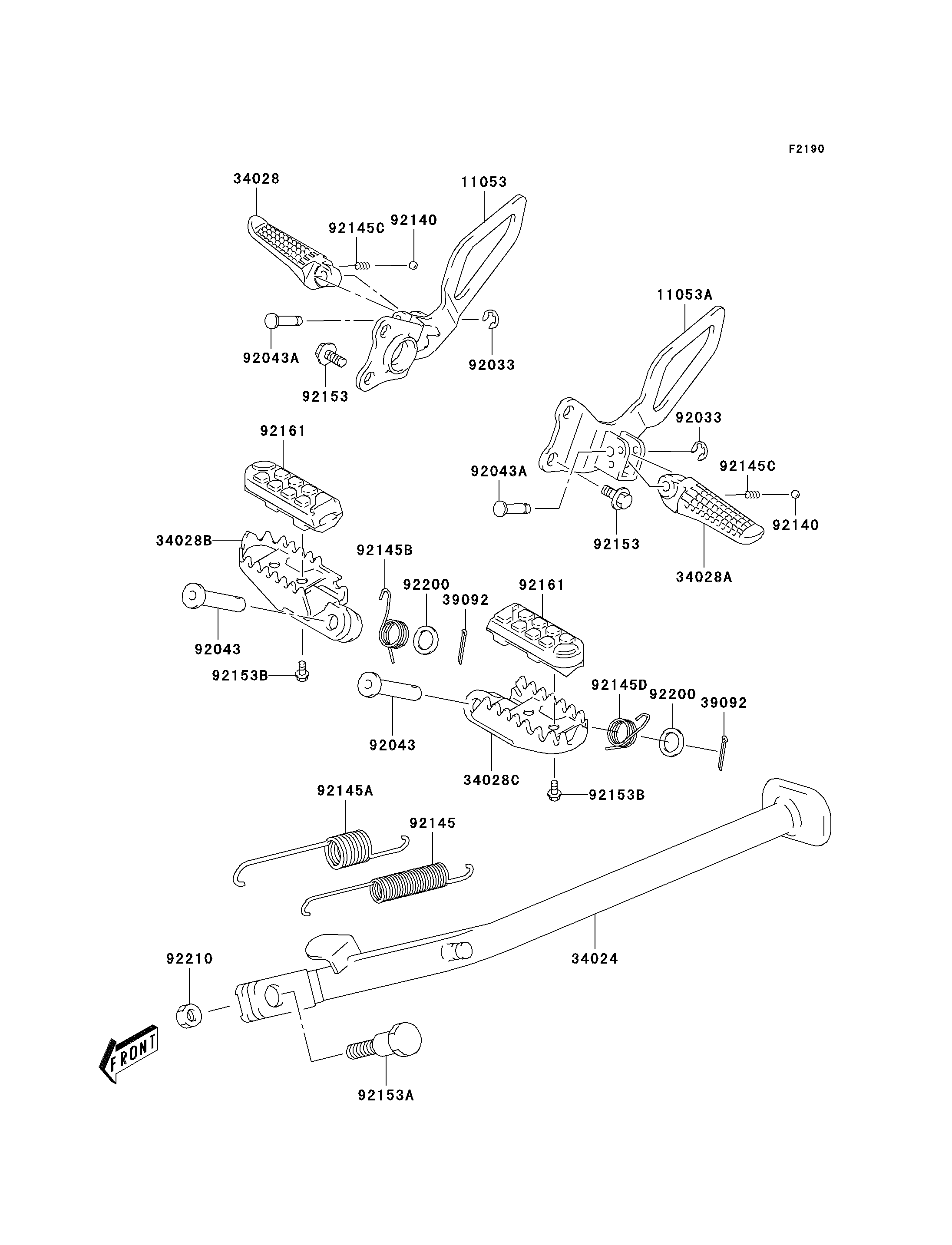

2003 KLX400SR - Stand(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053A
34024
34028
34028A
34028B
34028C
39092
39092
92033
92033
92043
92043
92043A
92043A
92140
92140
92145
92145A
92145B
92145C
92145C
92145D
92153
92153
92153A
92153B
92153B
92161
92161
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RH 11053 11053-S034 1
BRACKET,LH 11053A 11053-S035 1
STAND-SIDE 34024 34024-S006 1
STEP,RR,RH 34028 34028-S007 1
STEP,RR,LH 34028A 34028-S008 1
STEP,FR,RH 34028B 34028-S009 1
STEP,FR,LH 34028C 34028-S010 1
PIN-HAIR,COTTER 39092 39092-S013 2
RING-SNAP,BRAKE LEVER STOP 92033 92033-S028 2
PIN 92043 92043-S047 2
PIN 92043A 92043-S048 2
BALL 92140 92140-S006 2
SPRING 92145 92145-S129 1
SPRING 92145A 92145-S130 1
SPRING 92145B 92145-S131 1
SPRING 92145C 92145-S132 2
SPRING 92145D 92145-S138 1
BOLT 92153 92153-S108 4
BOLT 92153A 92153-S153 1
BOLT 92153B 92153-S343 2
DAMPER 92161 92161-S121 2
WASHER,MAGNETO 92200 92200-S092 2
NUT 92210 92210-S060 1
