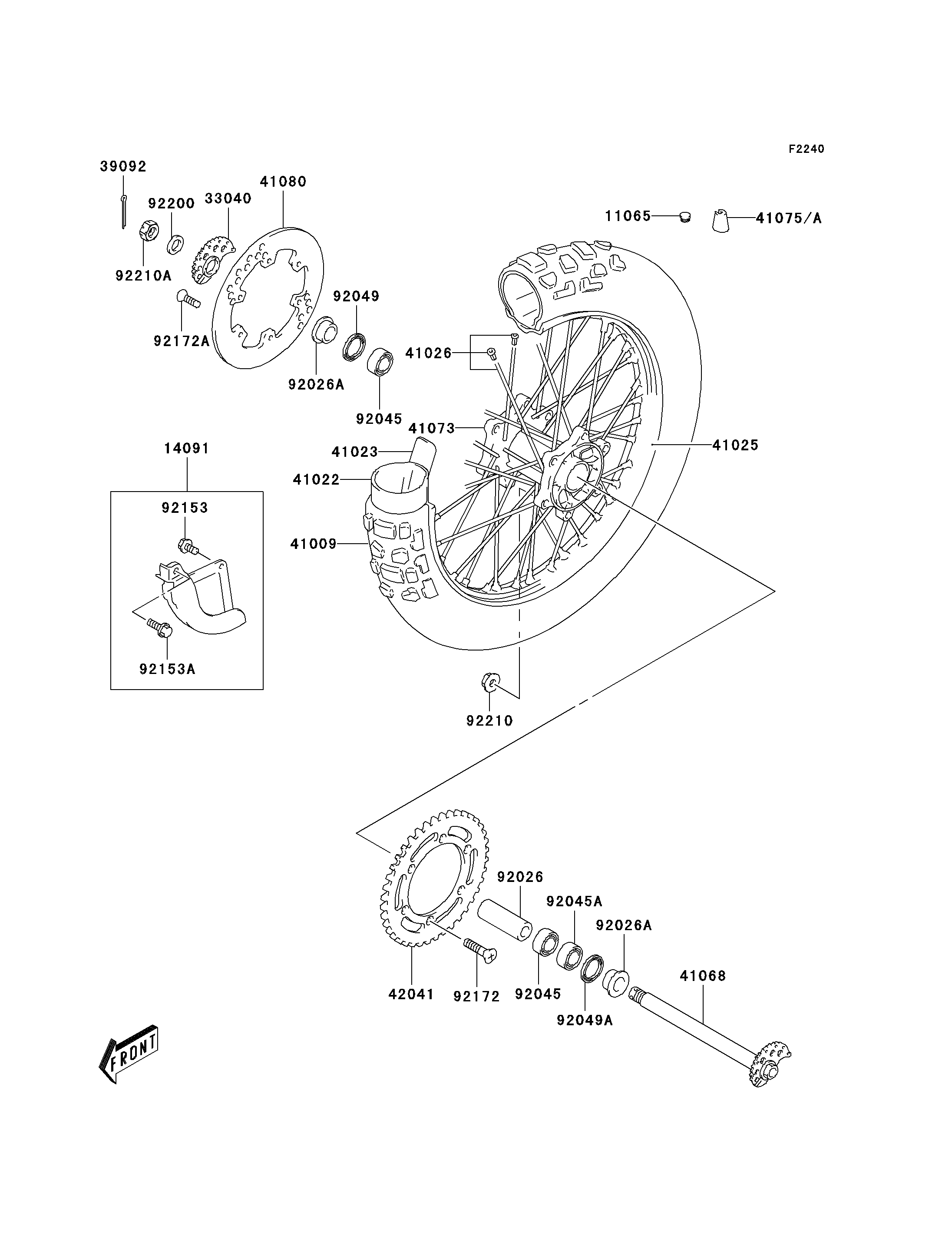

Parts Diagrams |
11065
14091
33040
39092
41009
41022
41023
41025
41026
41068
41073
41075
41075A
41080
42041
92026
92026A
92026A
92045
92045
92045A
92049
92049A
92153
92153A
92172
92172A
92200
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,STOPPER HANDLE | 11065 | 11065-S027 | 1 | ||
COVER,DISC | 14091 | 14091-S100 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-S004 | 1 | ||
PIN-HAIR,REAR AXLE | 39092 | 39092-S008 | 1 | ||
TIRE,120/90-18 65P | 41009 | 41009-S016 | 1 | ||
TUBE-TIRE | 41022 | 41022-S007 | 1 | ||
BAND-RIM | 41023 | 41023-S007 | 1 | ||
RIM,2.15X18 | 41025 | 41025-S012 | 1 | ||
SPOKE-ASSY,RR | 41026 | 41026-S007 | 1 | ||
AXLE,RR | 41068 | 41068-S013 | 1 | ||
WHEEL-ASSY,RR | 41073 | 41073-S006 | 1 | ||
BALANCER-WHEEL | 41075 | 41075-S004 | 1 | ||
BALANCER-WHEEL | 41075A | 41075-S005 | 1 | ||
DISC,RR | 41080 | 41080-S008 | 1 | ||
SPROCKET-HUB,44T | 42041 | 42041-S008 | 1 | ||
SPACER | 92026 | 92026-S133 | 1 | ||
SPACER | 92026A | 92026-S134 | 2 | ||
BEARING-BALL | 92045 | 92045-S059 | 2 | ||
BEARING-BALL | 92045A | 92045-S060 | 1 | ||
SEAL-OIL,29X42X6 | 92049 | 92049-S009 | 1 | ||
SEAL-OIL,29X47X5 | 92049A | 92049-S060 | 1 | ||
BOLT | 92153 | 92153-S011 | 1 | ||
BOLT | 92153A | 92153-S013 | 1 | ||
SCREW,SPROCKET | 92172 | 92172-S111 | 6 | ||
SCREW,6X17.5 | 92172A | 92172-S210 | 6 | ||
WASHER | 92200 | 92200-S201 | 1 | ||
NUT | 92210 | 92210-S094 | 6 | ||
NUT | 92210A | 92210-S134 | 1 |
CAP,STOPPER HANDLE | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,DISC | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-HAIR,REAR AXLE | |
REF # | 39092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,120/90-18 65P | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,2.15X18 | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-ASSY,RR | |
REF # | 41026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR | |
REF # | 41073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALANCER-WHEEL | |
REF # | 41075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALANCER-WHEEL | |
REF # | 41075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DISC,RR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,44T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,29X42X6 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,29X47X5 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SPROCKET | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,6X17.5 | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
