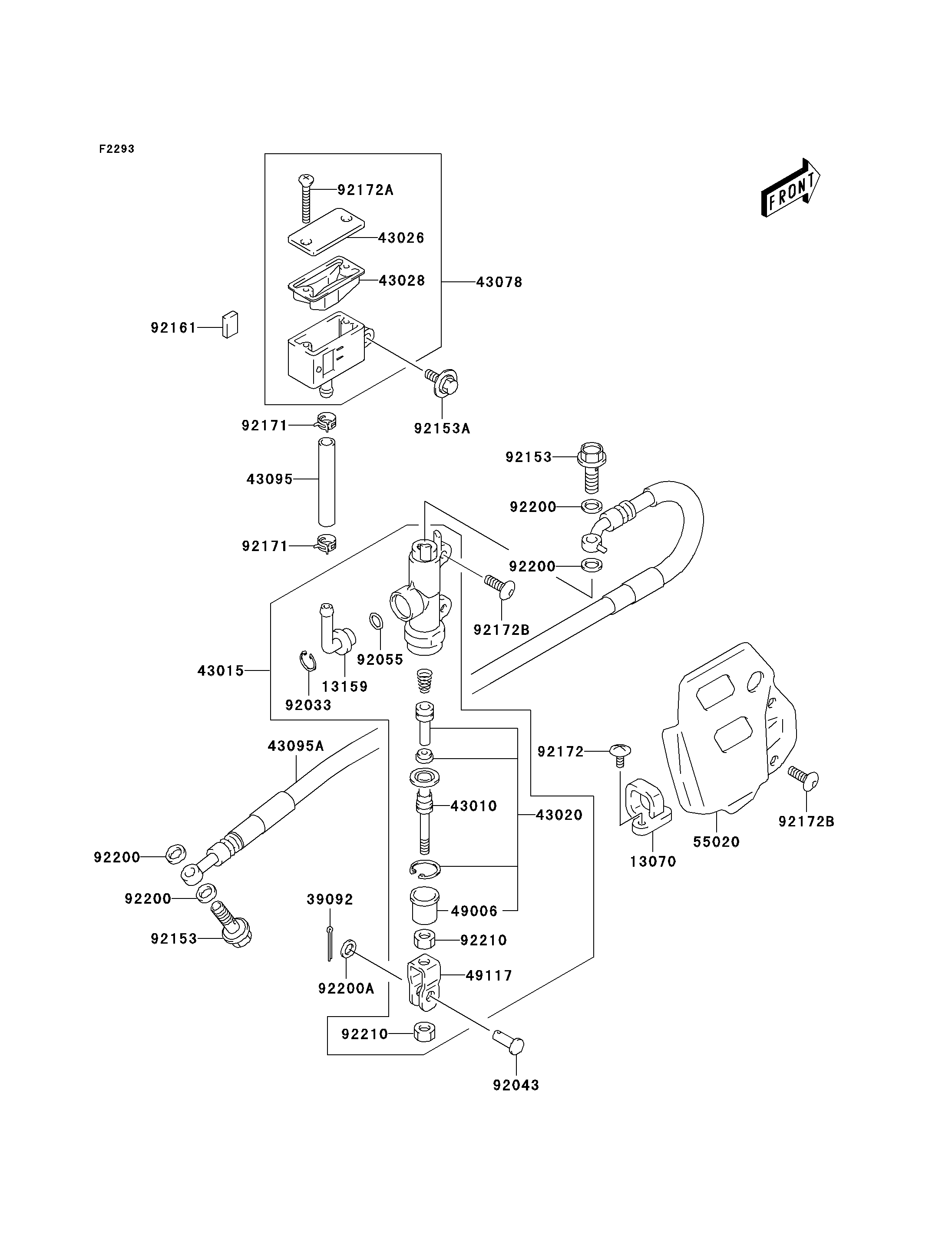

Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13070
13159
39092
43010
43015
43020
43026
43028
43078
43095
43095A
49006
49117
55020
92033
92043
92055
92153
92153
92153A
92161
92171
92171
92172
92172A
92172B
92172B
92200
92200
92200
92200
92200A
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,BRAKE HOSE | 13070 | 13070-S019 | 2 | ||
CONNECTOR | 13159 | 13159-S002 | 1 | ||
PIN-HAIR,FR FOOTREST COTTER | 39092 | 39092-S004 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-S002 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-S011 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-S007 | 1 | ||
CAP-BRAKE | 43026 | 43026-S008 | 1 | ||
DIAPHRAGM | 43028 | 43028-S006 | 1 | ||
RESERVOIR | 43078 | 43078-S007 | 1 | ||
HOSE-BRAKE,RESERVOIR | 43095 | 43095-S012 | 1 | ||
HOSE-BRAKE,RR | 43095A | 43095-S014 | 1 | ||
BOOT | 49006 | 49006-S026 | 1 | ||
YOKE | 49117 | 49117-S003 | 1 | ||
GUARD,REAR MASTER CYLINDER | 55020 | 55020-S030 | 1 | ||
RING-SNAP | 92033 | 92033-S042 | 1 | ||
PIN,REAR MASTER CYLINDER | 92043 | 92043-S036 | 1 | ||
RING-O | 92055 | 92055-S071 | 1 | ||
BOLT | 92153 | 92153-S053 | 2 | ||
BOLT,6X16 | 92153A | 92153-S320 | 1 | ||
DAMPER,RESERVOIR TANK | 92161 | 92161-S124 | 1 | ||
CLAMP | 92171 | 92171-S109 | 2 | ||
SCREW,MOVABLE DRIVE | 92172 | 92172-S144 | 2 | ||
SCREW | 92172A | 92172-S211 | 2 | ||
SCREW,6X16 | 92172B | 92172-S212 | 4 | ||
WASHER,10X15X1.5 | 92200 | 92200-S014 | 4 | ||
WASHER,REAR MASTER CYLINDER | 92200A | 92200-S135 | 1 | ||
NUT | 92210 | 92210-S112 | 2 |
GUIDE,BRAKE HOSE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CONNECTOR | |
REF # | 13159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-HAIR,FR FOOTREST COTTER | |
REF # | 39092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER,RR | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RESERVOIR | |
REF # | 43095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR | |
REF # | 43095A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
YOKE | |
REF # | 49117 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,REAR MASTER CYLINDER | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,REAR MASTER CYLINDER | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RESERVOIR TANK | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,MOVABLE DRIVE | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92172B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10X15X1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,REAR MASTER CYLINDER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
