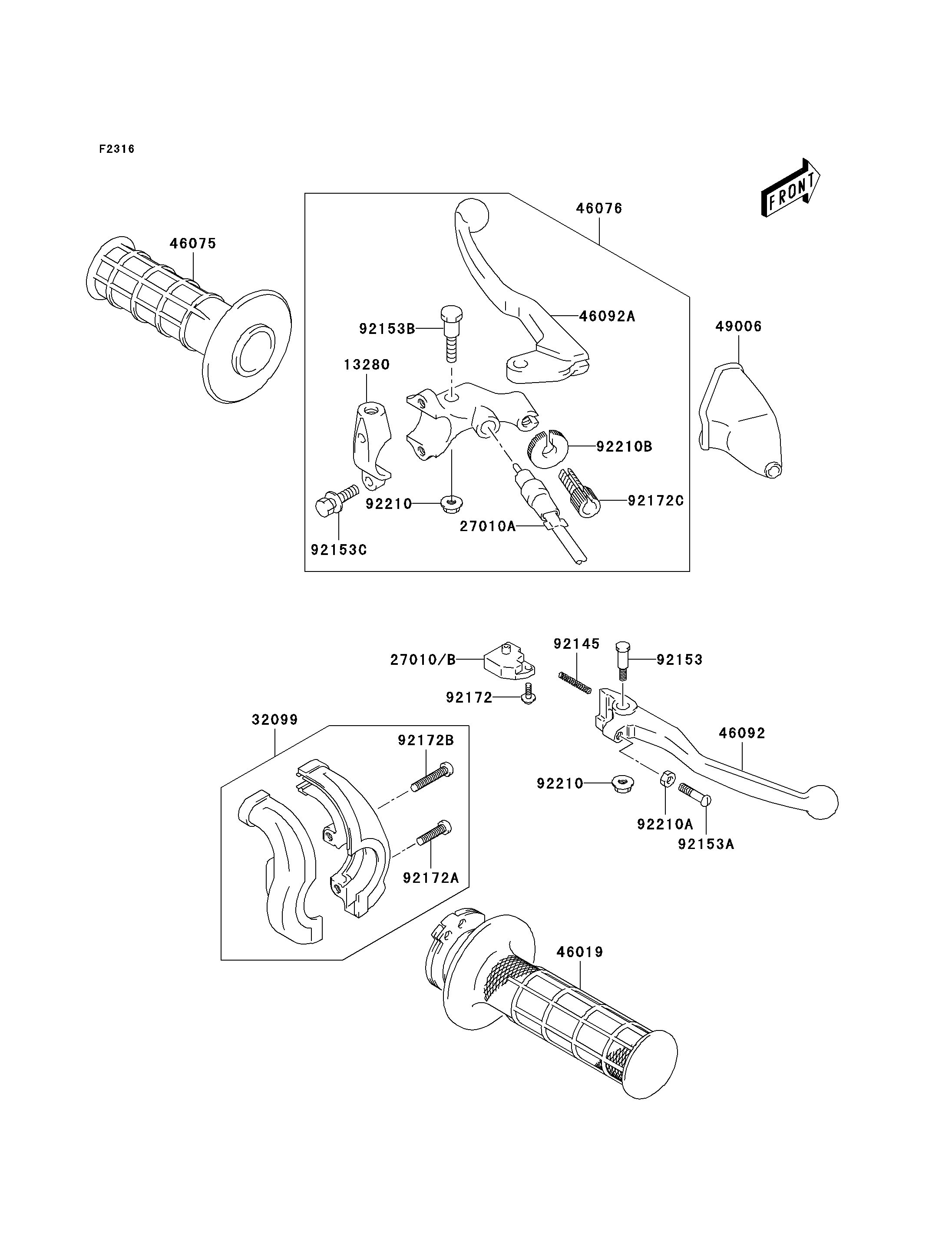

2003 KLX400SR - Handle Lever

DOWNLOAD PDF
SELECT A NEW PART
13280
27010
27010A
32099
46019
46075
46076
46092
46092A
49006
92145
92153
92153A
92153B
92153C
92172A
92172B
92172C
92210
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-S032 1
SWITCH,STOP 27010 27010-S006 1
SWITCH,CLUTCH 27010A 27010-S034 1
CASE,THROTTLE 32099 32099-S008 1
GRIP-ASSY,THROTTLE 46019 46019-S005 1
GRIP,LH 46075 46075-S008 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-S009 1
LEVER-GRIP,BRAKE 46092 46092-S013 1
LEVER-GRIP,CLUTCH 46092A 46092-S014 1
BOOT,CLUTCH CABLE 49006 49006-S030 1
SPRING,RETURN 92145 92145-S052 1
BOLT 92153 92153-S170 1
BOLT 92153A 92153-S171 1
BOLT 92153B 92153-S345 1
BOLT 92153C 92153-S346 2
SCREW 92172A 92172-S133 1
SCREW 92172B 92172-S155 1
SCREW,ADJUSTER 92172C 92172-S206 1
NUT 92210 92210-S053 2
NUT 92210A 92210-S065 1
NUT,LOCK 92210B 92210-S128 1
