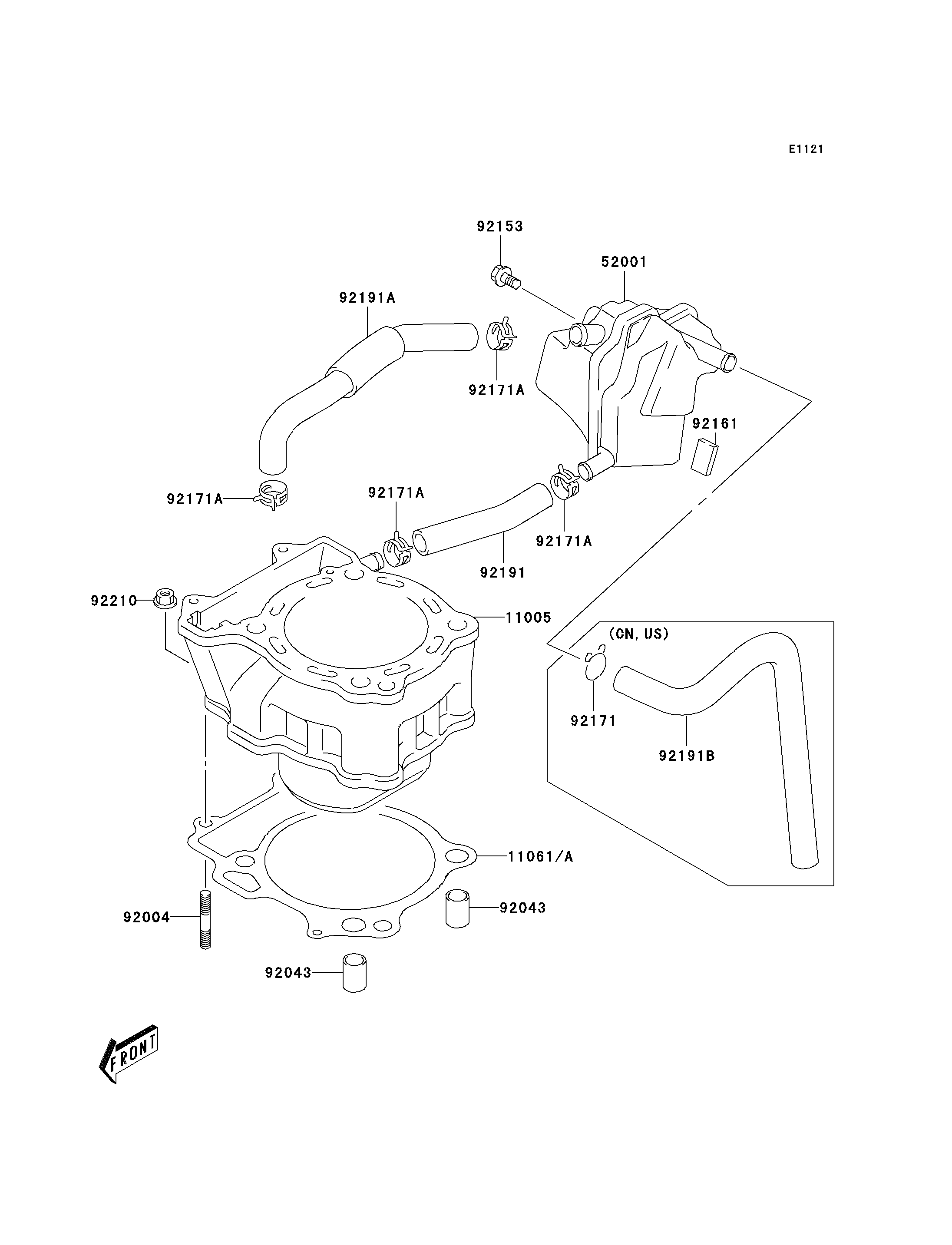

Parts Diagrams |
11005
11061A
52001
92004
92043
92043
92153
92161
92171
92171A
92171A
92171A
92171A
92191
92191A
92191B
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE | 11005 | 11005-S007 | 1 | ||
| GASKET | 11061A | 11061-S091 | 1 | ||
| TANK-OIL | 52001 | 52001-S008 | 1 | ||
| STUD | 92004 | 92004-S001 | 2 | ||
| PIN | 92043 | 92043-S003 | 2 | ||
| BOLT | 92153 | 92153-S143 | 1 | ||
| DAMPER,170X95X3.0 | 92161 | 92161-S014 | 1 | ||
| CLAMP | 92171 | 92171-S048 | 1 | ||
| CLAMP,BREATHER HOSE | 92171A | 92171-S087 | 4 | ||
| TUBE,BREATHER | 92191 | 92191-S067 | 1 | ||
| TUBE,BREATHER | 92191A | 92191-S068 | 1 | ||
| TUBE,BREATHER | 92191B | 92191-S081 | 1 | ||
| NUT | 92210 | 92210-S004 | 2 |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-OIL | |
| REF # | 52001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,170X95X3.0 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BREATHER HOSE | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
