Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

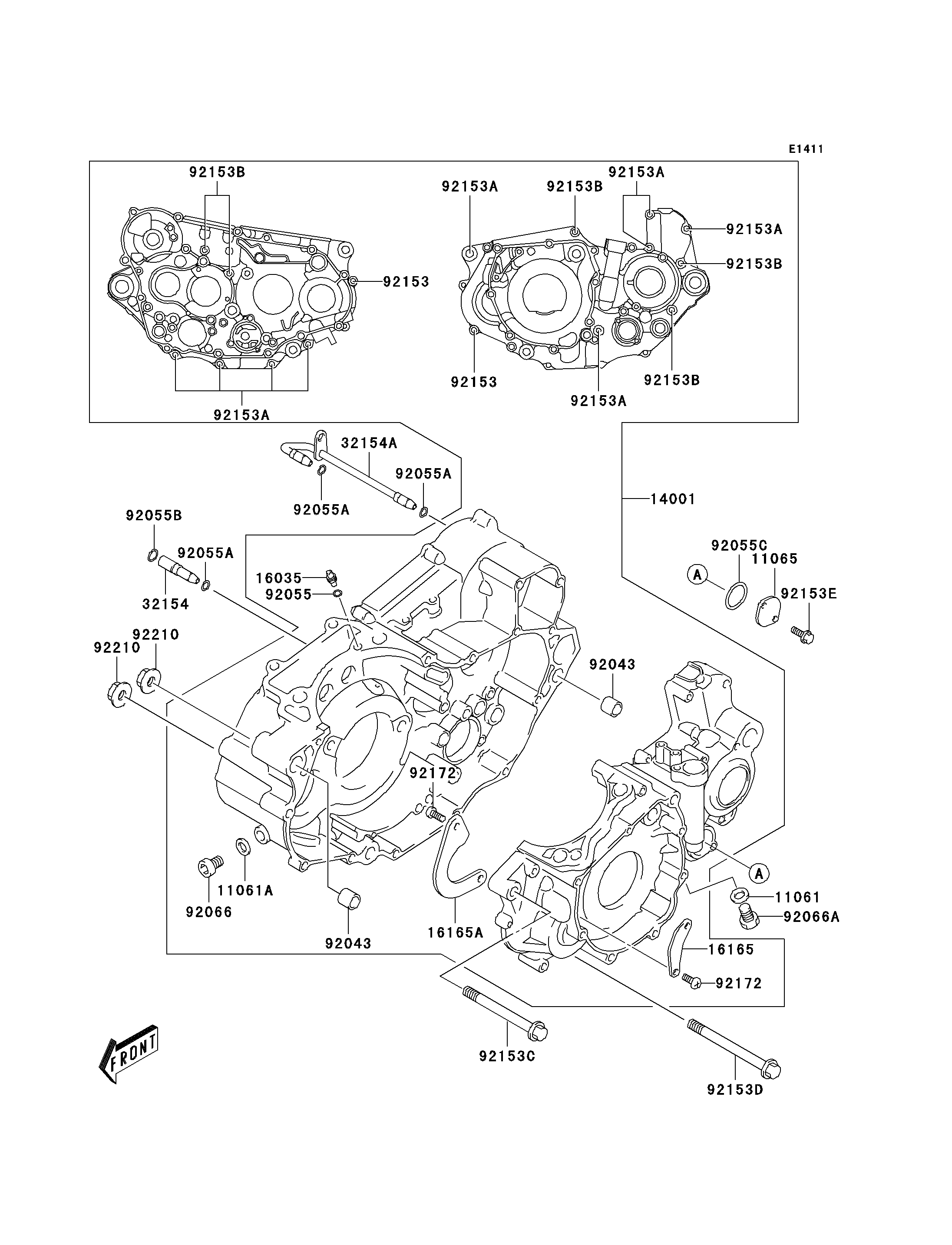

Parts Diagrams |
11061
11061A
11065
14001
16035
16165
16165A
32154
32154A
92043
92043
92055
92055A
92055A
92055A
92055B
92055C
92066
92066A
92153
92153
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153D
92153E
92172
92172
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,12X16X2 | 11061 | 11061-S005 | 1 | ||
GASKET,10X14X3.6 | 11061A | 11061-S021 | 1 | ||
CAP,NEUTRAL | 11065 | 11065-S053 | 1 | ||
SET-CRANKCASE | 14001 | 14001-S008 | 1 | ||
JET-AIR | 16035 | 16035-S004 | 1 | ||
SEPARATOR,CRANKCASE OIL | 16165 | 16165-S007 | 1 | ||
SEPARATOR,CRANKCASE OIL | 16165A | 16165-S008 | 1 | ||
PIPE | 32154 | 32154-S005 | 1 | ||
PIPE,OIL | 32154A | 32154-S007 | 1 | ||
PIN | 92043 | 92043-S003 | 2 | ||
RING-O,ID:4.0) | 92055 | 92055-S002 | 1 | ||
RING-O,ID:4.8 | 92055A | 92055-S003 | 3 | ||
RING-O,6.8X1.9 | 92055B | 92055-S053 | 1 | ||
RING-O,26.2X2.4 | 92055C | 92055-S055 | 1 | ||
PLUG | 92066 | 92066-S009 | 1 | ||
PLUG,OIL DRAIN | 92066A | 92066-S032 | 1 | ||
BOLT | 92153 | 92153-S006 | 2 | ||
BOLT | 92153A | 92153-S128 | 9 | ||
BOLT | 92153B | 92153-S247 | 5 | ||
BOLT,10X100 | 92153C | 92153-S269 | 1 | ||
BOLT,10X115 | 92153D | 92153-S334 | 1 | ||
BOLT | 92153E | 92153-S343 | 2 | ||
SCREW,6X12 | 92172 | 92172-S033 | 4 | ||
NUT | 92210 | 92210-S015 | 2 |
