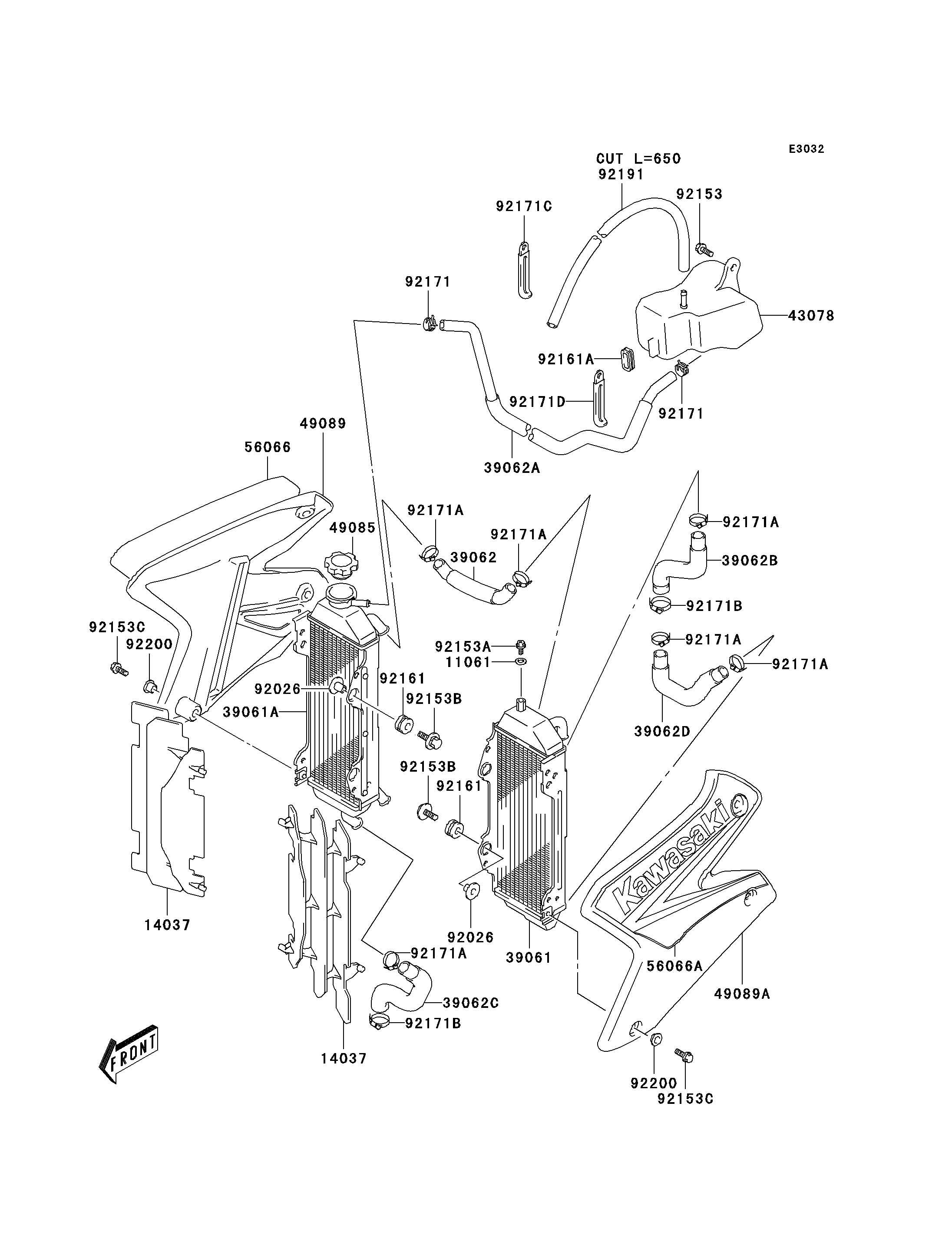

2003 KLX400R - Radiator(KLX400-B1)

DOWNLOAD PDF
SELECT A NEW PART
11061
14037
14037
39061
39061A
39062
39062A
39062B
39062C
39062D
43078
49085
49089
49089A
56066
56066A
92026
92026
92153
92153A
92153B
92153B
92153C
92153C
92161
92161
92161A
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171B
92171B
92171C
92171D
92191
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,6.4X11.5X0.8 11061 11061-S002 1
SCREEN 14037 14037-S001 2
RADIATOR-ASSY,LH 39061 39061-S006 1
RADIATOR-ASSY,RH 39061A 39061-S007 1
HOSE-COOLING,JOINT 39062 39062-S022 1
HOSE-COOLING,RESERVOIR TANK 39062A 39062-S023 1
HOSE-COOLING,RADIATOR INLET 39062B 39062-S024 1
HOSE-COOLING,RADIATOR OUTLET 39062C 39062-S025 1
HOSE-COOLING,RADIATOR LWR 39062D 39062-S026 1
RESERVOIR 43078 43078-S006 1
CAP-ASSY-PRESSURE 49085 49085-S004 1
SHROUD-ENGINE,RH,L.GREEN 49089 49089-S003-535 1
SHROUD-ENGINE,LH,L.GREEN 49089A 49089-S004-535 1
PATTERN,RH,WHT/GLD/BLK/GRN 56066 56066-S014-553 1
PATTERN,LH,WHT/GLD/BLK/GRN 56066A 56066-S015-553 1
SPACER 92026 92026-S123 4
BOLT 92153 92153-S011 1
BOLT,AIR VENT 92153A 92153-S055 1
BOLT,6X25 92153B 92153-S105 4
BOLT 92153C 92153-S144 6
DAMPER 92161 92161-S114 4
DAMPER,RESERVOIR TANK 92161A 92161-S115 1
CLAMP 92171 92171-S002 2
CLAMP 92171A 92171-S008 6
CLAMP,RADIATOR HOSE 92171B 92171-S088 2
CLAMP,RESERVOIR HOSE 92171C 92171-S116 1
CLAMP 92171D 92171-S132 1
TUBE,M.R.ORANGE 92191 92191-S088-500 1
WASHER 92200 92200-S078 6
