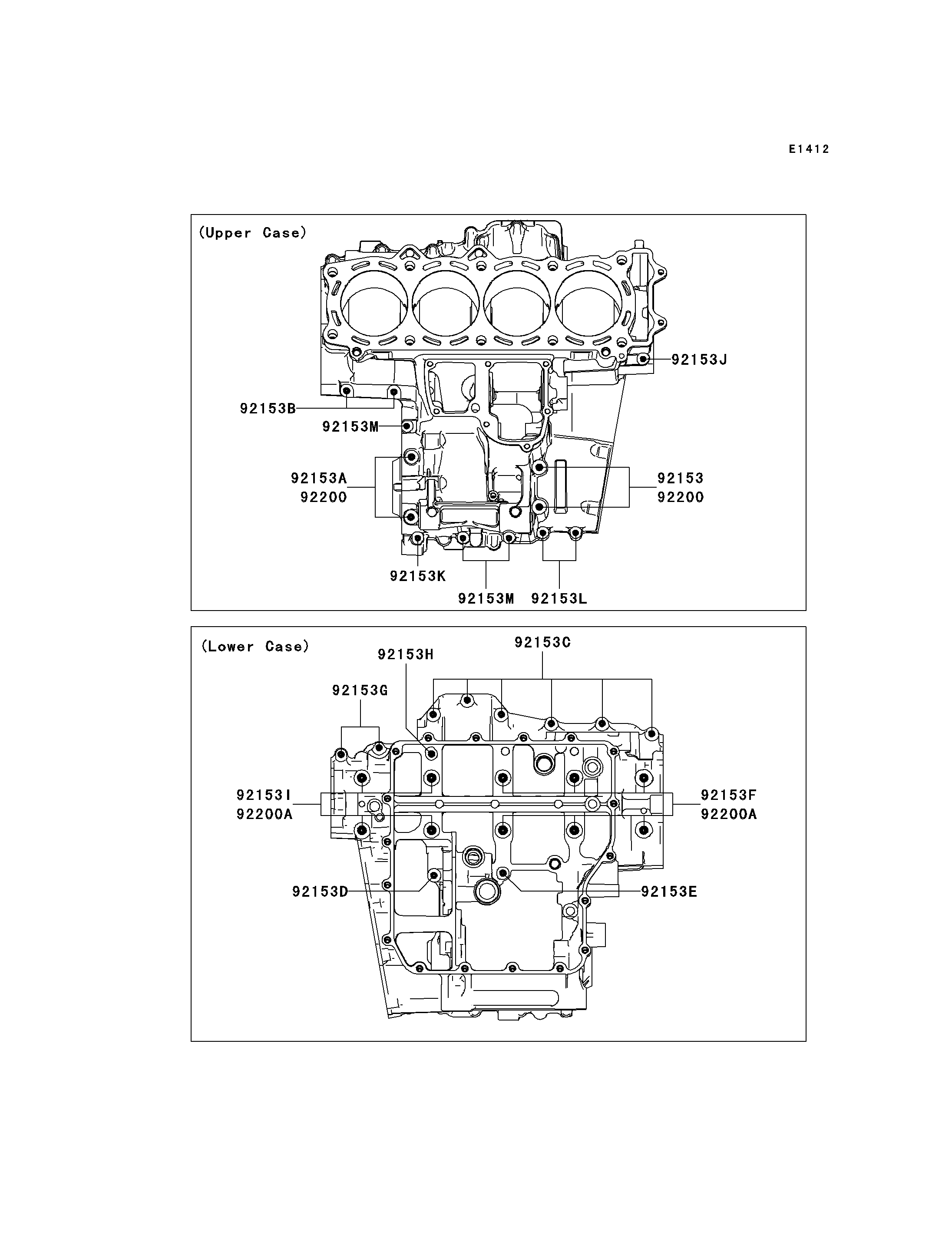

2008 Ninja® ZX™-14 - Crankcase Bolt Pattern
92153
92153A
92153B
92153C
92153D
92153E
92153F
92153G
92153H
92153I
92153J
92153K
92153L
92153M
92153M
92200
92200
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,FLANGED,8X80 | 92153 | 92153-1035 | 2 | ||
BOLT,FLANGED,8X70 | 92153A | 92153-1036 | 2 | ||
BOLT,FLANGED,7X65 | 92153B | 92153-1040 | 2 | ||
BOLT,FLANGED,7X45 | 92153C | 92153-1041 | 6 | ||
BOLT,FLANGED,7X50 | 92153D | 92153-1042 | 1 | ||
BOLT,FLANGED,7X85 | 92153E | 92153-1043 | 1 | ||
BOLT,FLANGED,10X90 | 92153F | 92153-1044 | 6 | ||
BOLT,FLANGED,7X60 | 92153G | 92153-1045 | 2 | ||
BOLT,FLANGED,7X110 | 92153H | 92153-1046 | 1 | ||
BOLT,FLANGED,10X120 | 92153I | 92153-1047 | 4 | ||
BOLT-FLANGED,6X65 | 92153J | 92153-1567 | 1 | ||
BOLT-FLANGED,6X50 | 92153K | 92153-1568 | 1 | ||
BOLT-FLANGED,6X25 | 92153L | 92153-1569 | 2 | ||
BOLT-FLANGED,6X40 | 92153M | 92153-1570 | 3 | ||
WASHER,8.2X16X1.6 | 92200 | 92200-0047 | 4 | ||
WASHER,10.5X19X2.3 | 92200A | 92200-0257 | 10 |
BOLT,FLANGED,8X80 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X70 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,7X65 | |
REF # | 92153B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,7X45 | |
REF # | 92153C |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,7X50 | |
REF # | 92153D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,7X85 | |
REF # | 92153E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X90 | |
REF # | 92153F |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,7X60 | |
REF # | 92153G |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,7X110 | |
REF # | 92153H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X120 | |
REF # | 92153I |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X65 | |
REF # | 92153J |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X50 | |
REF # | 92153K |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X25 | |
REF # | 92153L |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X40 | |
REF # | 92153M |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER,8.2X16X1.6 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.5X19X2.3 | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
