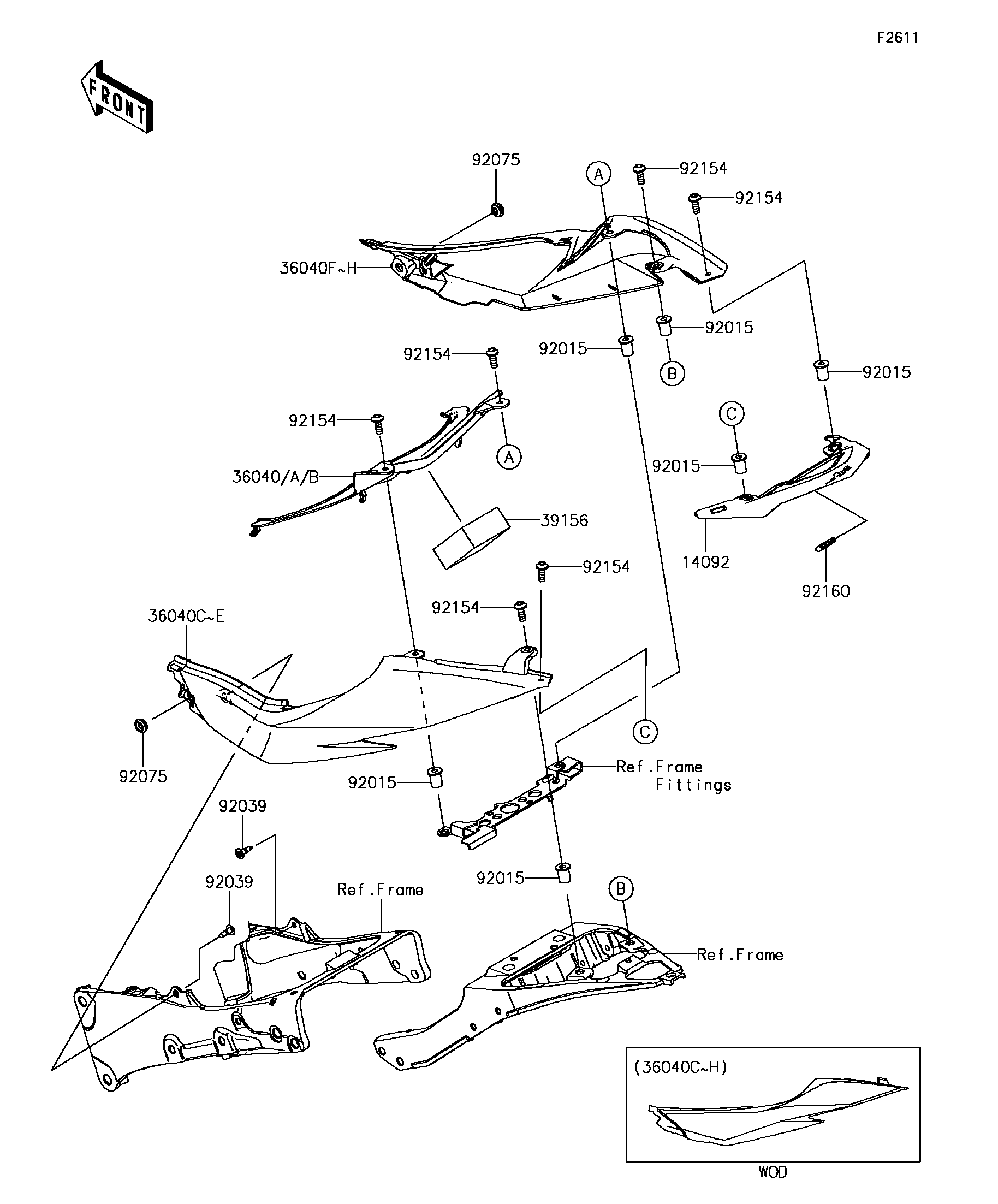

2017 Ninja ZX-6R - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
14092
36040A
36040D
36040G
39156
92015
92015
92015
92015
92015
92015
92039
92039
92075
92075
92154
92154
92154
92154
92154
92154
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,RR 14092 14092-0989 1
COVER-TAIL,CNT,P.B.WHITE 36040A 36040-0093-54X 1
COVER-TAIL,LH,P.B.WHITE 36040D 36040-0133-54X 1
COVER-TAIL,RH,P.B.WHITE 36040G 36040-0134-54X 1
PAD,CNT COVER 39156 39156-0529 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0068 2
DAMPER,6X16X7 92075 92075-1011 2
BOLT,SOCKET,5X16 92154 92154-0209 6
DAMPER 92160 92160-1190 1
