55020
55020A
92110
92153
92153A
92153B
92153C
92153C
92153D
92161
92200
92200A
92210
92210A

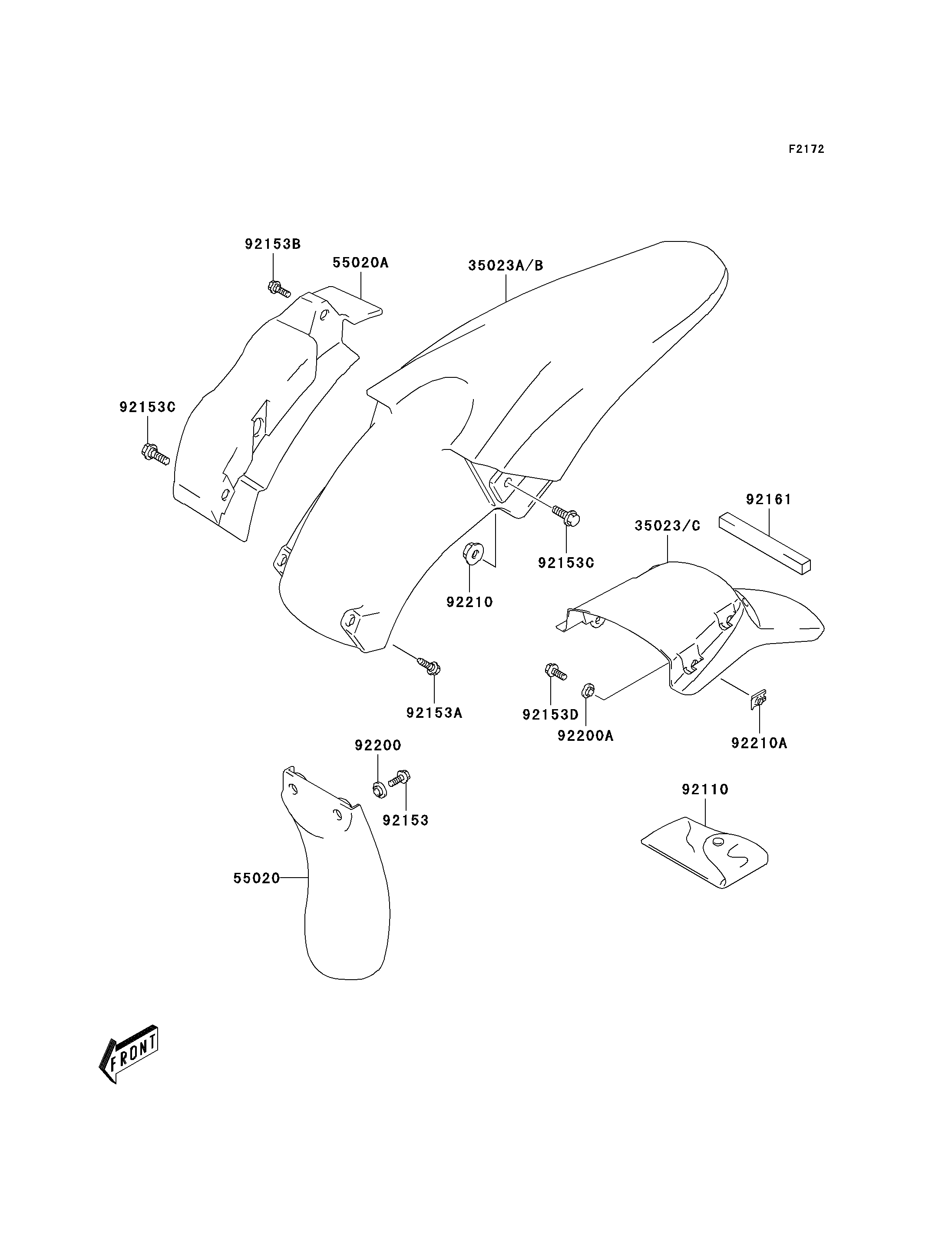

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,REAR FENDER,FR 55020 55020-S005 1
GUARD,FENDER 55020A 55020-S029 1
TOOL-WRENCH 92110 92110-S004 1
BOLT 92153 92153-S001 2
BOLT,6X16 92153A 92153-S044 2
BOLT 92153B 92153-S161 1
BOLT 92153C 92153-S196 3
BOLT 92153D 92153-S363 4
DAMPER 92161 92161-S143 1
WASHER 92200 92200-S074 2
WASHER 92200A 92200-S194 4
NUT 92210 92210-S054 2
NUT 92210A 92210-S138 4
FENDER-REAR,INNER 35023 35023-S014 1 US
FENDER-REAR,L.GREEN 35023A 35023-S015-535 1 US
FENDER-REAR,L.GREEN 35023B 35023-S017-535 1 CN
FENDER-REAR,INNER 35023C 35023-S018 1 CN
