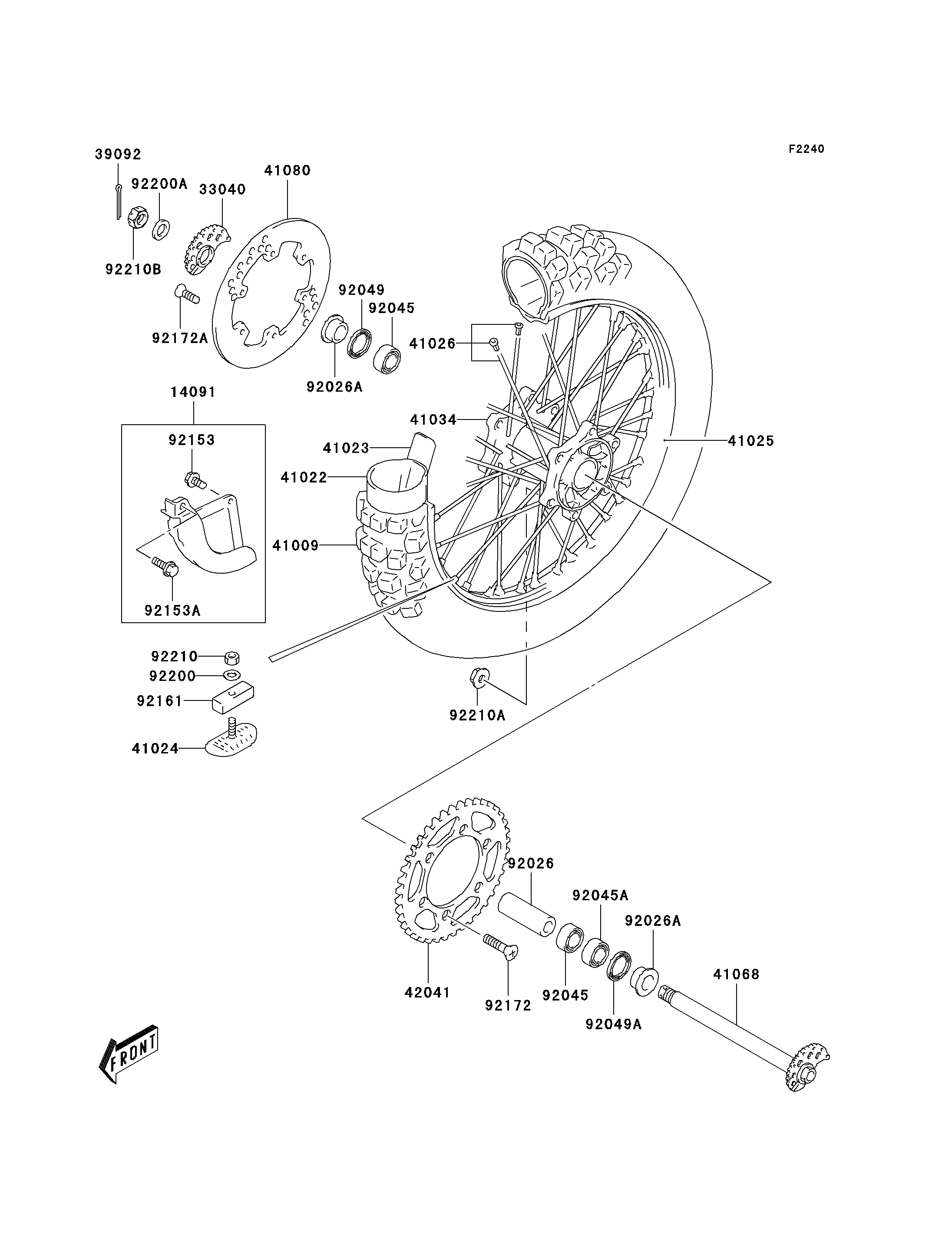

2003 KLX400R - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
14091
33040
39092
41009
41022
41023
41024
41025
41026
41034
41068
41080
42041
92026
92026A
92026A
92045
92045
92045A
92049
92049A
92153
92153A
92161
92172
92172A
92200
92200A
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,DISC 14091 14091-S100 1
ADJUSTER-CHAIN 33040 33040-S004 1
PIN-HAIR,REAR AXLE 39092 39092-S008 1
TIRE,120/90-18 65P(D) 41009 41009-S018 1
TUBE-TIRE 41022 41022-S009 1
BAND-RIM 41023 41023-S009 1
STOPPER-RIM 41024 41024-S003 1
RIM,2.15X18 41025 41025-S014 1
SPOKE-ASSY 41026 41026-S009 1
DRUM-ASSY 41034 41034-S008 1
AXLE,RR 41068 41068-S013 1
DISC,RR 41080 41080-S008 1
SPROCKET-HUB,47T 42041 42041-S009 1
SPACER 92026 92026-S133 1
SPACER 92026A 92026-S134 2
BEARING-BALL 92045 92045-S059 2
BEARING-BALL 92045A 92045-S060 1
SEAL-OIL,29X42X6 92049 92049-S009 1
SEAL-OIL,29X47X5 92049A 92049-S060 1
BOLT 92153 92153-S011 1
BOLT 92153A 92153-S013 1
DAMPER 92161 92161-S144 1
SCREW,SPROCKET 92172 92172-S111 6
SCREW,6X17.5 92172A 92172-S210 6
WASHER 92200 92200-S028 1
WASHER 92200A 92200-S201 1
NUT 92210 92210-S051 1
NUT 92210A 92210-S094 6
NUT 92210B 92210-S134 1
