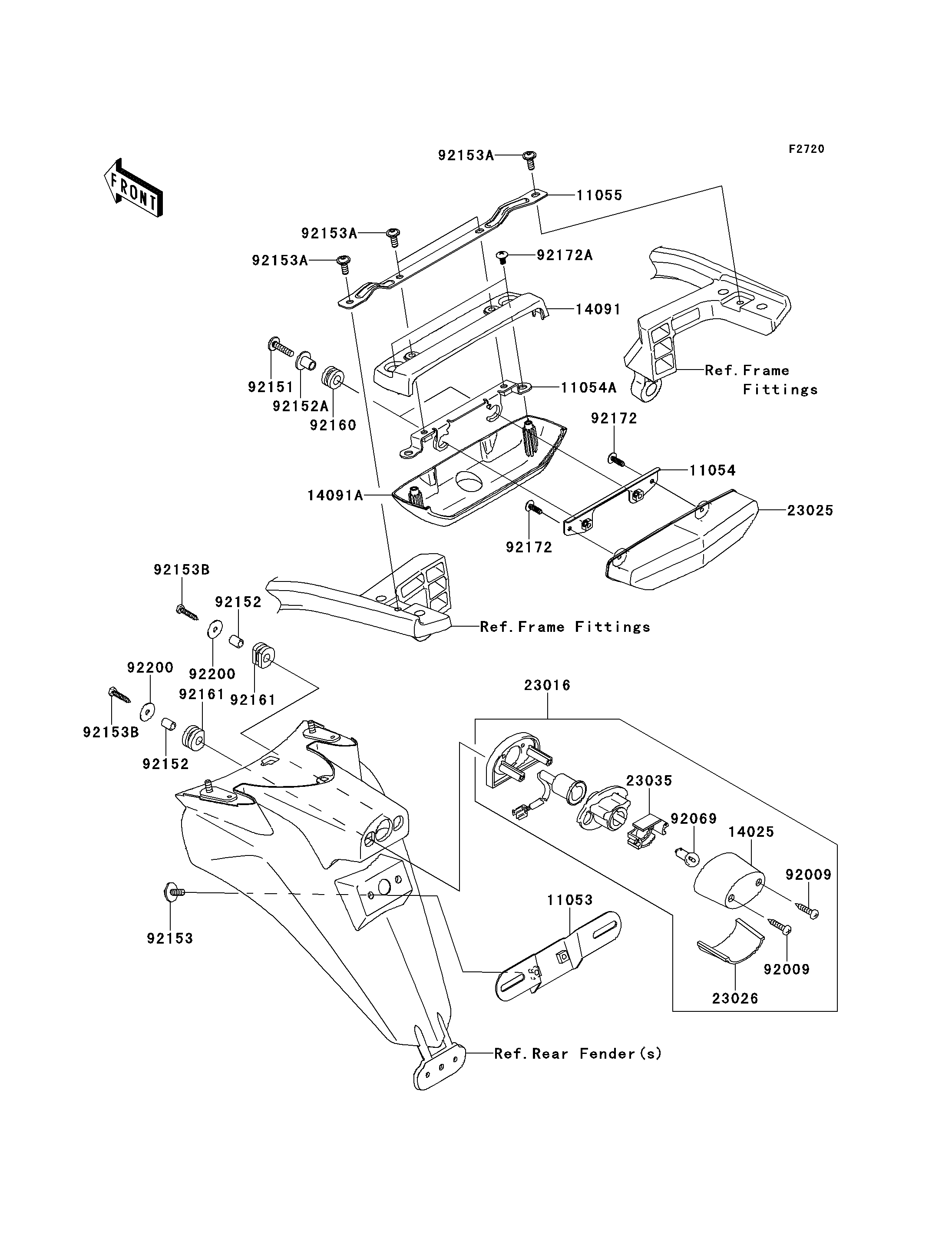

2008 Concours™ 14 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11054
11054A
11055
14025
14091
14091A
23016
23025
23026
23035
92009
92009
92069
92151
92152
92152
92152A
92153
92153A
92153A
92153A
92153B
92153B
92160
92161
92161
92172
92172
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11053 11053-0400 1
BRACKET,TAIL LAMP 11054 11054-0883 1
BRACKET 11054A 11054-1199 1
BRACKET,TAIL LAMP COVER 11055 11055-0323 1
COVER,LICENSE LAMP 14025 14025-1725 1
COVER,TAIL LAMP,UPP 14091 14091-0894 1
COVER,TAIL LAMP,LWR 14091A 14091-0895 1
LAMP-ASSY,LICENSE 23016 23016-1200 1
LAMP-TAIL 23025 23025-0035 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
SCREW,TAPPING,4X20 92009 92009-1378 2
BULB,12V 5W 92069 92069-1055 1
BOLT,SOCKET,6X25 92151 92151-1611 2
COLLAR,6X9X11.5 92152 92152-0372 2
COLLAR 92152A 92152-0666 2
BOLT,6X16 92153 92153-0684 2
BOLT,SOCKET,6X16 92153A 92153-0817 4
BOLT,TAPPING,5X25 92153B 92153-1424 2
DAMPER 92160 92160-1167 2
DAMPER 92161 92161-1313 2
SCREW,TAPPING,5X16 92172 92172-0175 2
SCREW,TAPPING,5X10 92172A 92172-1061 2
WASHER,5.5X20X1.2 92200 92200-0284 2
