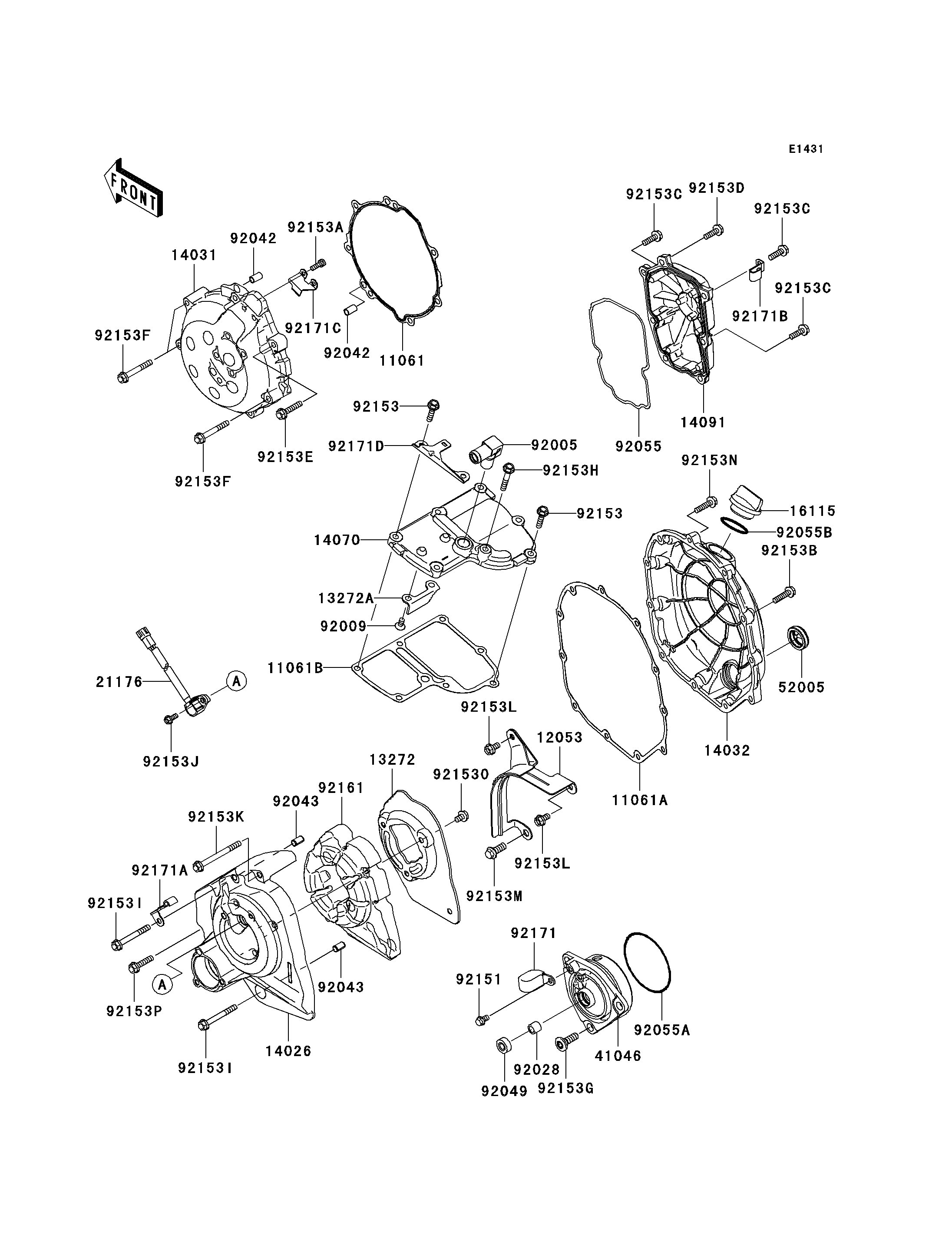

2008 Ninja® ZX™-14 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061A
11061B
11061B
12053
12053
13272
13272
13272A
13272A
14026
14026
14031
14031
14032
14032
14070
14070
14091
14091
16115
16115
21176
21176
41046
41046
52005
52005
92005
92005
92009
92009
92028
92028
92042
92042
92042
92042
92043
92043
92043
92043
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92151
92151
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92153C
92153C
92153C
92153C
92153D
92153D
92153E
92153E
92153F
92153F
92153F
92153F
92153G
92153G
92153H
92153H
92153I
92153I
92153I
92153I
92153J
92153J
92153K
92153K
92153L
92153L
92153L
92153L
92153M
92153M
92153N
92153N
92153O
92153O
92153P
92153P
92161
92161
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171D
92171D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVER 11061 11061-0197 1
GASKET,CLUTCH COVER 11061A 11061-0198 1
GASKET,BREATHER BODY 11061B 11061-0200 1
GUIDE-CHAIN 12053 12053-0097 1
PLATE 13272 13272-0037 1
PLATE 13272A 13272-0155 1
COVER-CHAIN 14026 14026-0062 1
COVER-GENERATOR 14031 14031-0095 1
COVER-CLUTCH 14032 14032-0110 1
BODY-BREATHER 14070 14070-0003 1
COVER,PULSER 14091 14091-0896 1
CAP-OIL FILLER 16115 16115-1009 1
SENSOR,SPEED 21176 21176-0049 1
HOUSING-BEARING 41046 41046-0021 1
GAUGE 52005 52005-0024 1
FITTING 92005 92005-0044 1
SCREW,6X12 92009 92009-1880 2
BUSHING,8X12X10 92028 92028-1750 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,6.2X8X14 92043 92043-1263 2
SEAL-OIL 92049 92049-1566 1
RING-O,PULSER COVER 92055 92055-0086 1
RING-O,75X2.5 92055A 92055-0087 1
RING-O,31.7X2.4 92055B 92055-049 1
BOLT,FLANGED,6X10 92151 92151-1233 1
BOLT,6X25 92153 92153-1071 6
BOLT,SOCKET,5X14 92153A 92153-1286 2
BOLT-FLANGED,6X25 92153B 92153-1569 10
BOLT-FLANGED,6X20 92153C 92153-1572 6
BOLT-FLANGED,6X20 92153D 92153-1573 1
BOLT-FLANGED,6X30 92153E 92153-1574 4
BOLT-FLANGED,6X45 92153F 92153-1575 3
BOLT,SOCKET,8X25 92153G 92153-1578 3
BOLT-FLANGED,6X35 92153H 92153-1579 1
BOLT-FLANGED,6X52 92153I 92153-1581 2
BOLT-FLANGED,5X12 92153J 92153-1582 1
BOLT-FLANGED,6X68 92153K 92153-1583 1
BOLT,FLANGED,6X12 92153L 92153-1596 2
BOLT,FLANGED-SMALL,8X20 92153M 92153-1682 1
BOLT,FLANGED,6X25 92153N 92153-1719 1
BOLT,FLANGED,6X10 92153O 92153-1925 4
BOLT,FLANGED,6X28 92153P 92153-1951 1
DAMPER,CHAIN COVER 92161 92161-0511 1
CLAMP 92171 92171-0594 1
CLAMP 92171A 92171-0688 1
CLAMP 92171B 92171-0761 1
CLAMP 92171C 92171-0768 1
CLAMP 92171D 92171-0769 1
