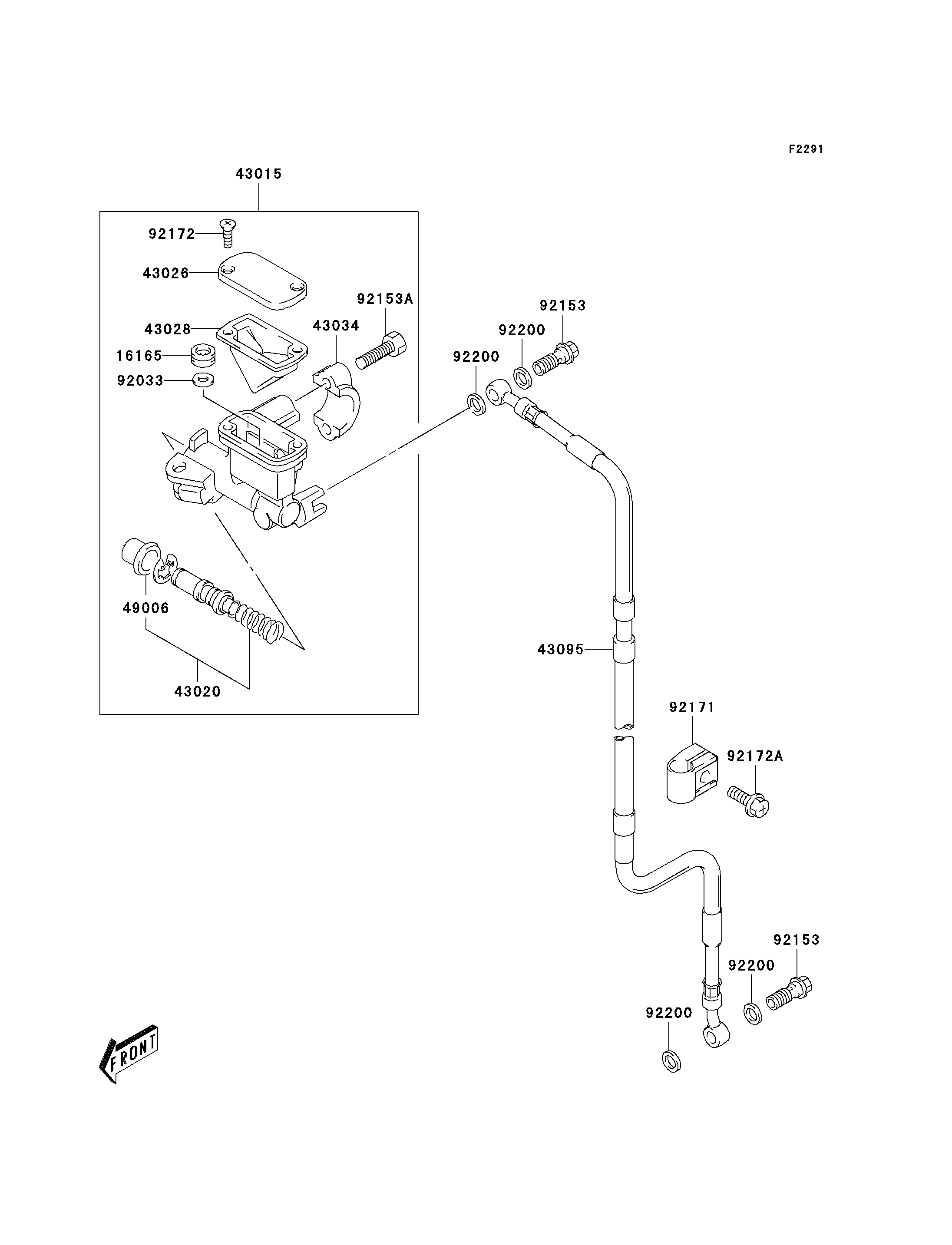

Parts Diagrams |
16165
43015
43020
43026
43028
43034
43095
49006
92033
92153
92153
92153A
92171
92172
92172A
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEPARATOR | 16165 | 16165-S011 | 1 | ||
| CYLINDER-ASSY-MASTER | 43015 | 43015-S012 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-S008 | 1 | ||
| CAP-BRAKE | 43026 | 43026-S009 | 1 | ||
| DIAPHRAGM | 43028 | 43028-S014 | 1 | ||
| HOLDER-BRAKE | 43034 | 43034-S003 | 1 | ||
| HOSE-BRAKE | 43095 | 43095-S015 | 1 | ||
| BOOT | 49006 | 49006-S034 | 1 | ||
| RING-SNAP | 92033 | 92033-S047 | 1 | ||
| BOLT | 92153 | 92153-S053 | 2 | ||
| BOLT | 92153A | 92153-S172 | 2 | ||
| CLAMP,FRONT BRAKE HOSE | 92171 | 92171-S057 | 1 | ||
| SCREW,RESERVOIR CAP | 92172 | 92172-S054 | 2 | ||
| SCREW,COOLING FAN COVER | 92172A | 92172-S142 | 1 | ||
| WASHER,10X15X1.5 | 92200 | 92200-S014 | 4 |
