Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

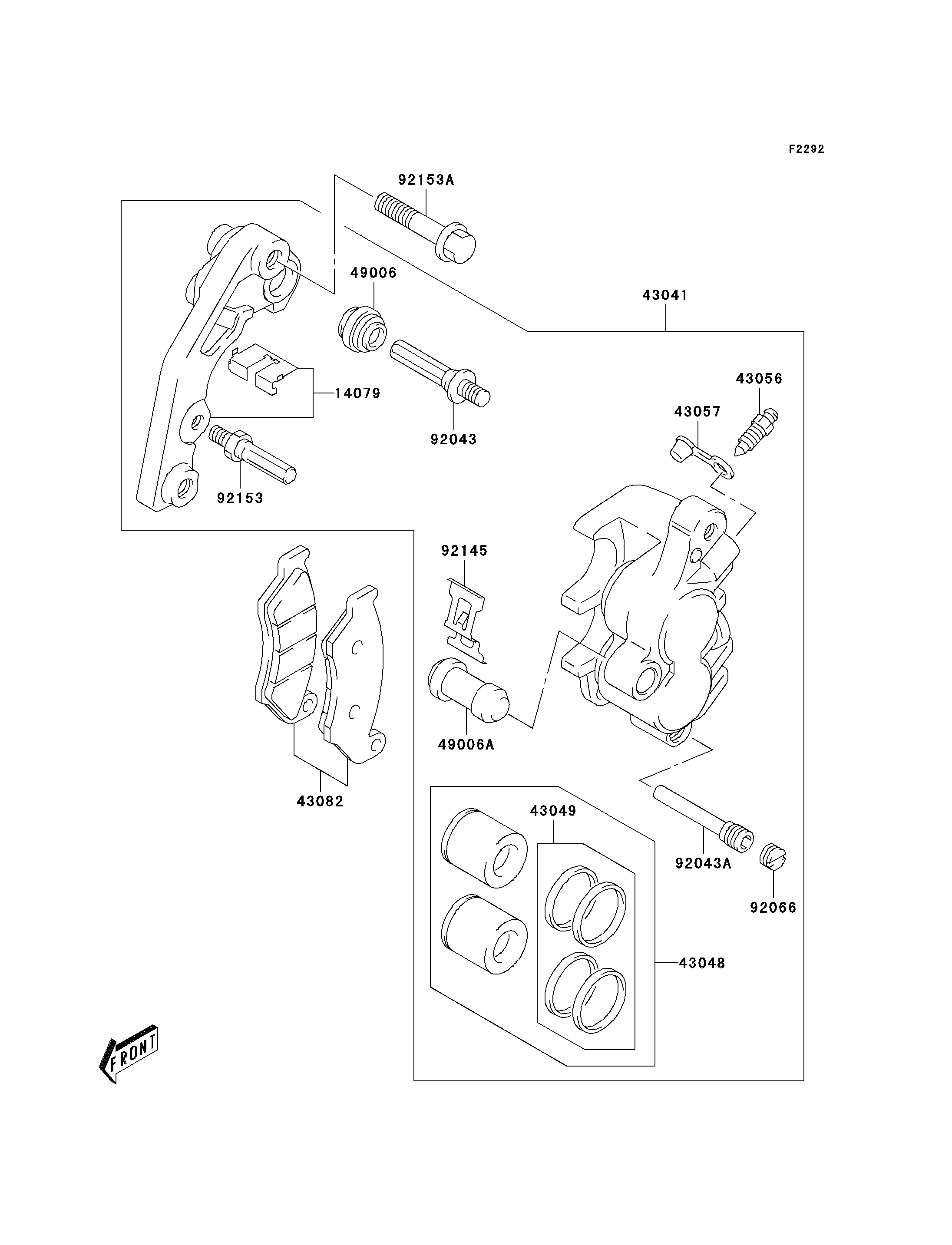

14079
43041
43048
43049
43056
43057
43082
49006
49006A
92043
92043A
92066
92145
92153
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY 14079 14079-S004 1
CALIPER-ASSY,FR 43041 43041-S012 1
PISTON-CALIPER 43048 43048-S006 1
PACKING 43049 43049-S012 1
BREATHER-BRAKE 43056 43056-S002 1
CAP-BREATHER,BLEEDER 43057 43057-S002 1
PAD-ASSY-BRAKE 43082 43082-S011 1
BOOT 49006 49006-S006 1
BOOT 49006A 49006-S007 1
PIN 92043 92043-S015 1
PIN,HANGER 92043A 92043-S017 1
PLUG 92066 92066-S037 1
SPRING,PAD 92145 92145-S135 1
BOLT 92153 92153-S118 1
BOLT,8X40 92153A 92153-S354 2
