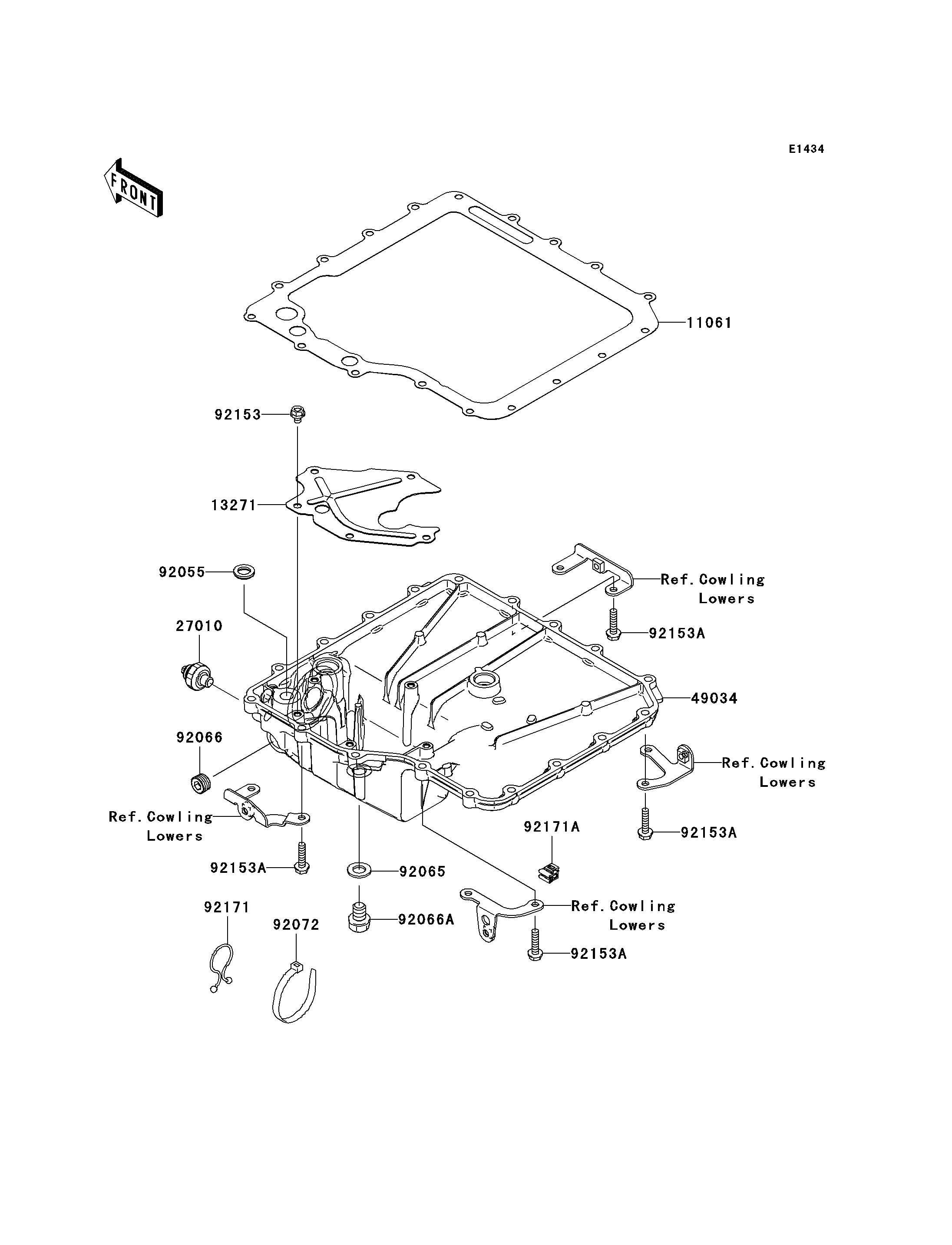

Parts Diagrams |
11061
13271
27010
49034
92055
92065
92066
92066A
92072
92153
92153A
92153A
92153A
92153A
92171
92171A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PAN | 11061 | 11061-0199 | 1 | ||
| PLATE | 13271 | 13271-0868 | 1 | ||
| SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
| PAN-OIL | 49034 | 49034-0017 | 1 | ||
| RING-O,19.5MM | 92055 | 92055-077 | 1 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
| PLUG | 92066 | 92066-0064 | 1 | ||
| PLUG,12X15 | 92066A | 92066-0079 | 1 | ||
| BAND,L=200 | 92072 | 92072-0106 | 1 | ||
| BOLT,FLANGED,6X8 | 92153 | 92153-1530 | 5 | ||
| BOLT-FLANGED,6X25 | 92153A | 92153-1569 | 18 | ||
| CLAMP | 92171 | 92171-1185 | 1 | ||
| CLAMP | 92171A | 92171-1811 | 1 |
| GASKET,OIL PAN | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,OIL PRESSURE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAN-OIL | |
| REF # | 49034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,19.5MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,12X22X2 | |
| REF # | 92065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,12X15 | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=200 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X8 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
