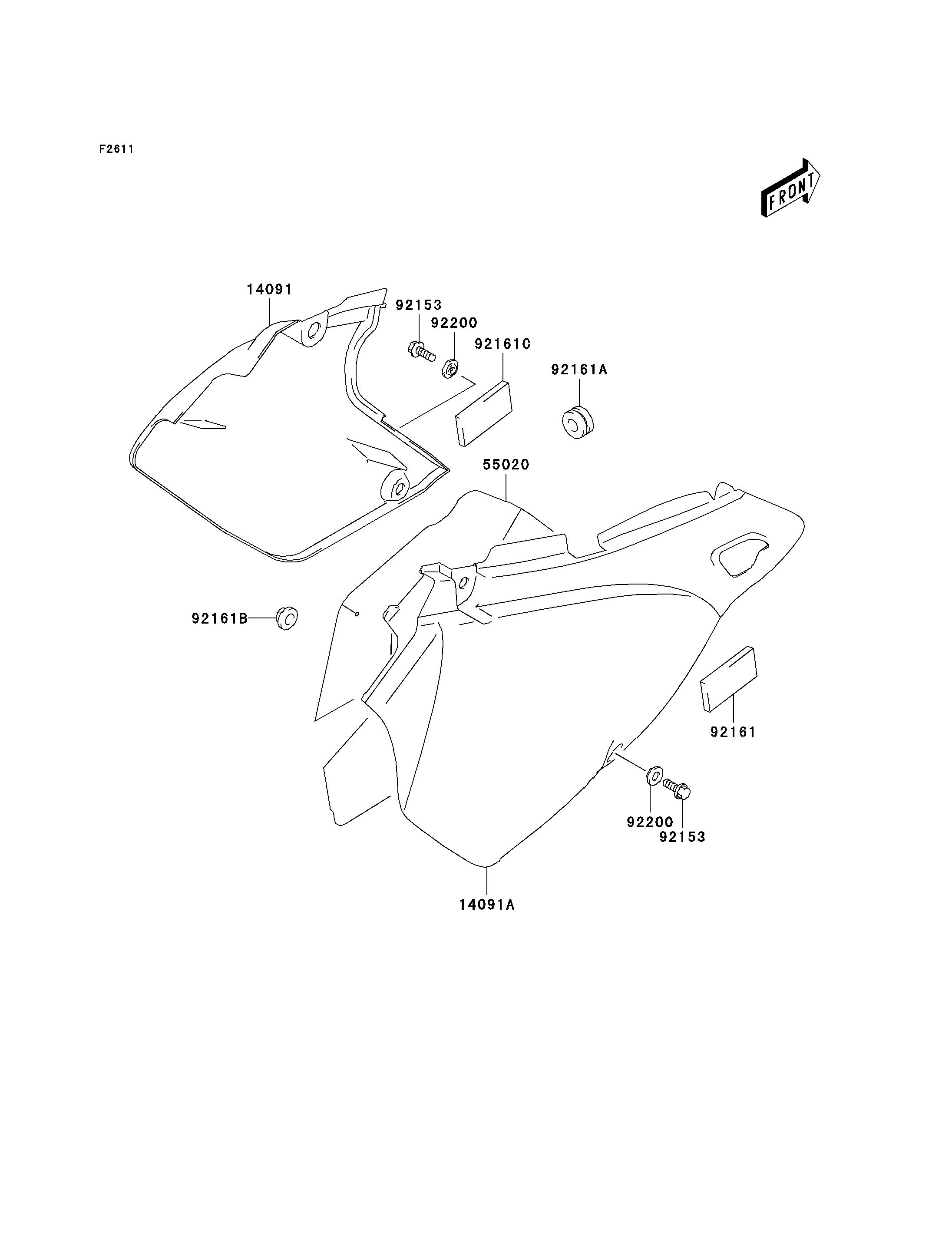

14091
14091A
55020
92153
92153
92161
92161A
92161B
92161C
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FRAME,LH,S.WHITE 14091 14091-S107-533 1
COVER,FRAME,RH,S.WHITE 14091A 14091-S111-533 1
GUARD,FRAME COVER,RH 55020 55020-S028 1
BOLT 92153 92153-S001 2
DAMPER,FRAME COVER 92161 92161-S122 1
DAMPER,FRAME COVER,RH 92161A 92161-S135 1
DAMPER,MUFFLER 92161B 92161-S136 1
DAMPER,FRAME COVER,LH 92161C 92161-S137 1
WASHER 92200 92200-S192 2
