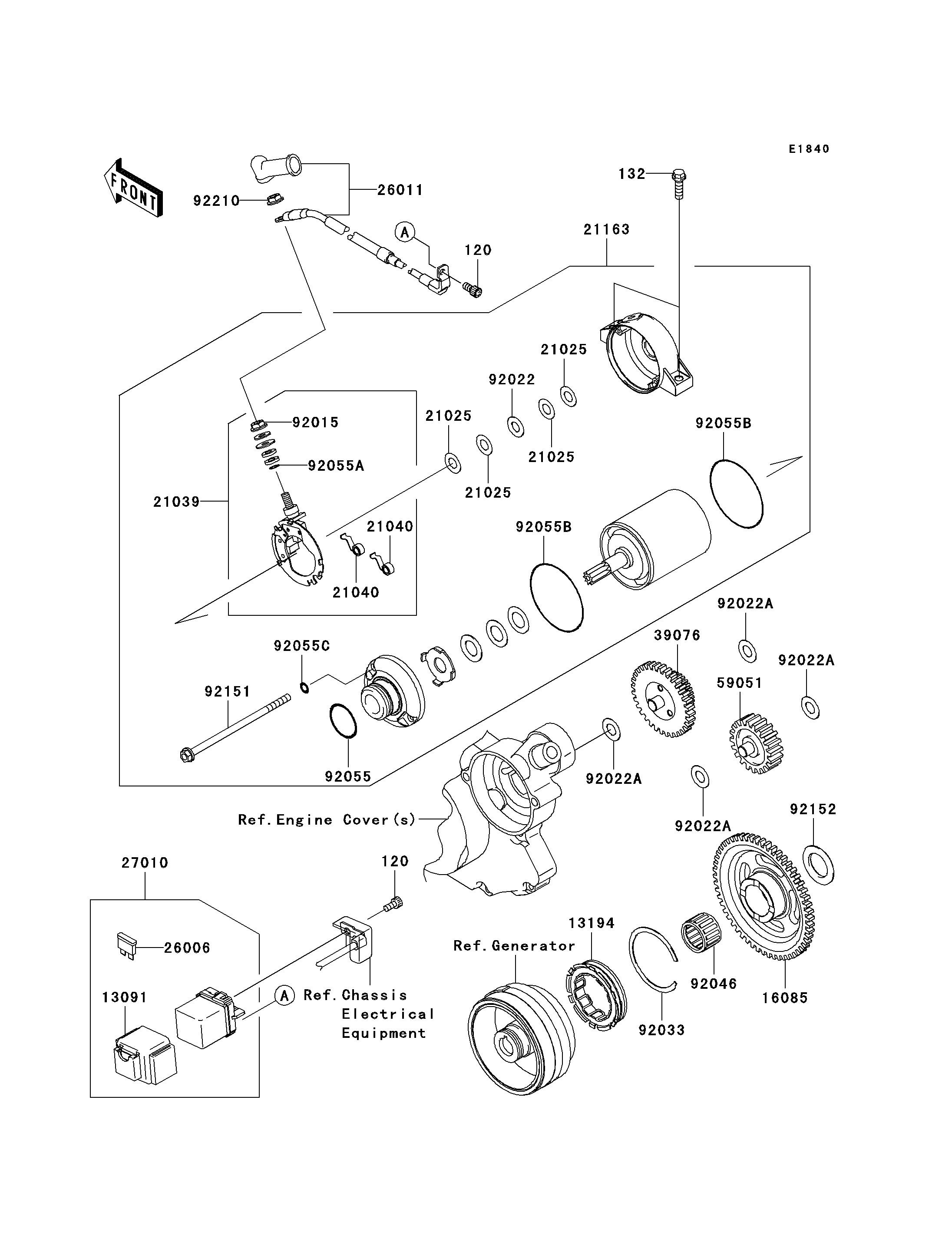

2012 KLX450R (Australian) - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
13091
13194
16085
21025
21025
21025
21025
21039
21040
21040
21163
26006
26011
27010
39076
59051
92015
92022
92022A
92022A
92022A
92022A
92033
92046
92055
92055A
92055B
92055B
92055C
92151
92152
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120CB0510 2
BOLT-FLANGED-SMALL,6X20 132 132BC0620 2
HOLDER 13091 13091-1992 1
CLUTCH-ONEWAY 13194 13194-0008 1
GEAR 16085 16085-0122 1
WASHER,9.1X18X0.2 21025 21025-011 AR
BRUSH 21039 21039-0006 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-0038 1
FUSE,BLADE,20A,YELLOW 26006 26006-1051 1
WIRE-LEAD 26011 26011-0133 1
SWITCH 27010 27010-0004 1
LIMITER 39076 39076-0012 1
GEAR-SPUR,IDLER 59051 59051-0074 1
NUT,STARTER MOTOR 92015 92015-1476 1
WASHER,9.1X18X0.8 92022 92022-1132 1
WASHER,10.2X20X0.5 92022A 92022-1649 4
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,K22X28X17V1 92046 92046-0026 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O 92055B 92055-1550 2
RING-O 92055C 92055-1551 2
BOLT 92151 92151-1158 2
COLLAR,22X27.5X4.1 92152 92152-0515 1
NUT,6MM 92210 92210-0188 1
