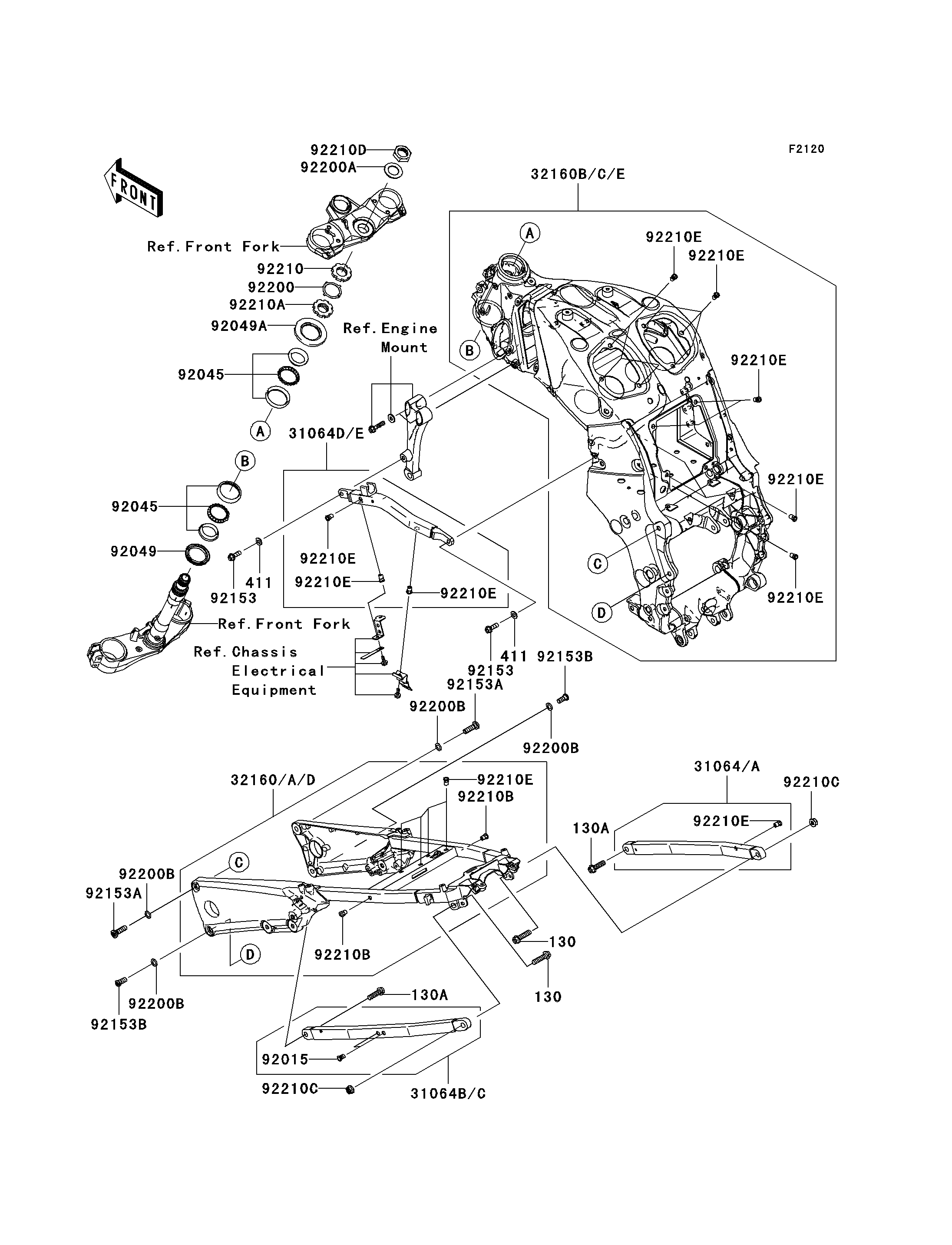

Parts Diagrams |
130
130
130A
130A
411
411
31064
31064B
31064D
32160
32160B
92015
92045
92045
92049
92049A
92153
92153
92153A
92153A
92153B
92153B
92200
92200A
92200B
92200B
92200B
92200B
92210
92210A
92210B
92210B
92210C
92210C
92210D
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,10X40 | 130 | 130BA1040 | 2 | ||
BOLT-FLANGED,10X35 | 130A | 130BB1035 | 2 | ||
WASHER-PLAIN | 411 | 411AA0800 | 2 | ||
PIPE-COMP,RR,RH,BLACK | 31064 | 31064-0045-18R | 1 | ||
PIPE-COMP,RR,LH,BLACK | 31064B | 31064-0065-18R | 1 | ||
PIPE-COMP,SUB FRAME,LH,BLACK | 31064D | 31064-0099-18R | 1 | ||
FRAME-COMP,RR,BLACK | 32160 | 32160-0297-18R | 1 | ||
FRAME-COMP,FR,BLACK | 32160B | 32160-0305-18R | 1 | ||
NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 2 | ||
BEARING-BALL,SF07A17PX1V1 | 92045 | 92045-1384 | 2 | ||
SEAL-OIL,DS35X55X4 | 92049 | 92049-0022 | 1 | ||
SEAL-OIL,XMH 43 75 6.4J | 92049A | 92049-1382 | 1 | ||
BOLT,FLANGED,8X25 | 92153 | 92153-1768 | 2 | ||
BOLT,SOCKET,10X35 | 92153A | 92153-1904 | 2 | ||
BOLT,SOCKET,10X22 | 92153B | 92153-1905 | 2 | ||
WASHER | 92200 | 92200-0281 | 1 | ||
WASHER,25.5X42X2.3 | 92200A | 92200-0282 | 1 | ||
WASHER,11X18X1 | 92200B | 92200-0324 | 4 | ||
NUT,35MM | 92210 | 92210-0095 | 1 | ||
NUT,35MM | 92210A | 92210-0096 | 1 | ||
NUT,POP,6MM,L=16.5 | 92210B | 92210-0324 | 2 | ||
NUT,LOCK,FLANGED,10MM | 92210C | 92210-1139 | 2 | ||
NUT,25MM | 92210D | 92210-1334 | 1 | ||
NUT,POP,6MM,L=15 | 92210E | 92210-1397 | 20 |
