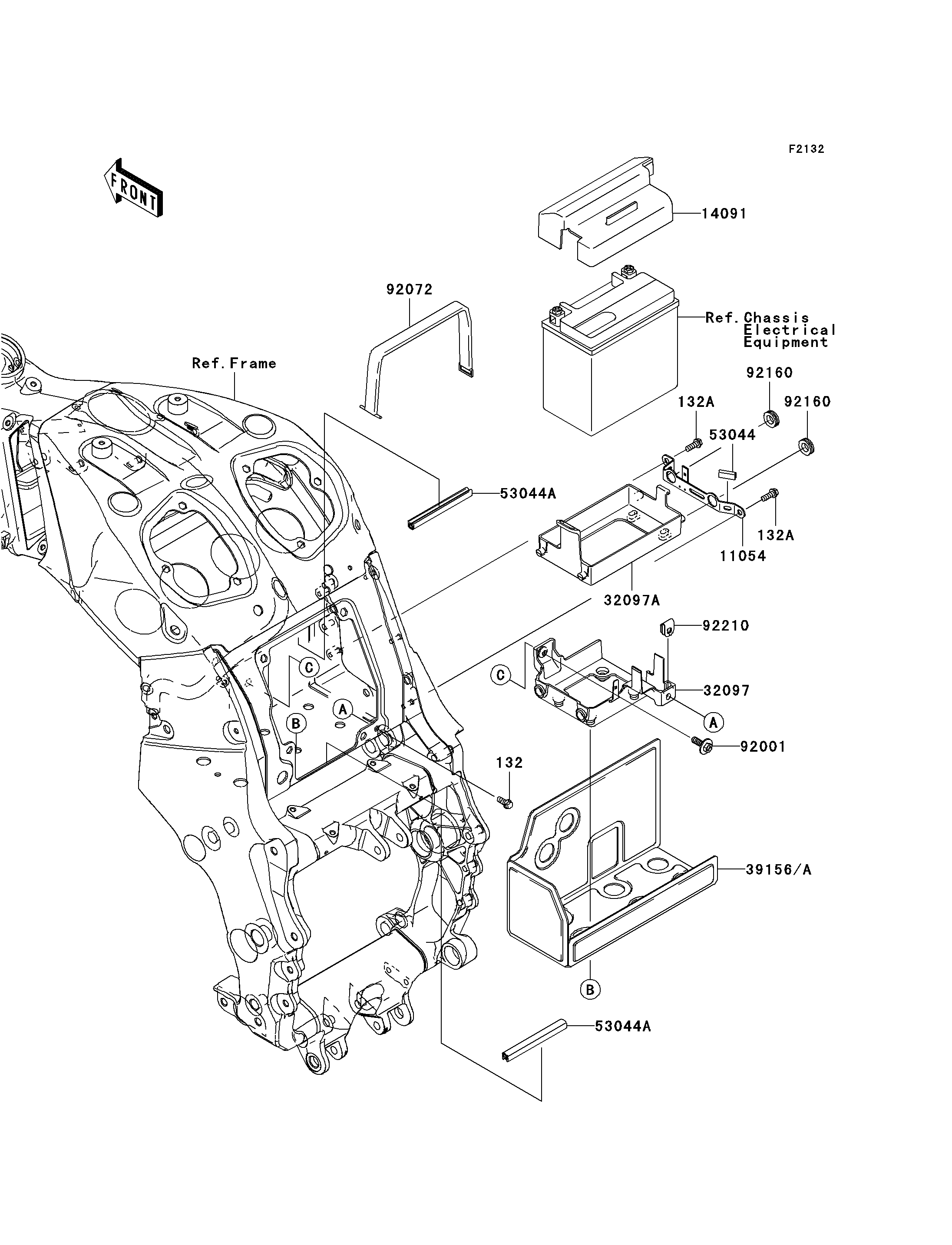

132
132A
132A
11054
14091
32097
32097A
39156
53044
53044A
53044A
92001
92072
92160
92160
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BA0614 1
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 2
BRACKET,BATTERY 11054 11054-0633 1
COVER,BATTERY,UPP 14091 14091-0533 1
CASE-BATTERY 32097 32097-0012 1
CASE-BATTERY 32097A 32097-0013 1
PAD,BATTERY,INNER 39156 39156-0143 1
TRIM,L=20 53044 53044-0021 1
TRIM,L=100 53044A 53044-1200 2
BOLT,UPSET-WP,6X22 92001 92001-1774 1
BAND,L=290 92072 92072-1377 1
DAMPER 92160 92160-1278 2
NUT,6MM 92210 92210-0277 1
