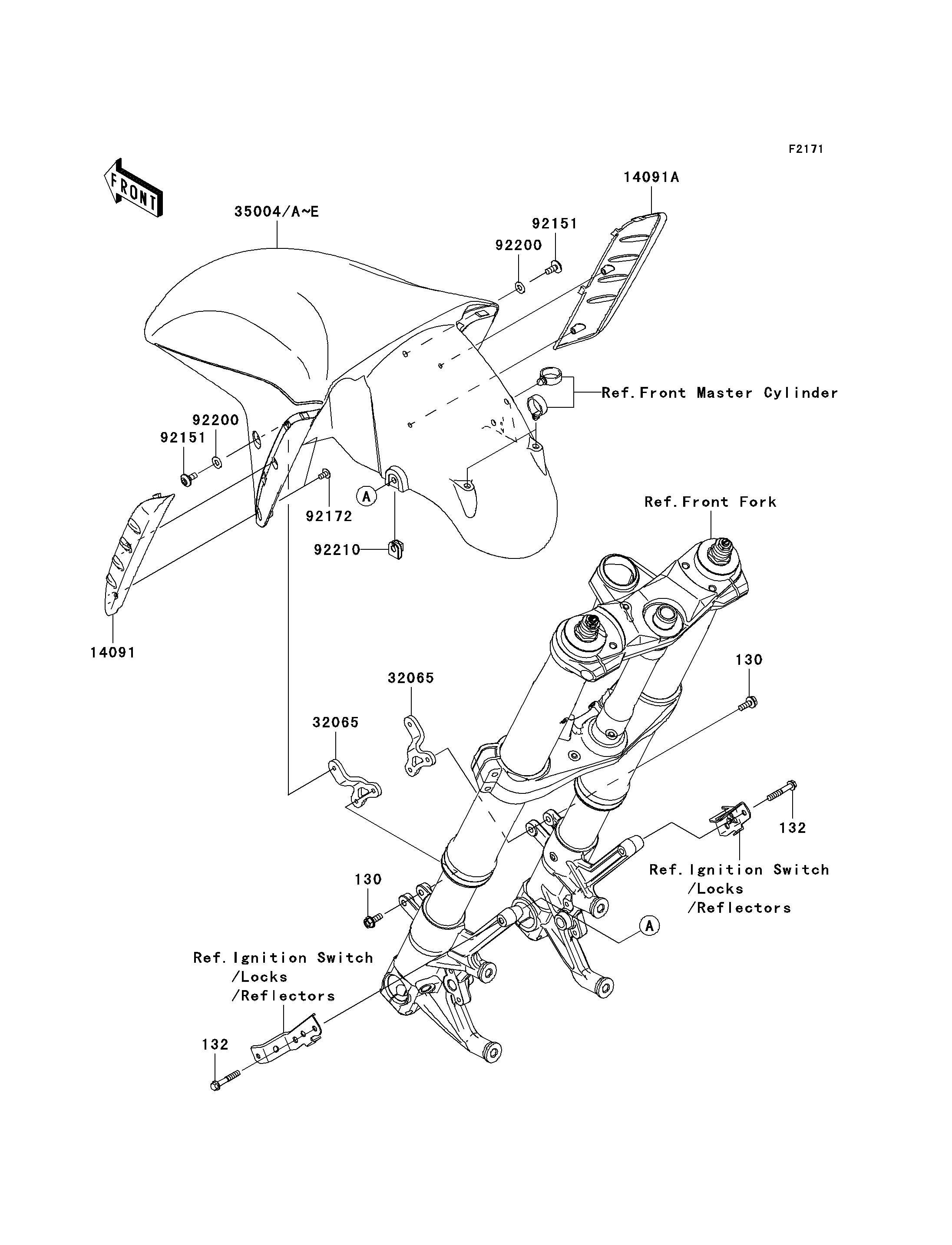

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

130
130
132
132
14091
14091A
32065
32065
35004C
92151
92151
92172
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 4
BOLT-FLANGED-SMALL,6X35 132 132BB0635 2
COVER,FRONT FENDER,LH 14091 14091-0598 1
COVER,FRONT FENDER,RH 14091A 14091-0599 1
BRACKET-FENDER 32065 32065-0020 2
FENDER-FRONT,M.M.S.BLUE 35004C 35004-0089-19A 1
BOLT,SOCKET,6X14 92151 92151-1654 2
SCREW,TAPPING,5X10 92172 92172-0262 4
WASHER,6.5X14X1 92200 92200-1388 2
NUT,6MM 92210 92210-0277 2
FENDER-FRONT,SILVER 35004A 35004-0089-17M 1 CAUS
