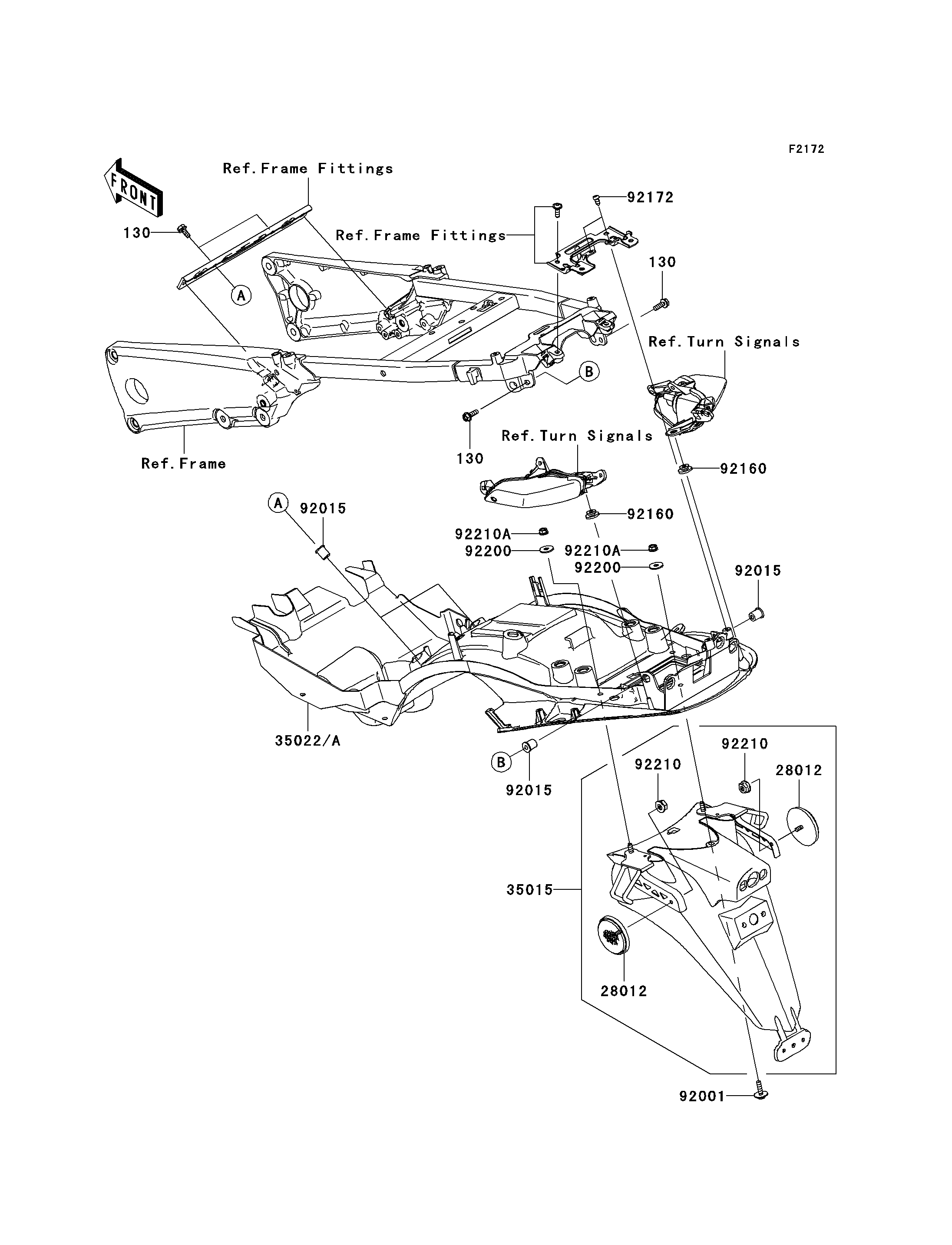

Parts Diagrams |
130
130
130
28012
28012
35015
92001
92015
92015
92015
92160
92160
92172
92200
92200
92210
92210
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X18 | 130 | 130BA0618 | 4 | ||
REFLECTOR-REFLEX | 28012 | 28012-0002 | 2 | ||
FLAP-COMP | 35015 | 35015-0016 | 1 | ||
BOLT,UPSET-WP,6X22 | 92001 | 92001-1774 | 1 | ||
NUT | 92015 | 92015-1700 | 4 | ||
DAMPER | 92160 | 92160-1613 | 2 | ||
SCREW,TAPPING,5X12 | 92172 | 92172-0239 | 2 | ||
WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 3 | ||
NUT,FLANGED,5MM | 92210 | 92210-0007 | 2 | ||
NUT,LOCK,FLANGED,6MM | 92210A | 92210-0303 | 3 | ||
FENDER-COMP-REAR,FR | 35022 | 35022-0050 | 1 | CNUS | |
FENDER-COMP-REAR,FR | 35022A | 35022-0051 | 1 | CA |
BOLT-FLANGED,6X18 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX | |
REF # | 28012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FLAP-COMP | |
REF # | 35015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,UPSET-WP,6X22 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X12 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,6MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
FENDER-COMP-REAR,FR | |
REF # | 35022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
FENDER-COMP-REAR,FR | |
REF # | 35022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
