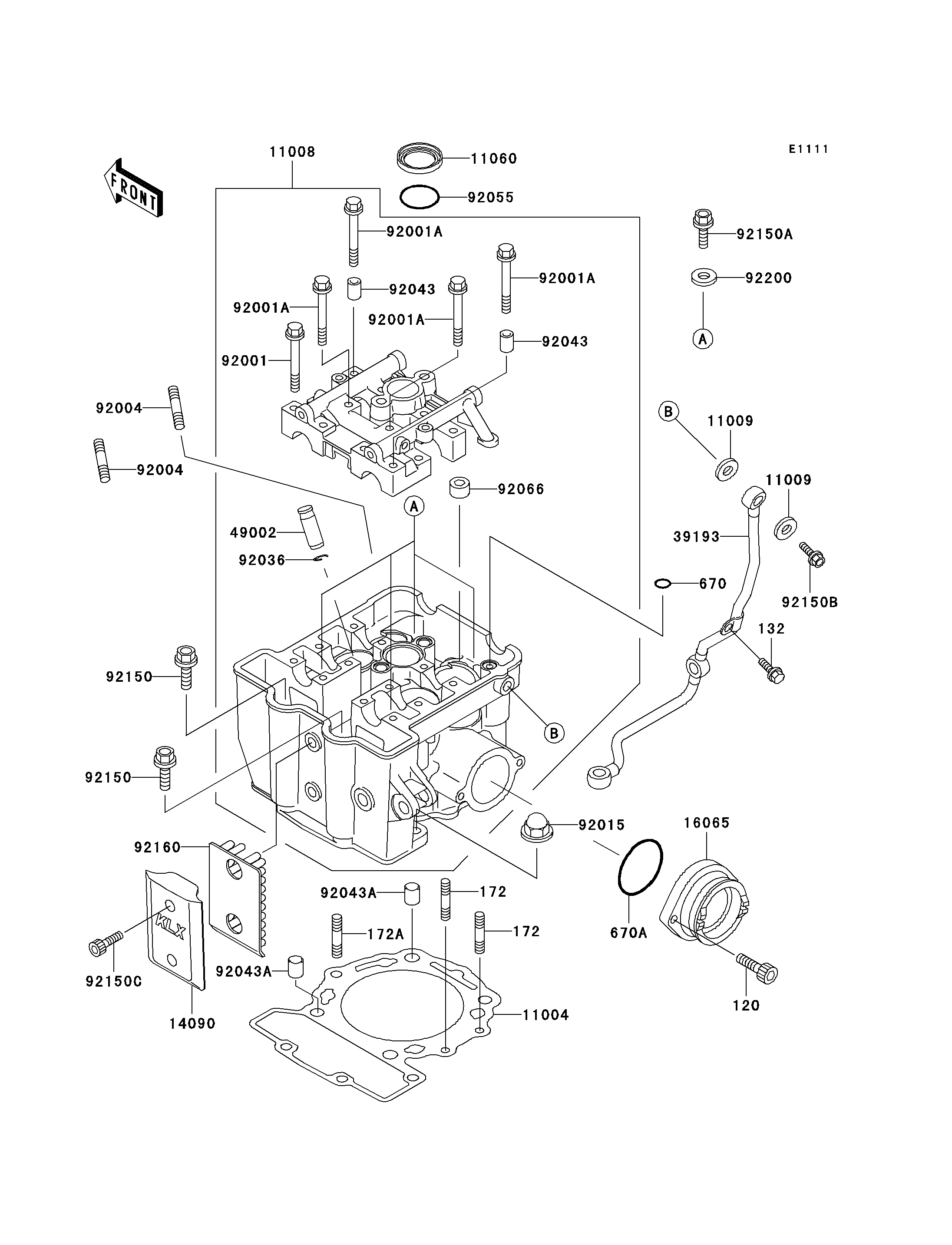

Parts Diagrams |
120
132
172
172
172A
670
670A
11004
11008
11009
11009
11060
14090
16065
39193
49002
92001
92001A
92001A
92001A
92001A
92004
92004
92015
92036
92043
92043
92043A
92043A
92055
92066
92150
92150
92150A
92150B
92150C
92160
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120Z0620 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132Y0610 | 1 | ||
BOLT-STUD,6X22 | 172 | 172G0622 | 2 | ||
BOLT-STUD,8X25 | 172A | 172G0825 | 1 | ||
O RING,8MM | 670 | 670D1508 | 1 | ||
O RING,48MM | 670A | 670D3048 | 1 | ||
GASKET-HEAD | 11004 | 11004-1253 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-1275 | 1 | ||
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 6 | ||
GASKET,CAP | 11060 | 11060-1297 | 1 | ||
COVER | 14090 | 14090-1342 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1104 | 1 | ||
PIPE-OIL | 39193 | 39193-1012 | 1 | ||
GUIDE-VALVE | 49002 | 49002-1125 | AR | ||
BOLT,FLANGED,6X38 | 92001 | 92001-1105 | 8 | ||
BOLT,6X46 | 92001A | 92001-1872 | 4 | ||
STUD,8X22 | 92004 | 92004-1217 | 2 | ||
NUT,8MM | 92015 | 92015-1402 | 1 | ||
RING-SNAP | 92036 | 92036-023 | 4 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
PIN,10.1X12X14 | 92043A | 92043-4009 | 2 | ||
RING-O,30MM | 92055 | 92055-1047 | 1 | ||
PLUG | 92066 | 92066-1253 | 2 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1156 | 2 | ||
BOLT,10X225 | 92150A | 92150-1618 | 4 | ||
BOLT,BANJO,10X23 | 92150B | 92150-1641 | 3 | ||
BOLT,SOCKET,6X25 | 92150C | 92150-1714 | 2 | ||
DAMPER | 92160 | 92160-1441 | 1 | ||
WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 4 |
