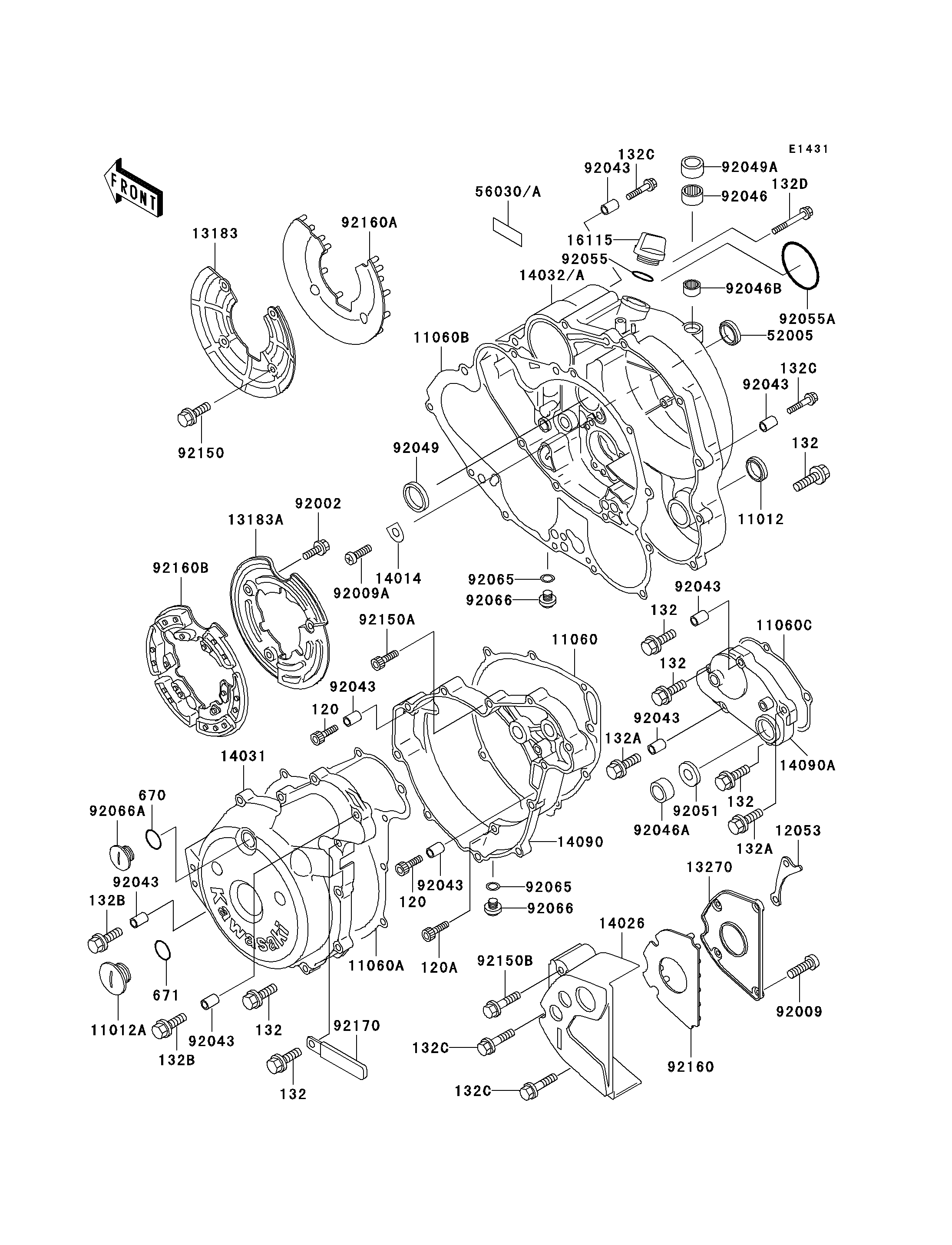

1994 KLX650 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012A
11012A
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
12053
12053
13183
13183
13183A
13183A
13270
13270
14014
14014
14026
14026
14031
14031
14032
14032
14090
14090
14090A
14090A
16115
16115
52005
52005
56030
56030
92002
92002
92009
92009
92009A
92009A
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92049A
92049A
92051
92051
92055
92055
92055A
92055A
92065
92065
92065
92065
92066
92066
92066
92066
92066A
92066A
92150
92150
92150A
92150A
92150B
92150B
92160
92160
120
120
120
120
120A
120A
132
132
132
132
132
132
132
132
132
132
132
132
132A
132A
132A
132A
132B
132B
132B
132B
132C
132C
132C
132C
132C
132C
132C
132C
132D
132D
670
670
671
671
92160A
92160A
92160B
92160B
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1567 1
CAP 11012A 11012-1616 1
GASKET,GENERATOR 11060 11060-1293 1
GASKET,GENERATOR COVER 11060A 11060-1313 1
GASKET,CLUTCH COVER 11060B 11060-1363 1
GASKET,TRANSMISSION COVER 11060C 11060-1364 1
GUIDE-CHAIN 12053 12053-1334 1
PLATE,CLUTCH COVER 13183 13183-1937 1
PLATE,GENERATOR COVER 13183A 13183-1988 1
PLATE,CHAIN COVER 13270 13270-1285 1
PLATE-POSITION,ROD 14014 14014-1116 1
COVER-CHAIN 14026 14026-1195 1
COVER-GENERATOR 14031 14031-1274 1
COVER-CLUTCH 14032 14032-1358 1
COVER,GENERATOR,INSIDE 14090 14090-1253 1
COVER,TRANSMISSION 14090A 14090-1256 1
CAP-OIL FILLER 16115 16115-1053 1
GAUGE,OIL LEVEL 52005 52005-1057 1
LABEL,OIL 56030 56030-1158 1
BOLT,6X8 92002 92002-1944 3
SCREW,TAPPING,4X8 92009 92009-1155 4
SCREW,6X10 92009A 92009-1563 1
PIN,6.2X8X14 92043 92043-1263 8
BEARING-NEEDLE,HK1210 92046 92046-1010 1
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
BEARING-NEEDLE 92046B 92046-1217 1
SEAL-OIL,SCY 15X30X7 92049 92049-1158 1
SEAL-OIL,TB12205.5 92049A 92049-1271 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-012 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
GASKET,12.5X18X1,DRAIN PLUG 92065 92065-073 2
PLUG,12X10 92066 92066-1222 2
PLUG,DRAIN 92066A 92066-1380 1
BOLT,5X8 92150 92150-1406 4
BOLT,SOCKET,6X22 92150A 92150-1654 1
BOLT,6X40 92150B 92150-1830 1
DAMPER,CHAIN COVER 92160 92160-1389 1
BOLT-SOCKET,6X35 120 120P0635 2
BOLT-SOCKET 120A 120Z0625 6
BOLT-FLANGED-SMALL 132 132Y0625 21
BOLT-FLANGED-SMALL 132A 132Y0630 2
BOLT-FLANGED-SMALL 132B 132Y0635 2
BOLT-FLANGED-SMALL 132C 132Y0640 4
BOLT-FLANGED-SMALL 132D 132Y0680 1
O RING,18MM 670 670B2018 1
O RING,40MM 671 671B2540 1
DAMPER,CLUTCH COVER 92160A 92160-1390 1
DAMPER,GENERATOR COVER 92160B 92160-1411 1
CLAMP,CARBURETOR HOSE 92170 92170-1514 1
