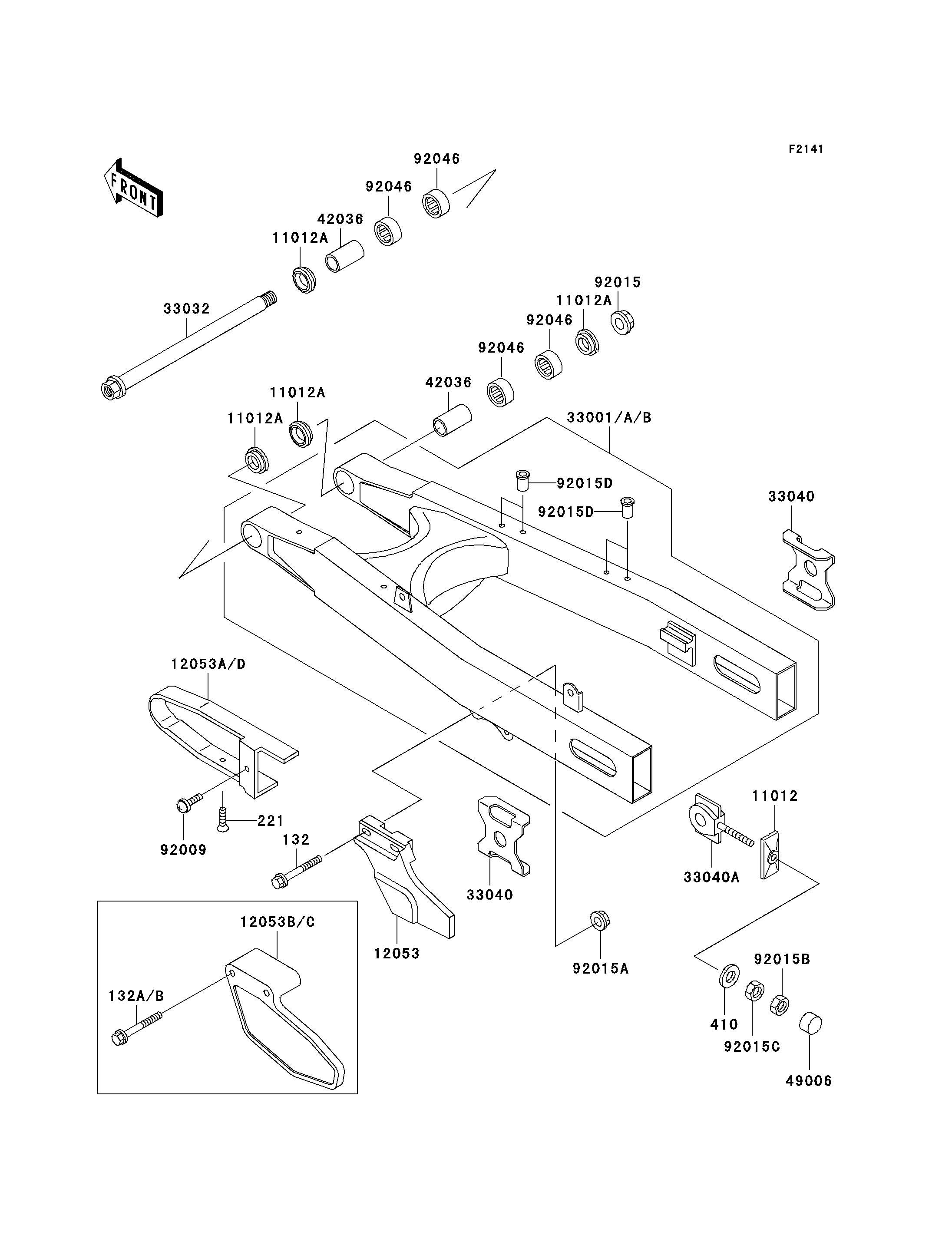

1994 KLX650 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
132A
221
410
11012
11012A
11012A
11012A
11012A
12053A
12053B
33001A
33032
33040
33040
33040A
42036
42036
49006
92009
92015
92015A
92015B
92015C
92015D
92015D
92046
92046
92046
92046
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132A 132G0655 2
SCREW-CSK-CROS,6X10 221 221B0610 1
WASHER-PLAIN-SMALL,8MM 410 410B0800 2
CAP,CHAIN ADJUSTER 11012 11012-1780 2
CAP,SWING ARM PIPOT 11012A 11012-1790 4
GUIDE-CHAIN,DRIVE,FR 12053A 12053-1293 1
GUIDE-CHAIN,RR 12053B 12053-1335 1
ARM-COMP-SWING,SILVER NO.25 33001A 33001-1436-CE 1
SHAFT-SWING ARM 33032 33032-1171 1
ADJUSTER-CHAIN,OUTER 33040 33040-1131 2
ADJUSTER-CHAIN,INNER 33040A 33040-1132 2
SLEEVE,SWING ARM,L=58 42036 42036-1307 2
BOOT 49006 49006-1218 2
SCREW,6X14 92009 92009-1288 1
NUT,FLANGED,16MM 92015 92015-1316 1
NUT,LOCK,FLANGED,6MM 92015A 92015-1339 2
NUT,8MM 92015B 92015-1364 2
NUT,8MM 92015C 92015-1658 2
NUT,POP,6MM,L=16.5 92015D 92015-1792 4
BEARING-NEEDLE,HK2212/8A 92046 92046-1214 4
