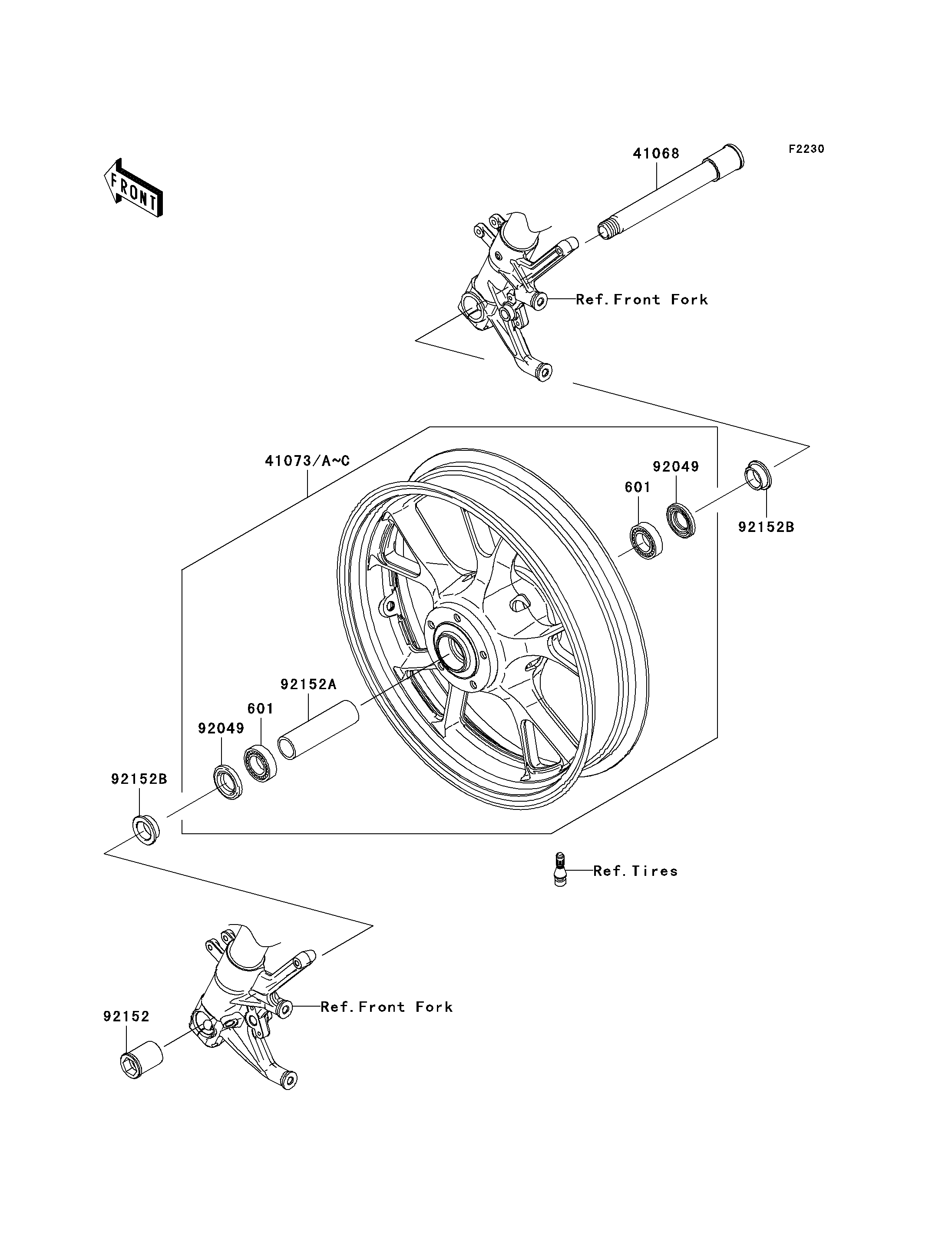

601
601
41068
41073C
92049
92049
92152
92152A
92152B
92152B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6005UU 601 601B6005UU 2
AXLE,FR 41068 41068-0049 1
WHEEL-ASSY,FR,M.F.P.SILVER 41073C 41073-0105-795 1
SEAL-OIL,BJN-C2 32X47X5 92049 92049-0050 2
COLLAR,FR AXLE,LH,L=44.5 92152 92152-0240 1
COLLAR,FR HUB,L=115 92152A 92152-0242 1
COLLAR,FR AXLE,L=13 92152B 92152-0289 2
