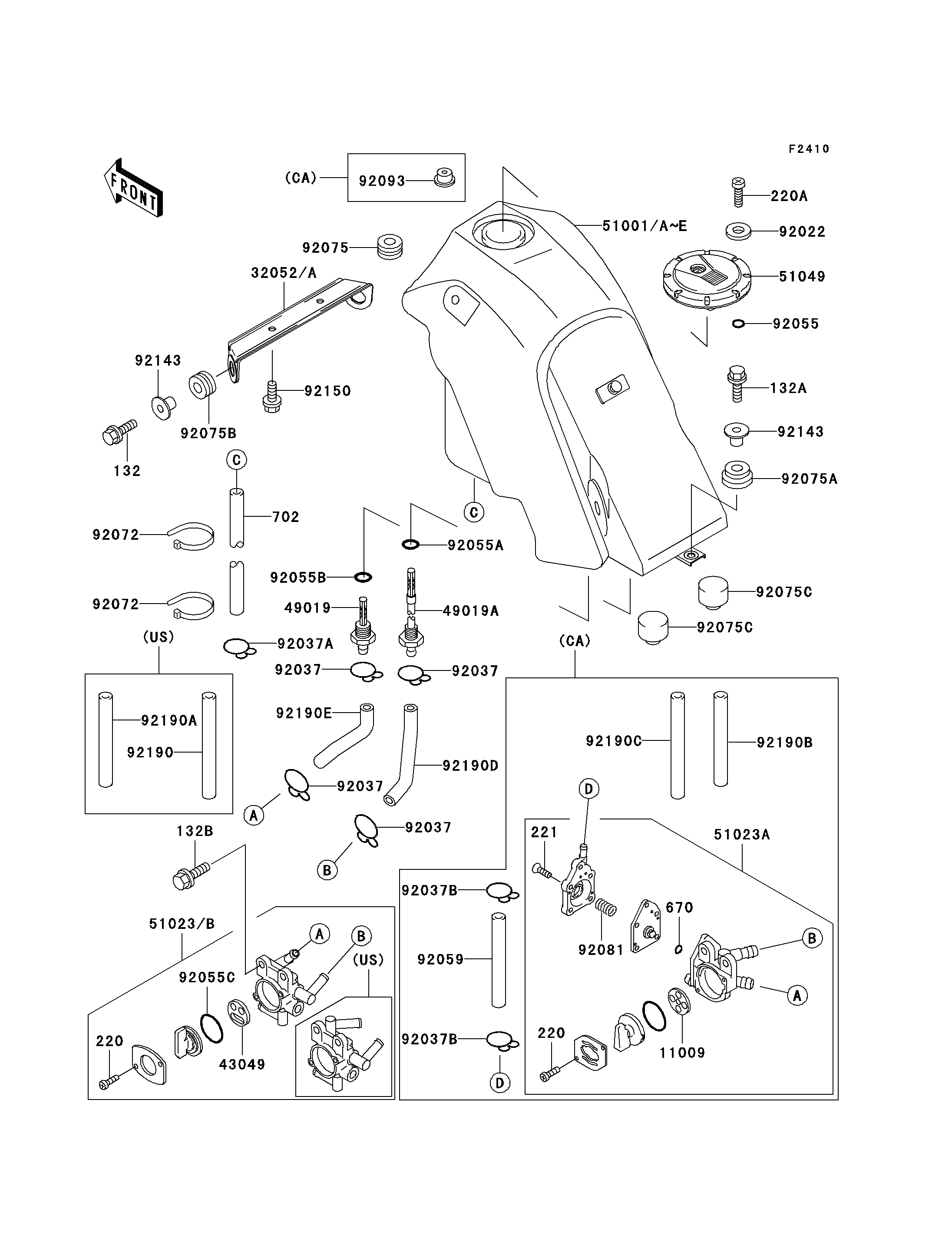

Parts Diagrams |
32052
32052
49019
49019
49019A
49019A
51049
51049
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92055B
92055B
132
132
132A
132A
132B
132B
220
220
220
220
220A
220A
92075
92075
92075A
92075A
92075B
92075B
92075C
92075C
92075C
92075C
92143
92143
92143
92143
92150
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-TANK,FR,EBONY | 32052 | 32052-1366-H8 | 1 | ||
FILTER-FUEL,"RES" | 49019 | 49019-1057 | 1 | ||
FILTER-FUEL,"ON" | 49019A | 49019-1058 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1077 | 1 | ||
WASHER,5.1X10X1.0 | 92022 | 92022-1977 | 2 | ||
CLAMP,TUBE | 92037 | 92037-147 | 4 | ||
RING-O | 92055 | 92055-1023 | 2 | ||
RING-O,ID=9.5 | 92055A | 92055-1386 | 1 | ||
RING-O,11.5X1.5 | 92055B | 92055-1387 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132G0625 | 1 | ||
BOLT-FLANGED-SMALL | 132B | 132J0608 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
SCREW-PAN-CROS | 220A | 220D0510 | 2 | ||
DAMPER | 92075 | 92075-005 | 1 | ||
DAMPER | 92075A | 92075-112 | 1 | ||
DAMPER,RUBBER | 92075B | 92075-1123 | 2 | ||
DAMPER | 92075C | 92075-1876 | 2 | ||
COLLAR | 92143 | 92143-1353 | 3 | ||
BOLT,6X12 | 92150 | 92150-1435 | 2 | ||
GASKET,TAP VALVE | 11009 | 11009-1188 | 1 | ||
PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
TANK-COMP-FUEL,EBONY | 51001C | 51001-1453-H8 | 1 | ||
TANK-COMP-FUEL,EBONY | 51001E | 51001-1455-H8 | 1 | ||
TAP-ASSY,FUEL | 51023A | 51023-1208 | 1 | ||
TAP-ASSY,FUEL | 51023B | 51023-1210 | 1 | ||
CLAMP | 92037A | 92037-1610 | 1 | ||
CLAMP | 92037B | 92037-1712 | 2 | ||
RING-O,TAP LEVER | 92055C | 92055-1419 | 1 | ||
SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 5 | ||
O RING,4MM | 670 | 670B1504 | 1 | ||
TUBE-RUBBER,5X8X620 | 702 | 702A05620 | 1 | ||
TUBE,4X9X80 | 92059 | 92059-1365 | 1 | ||
BAND,L=140 | 92072 | 92072-1293 | 2 | ||
SPRING,TAP DIAPHRAGM | 92081 | 92081-1240 | 1 | ||
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
TUBE,"ON",5.6X11.1X92 | 92190B | 92190-1479 | 1 | ||
TUBE,"RES",5.6X11.1X100 | 92190C | 92190-1480 | 1 | ||
TUBE | 92190D | 92190-1496 | 1 | ||
TUBE | 92190E | 92190-1497 | 1 |
BRACKET-TANK,FR,EBONY | |
REF # | 32052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL,"RES" | |
REF # | 49019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL,"ON" | |
REF # | 49019A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.1X10X1.0 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,ID=9.5 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,11.5X1.5 | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RUBBER | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,TAP VALVE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,TAP VALVE | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,EBONY | |
REF # | 51001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,EBONY | |
REF # | 51001E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,TAP LEVER | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,4X14 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
O RING,4MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,5X8X620 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4X9X80 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=140 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,TAP DIAPHRAGM | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,FUEL TANK CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"ON",5.6X11.1X92 | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"RES",5.6X11.1X100 | |
REF # | 92190C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
