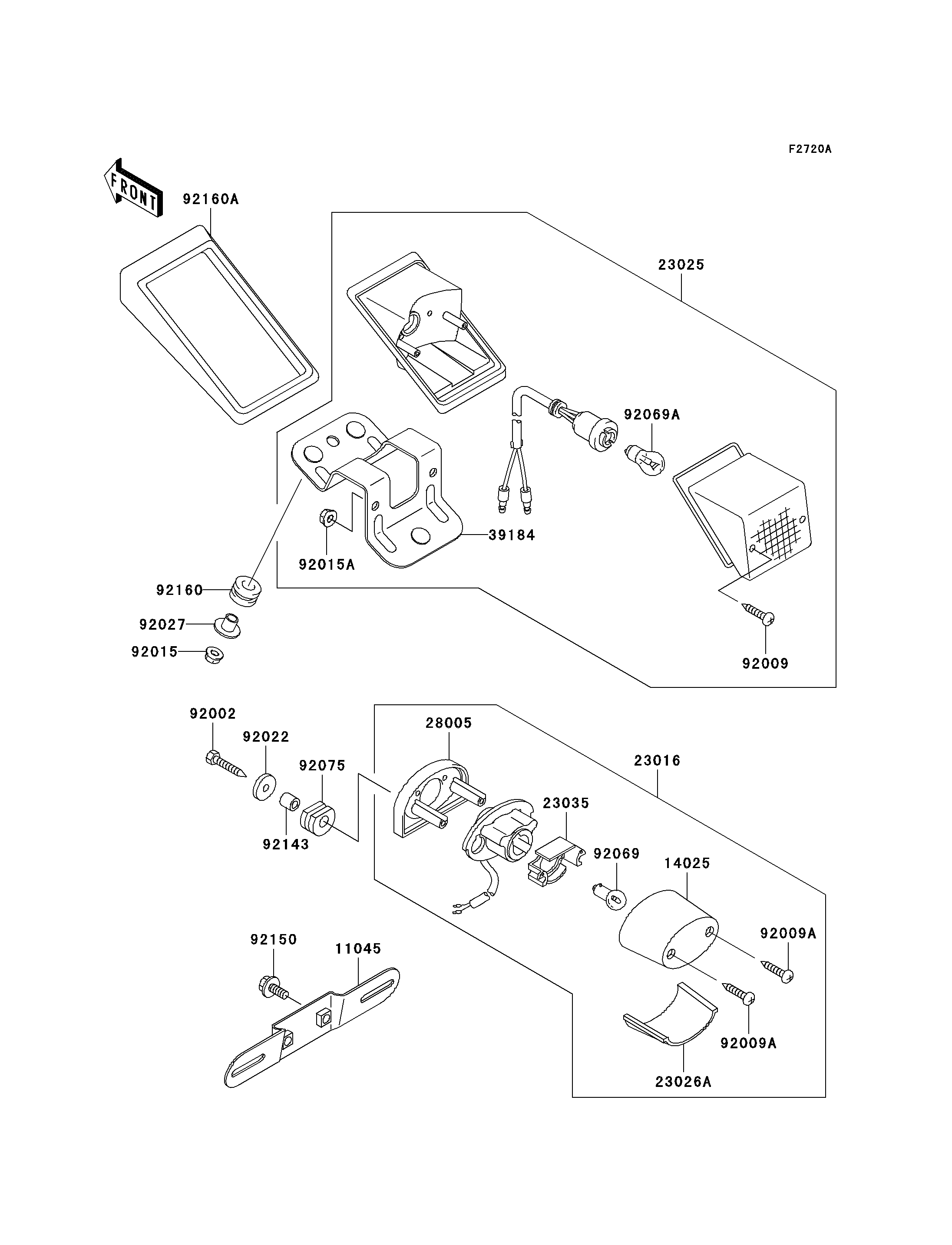

1996 KLX650 - Taillight(s)@(JKALXEC1 SA021310&NAMI.)
11045
14025
23016
23025
23026A
23035
28005
39184
92002
92009
92009A
92009A
92015
92015A
92022
92027
92069
92069A
92075
92143
92150
92160
92160A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LICENSE | 11045 | 11045-1387 | 1 | ||
COVER,LICENSE LAMP | 14025 | 14025-1725 | 1 | ||
LAMP-ASSY,LICENSE PLATE | 23016 | 23016-1130 | 1 | ||
LAMP-TAIL | 23025 | 23025-1235 | 1 | ||
LENS,LICENSE LAMP | 23026A | 23026-1064 | 1 | ||
REFLECTOR-LAMP,LICENSE | 23035 | 23035-1060 | 1 | ||
BODY-LAMP,LICENSE | 28005 | 28005-1051 | 1 | ||
BRACKET-ASSY,TAIL LAMP | 39184 | 39184-1077 | 1 | ||
BOLT,TAPPING,5X25 | 92002 | 92002-1831 | 2 | ||
SCREW,TAPPING,4X20 | 92009 | 92009-1297 | 2 | ||
SCREW,TAPPING,4X20 | 92009A | 92009-1378 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 3 | ||
NUT,6MM | 92015A | 92015-1899 | 2 | ||
WASHER,5.5X20X1.2 | 92022 | 92022-1581 | 2 | ||
COLLAR,L=14.1 | 92027 | 92027-1920 | 3 | ||
BULB,12V 8W | 92069 | 92069-1012 | 1 | ||
BULB,12V 27/8W | 92069A | 92069-1093 | 1 | ||
DAMPER | 92075 | 92075-1870 | 2 | ||
COLLAR,5.8X9X10.5 | 92143 | 92143-1047 | 2 | ||
BOLT,6X16 | 92150 | 92150-1909 | 2 | ||
DAMPER | 92160 | 92160-1167 | 3 | ||
DAMPER,TAIL LAMP | 92160A | 92160-1406 | 1 | ||
GASKET,TAIL LAMP | 11009 | 11009-1371 | 1 | ||
LENS,TAIL LAMP | 23026 | 23026-1053 | 1 |
