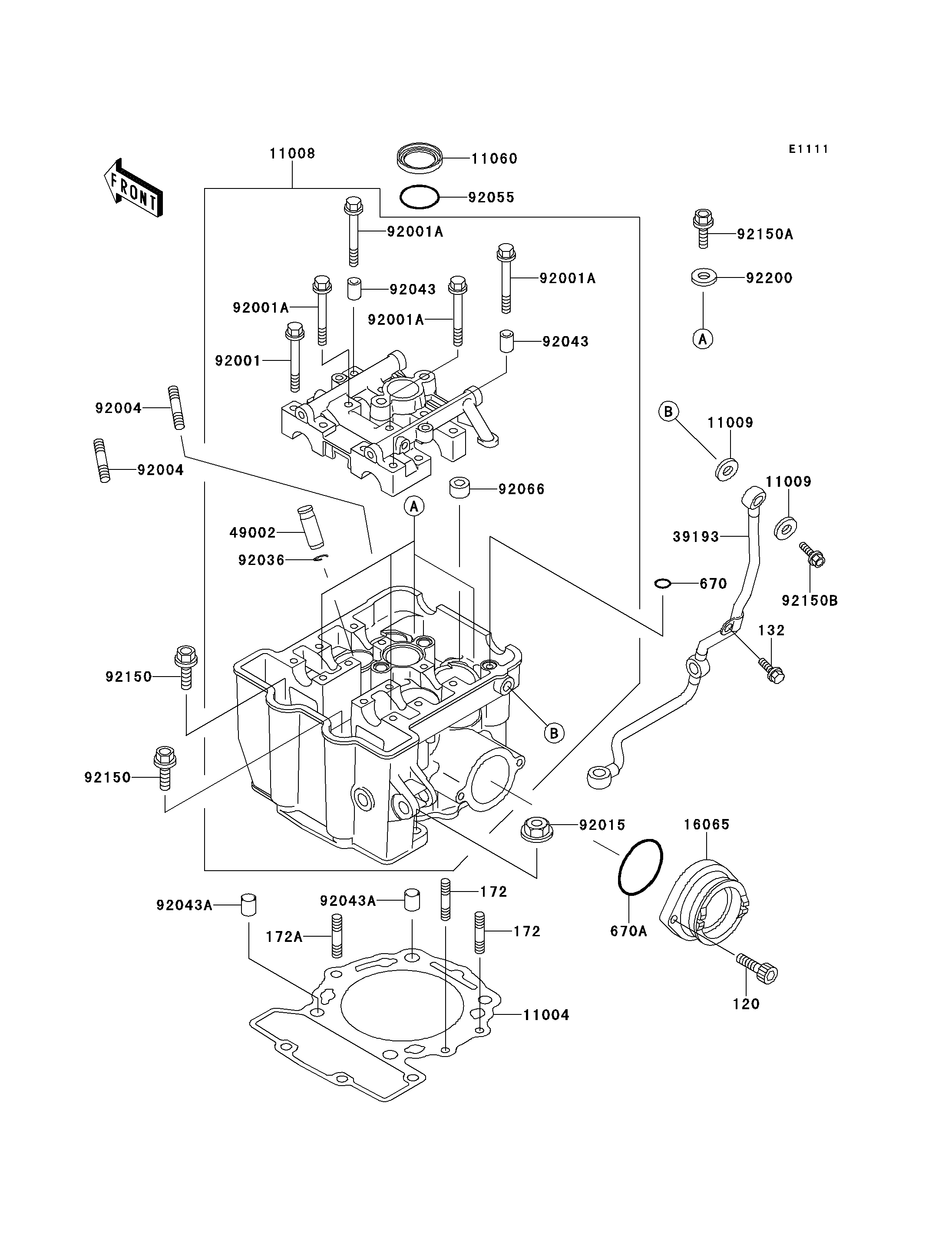

1996 KLX650R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
120
132
172
172
172A
670
670A
11004
11008
11009
11009
11060
16065
39193
49002
92001
92001A
92001A
92001A
92001A
92004
92004
92015
92036
92043
92043
92043A
92043A
92055
92066
92150
92150
92150A
92150B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120Z0620 2
BOLT-FLANGED-SMALL 132 132Y0610 1
BOLT-STUD,6X22 172 172G0622 2
BOLT-STUD,8X25 172A 172G0825 1
O RING,8MM 670 670D1508 1
O RING,48MM 670A 670D3048 1
GASKET-HEAD 11004 11004-1253 1
HEAD-COMP-CYLINDER 11008 11008-1270 1
GASKET,10X14.5X1.5 11009 11009-1105 6
GASKET,CAP 11060 11060-1297 1
HOLDER-CARBURETOR 16065 16065-1104 1
PIPE-OIL 39193 39193-1012 1
GUIDE-VALVE 49002 49002-1125 AR
BOLT,FLANGED,6X38 92001 92001-1105 8
BOLT,6X46 92001A 92001-1872 4
STUD,8X22 92004 92004-1217 2
NUT,8MM 92015 92015-1402 1
RING-SNAP 92036 92036-023 4
PIN,6.2X8X14 92043 92043-1263 2
PIN,10.1X12X14 92043A 92043-4009 2
RING-O,30MM 92055 92055-1047 1
PLUG 92066 92066-1253 2
BOLT,SOCKET,8X30 92150 92150-1156 2
BOLT,10X225 92150A 92150-1618 4
BOLT,BANJO,10X23 92150B 92150-1641 3
WASHER,10.5X19X2.3 92200 92200-1042 4
