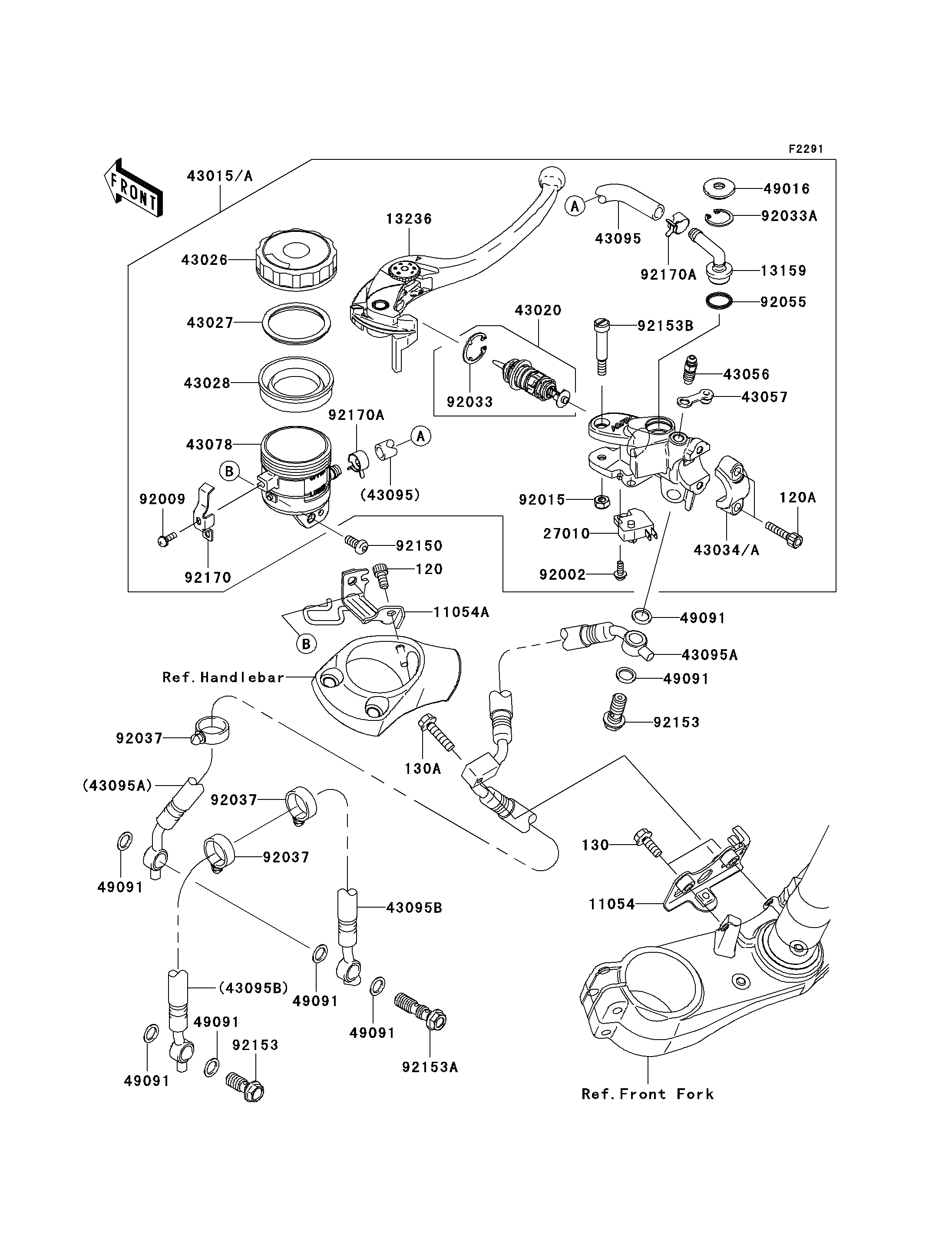

2008 Ninja® ZX™-14 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
120A
130
130A
11054
11054A
13159
13236
27010
43015
43020
43026
43027
43028
43034A
43056
43057
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
49091
49091
49091
92002
92009
92015
92033
92033A
92037
92037
92037
92055
92150
92153
92153
92153A
92153B
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-SOCKET,6X22 120A 120CB0622 2
BOLT-FLANGED,6X18 130 130BA0618 2
BOLT-FLANGED,6X25 130A 130BB0625 1
BRACKET,JOINT 11054 11054-0029 1
BRACKET,RESERVOIR TANK,FR 11054A 11054-0636 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-0103 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0114 1 ( - JKBZXNC1 9A015019)
PISTON-COMP-BRAKE 43020 43020-0010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034A 43034-1016 1 ( - JKBZXNC1 9A015019)
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR MASTER CYLINDER 43095 43095-0040 1
HOSE-BRAKE,FR 43095A 43095-0399 1
HOSE-BRAKE,FR 43095B 43095-0400 1
COVER-SEAL 49016 49016-1147 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 7
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW 92009 92009-1570 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP,HOSE 92037 92037-1827 3
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,6X14 92150 92150-1836 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,OIL,L=37 92153A 92153-0628 1
BOLT,LEVER 92153B 92153-0868 1
CLAMP 92170 92170-1090 1
CLAMP,HOSE 92170A 92170-1091 2
