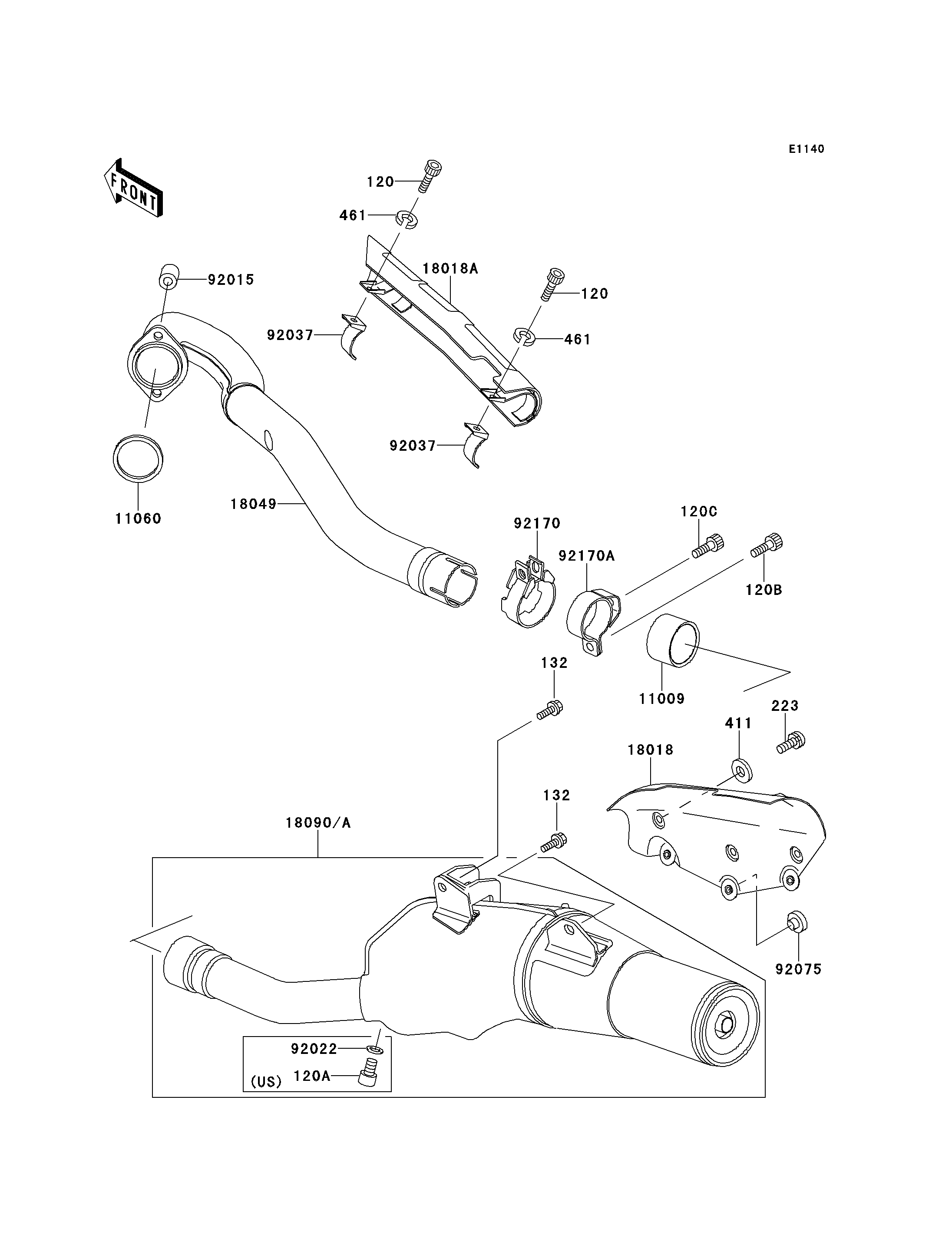

1996 KLX650R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120B
120C
132
132
223
411
461
461
11009
11060
18018
18018A
18049
92015
92037
92037
92075
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120R0620 2
BOLT-SOCKET 120B 120Z0812 1
BOLT-SOCKET 120C 120Z0814 1
BOLT-FLANGED-SMALL 132 132Y0816 2
SCREW-PAN-WS-CROS 223 223C0610 4
WASHER-PLAIN,6MM,BLACK 411 411F0600 4
WASHER-SPRING,6MM 461 461S0600 2
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1666 1
GASKET,EXHAUST PIPE 11060 11060-1119 1
PLATE-HEAT GUARD 18018 18018-1106 1
PLATE-HEAT GUARD 18018A 18018-1110 1
PIPE-EXHAUST 18049 18049-1668 1
NUT 92015 92015-1983 2
CLAMP,EXHAUST PIPE COVER 92037 92037-1613 2
DAMPER 92075 92075-005 5
CLAMP 92170 92170-1590 1
CLAMP 92170A 92170-1591 1
BOLT-SOCKET 120A 120S0814 1 US
BODY-COMP-MUFFLER 18090 18090-1296 1 CN
BODY-COMP-MUFFLER 18090A 18090-1509 1 US
WASHER,8.2X14X1.0 92022 92022-1488 1 US
