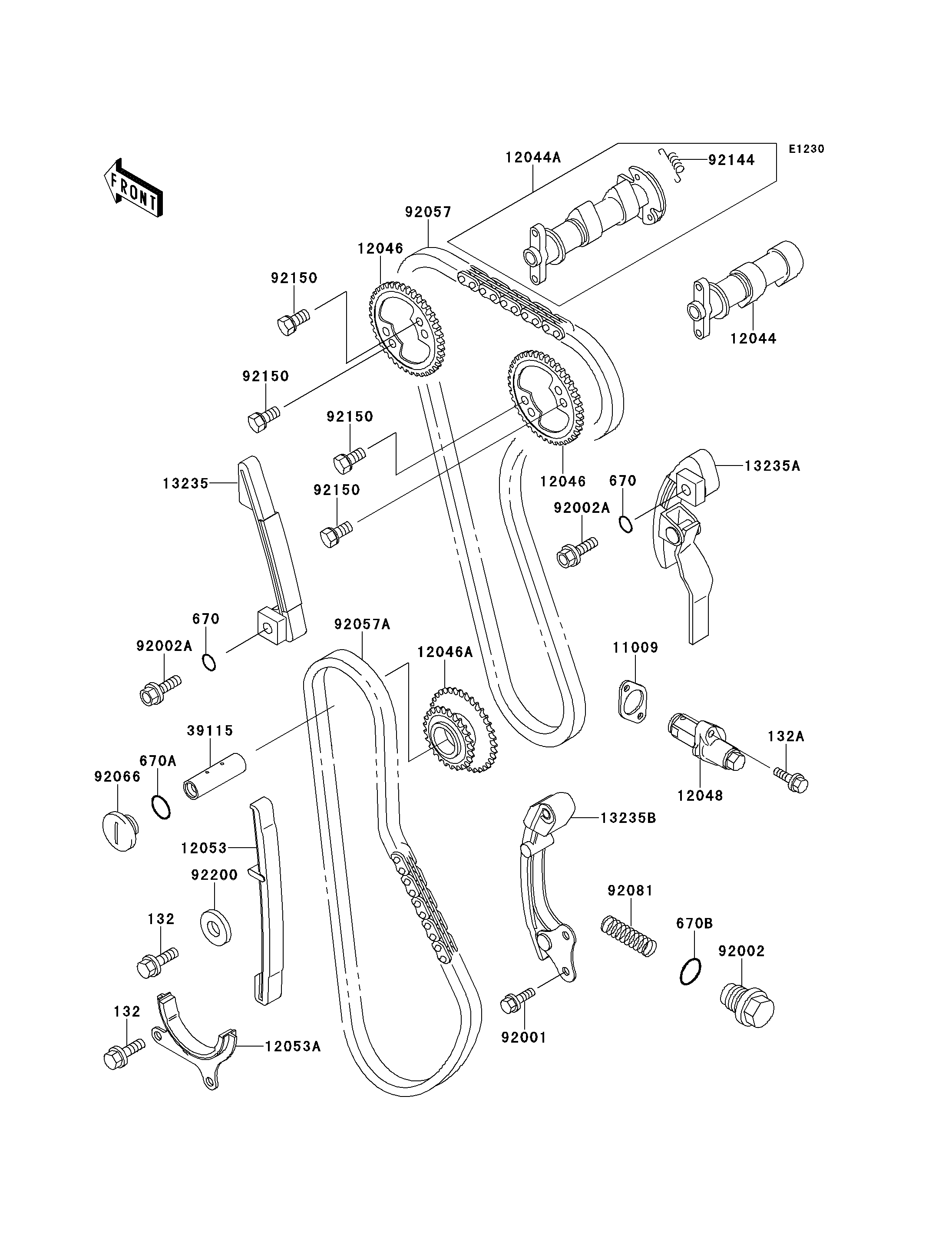

1996 KLX650R - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
670
670
670A
670B
11009
12044
12044A
12046
12046
12046A
12048
12053
12053A
13235
13235A
13235B
39115
92001
92002
92002A
92002A
92057
92057A
92066
92081
92144
92150
92150
92150
92150
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0614 3
BOLT-FLANGED-SMALL 132A 132Y0625 2
O RING,11MM 670 670B2011 2
O RING,16MM 670A 670B2016 1
O RING,18MM 670B 670B2018 1
GASKET,TENSIONER 11009 11009-1858 1
CAMSHAFT-VALVE,INTAKE 12044 12044-1326 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-1346 1
SPROCKET,CAMSHAFT 12046 12046-1137 2
SPROCKET,CAMCHAIN IDLER 12046A 12046-1139 1
TENSIONER-ASSY 12048 12048-1139 1
GUIDE-CHAIN,FR,LWR 12053 12053-1306 1
GUIDE-CHAIN 12053A 12053-1329 1
GUIDE-COMP,FR,UPP 13235 13235-1064 1
GUIDE-COMP,RR,UPP 13235A 13235-1065 1
GUIDE-COMP,RR,LWR 13235B 13235-1066 1
SHAFT-IDLER,SPROCKET 39115 39115-1074 1
BOLT,6X16 92001 92001-1457 2
BOLT,TENSIONER 92002 92002-1621 1
BOLT 92002A 92002-1732 2
CHAIN,UPP,88RH2015,94L 92057 92057-1361 1
CHAIN,LWR,88RH2010,82L 92057A 92057-1362 1
PLUG,IDLER 92066 92066-1409 1
SPRING,TENSIONER 92081 92081-1380 1
SPRING,DECOMPRESSOR 92144 92144-1744 1
BOLT,FLANGED,6X11 92150 92150-1725 4
WASHER,7X27X1.6 92200 92200-1169 1
