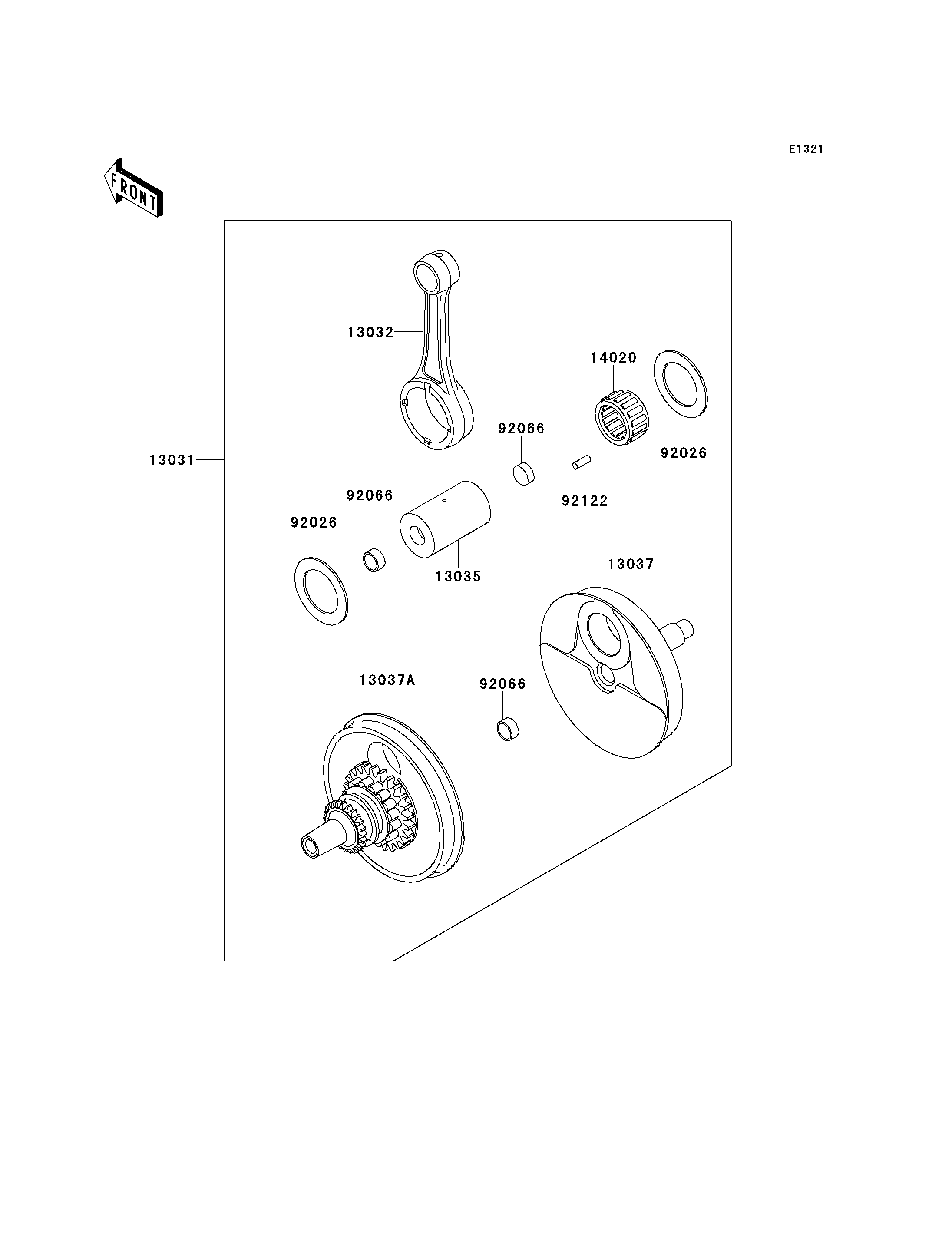

13031
13032
13035
13037
13037A
14020
92026
92026
92066
92066
92066
92122
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1380 1
ROD-CONNECTING 13032 13032-1207 1
PIN-CRANK 13035 13035-1052 1
CRANKSHAFT,RH 13037 13037-1441 1
CRANKSHAFT,LH 13037A 13037-5086 1
RETAINER 14020 14020-1094 1
SPACER,38X58X1.5 92026 92026-1204 2
PLUG 92066 92066-1154 3
ROLLER,B6 92122 92122-1163 19
