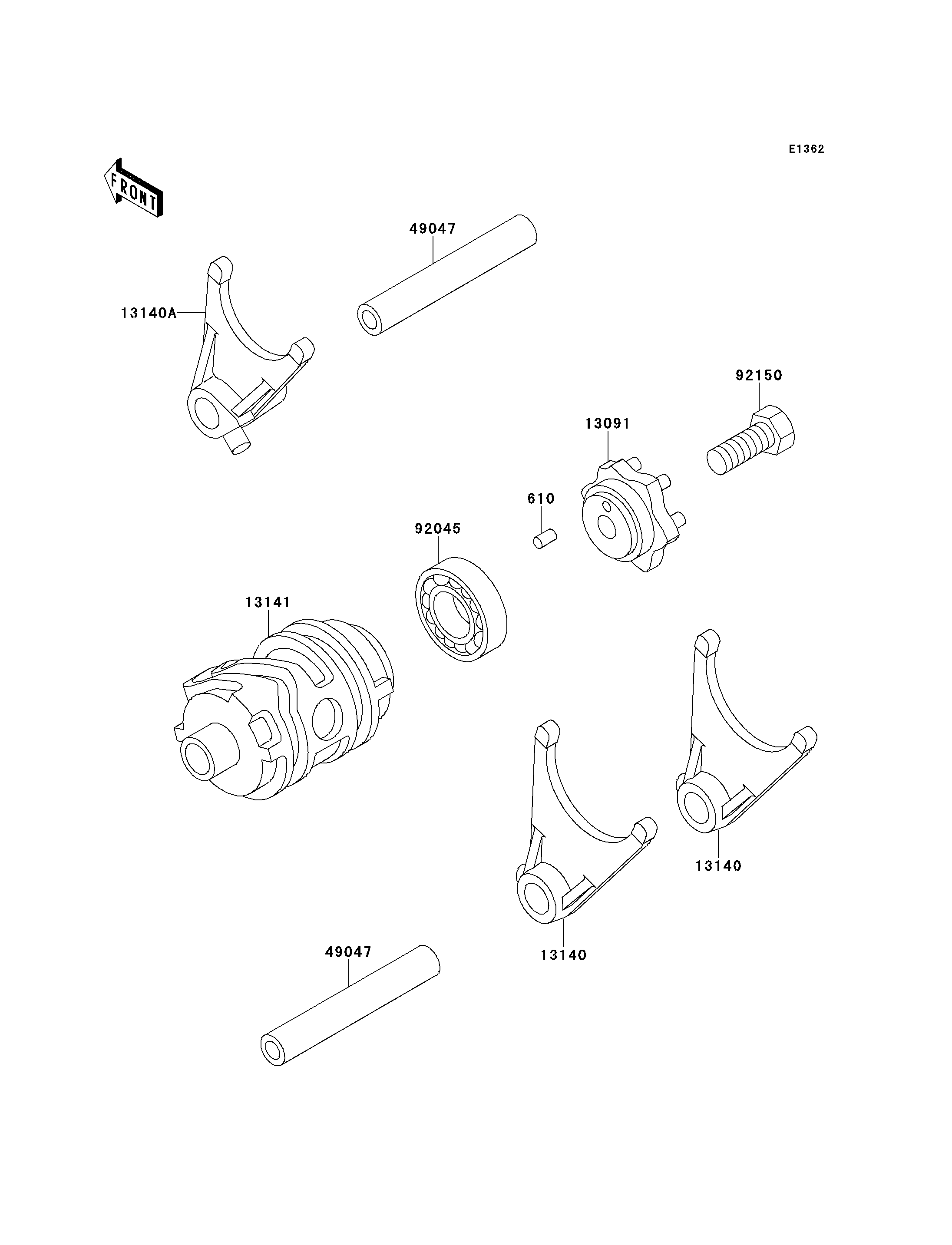

610
13091
13140
13140
13140A
13141
49047
49047
92045
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
HOLDER,CHANGE DRUM 13091 13091-1722 1
FORK-SHIFT,OUTPUT 13140 13140-1212 2
FORK-SHIFT,INPUT 13140A 13140-1213 1
DRUM-CHANGE 13141 13141-1180 1
ROD-SHIFT,L=93.7 49047 49047-1003 2
BEARING-BALL,#6905 92045 92045-036 1
BOLT 92150 92150-1645 1
