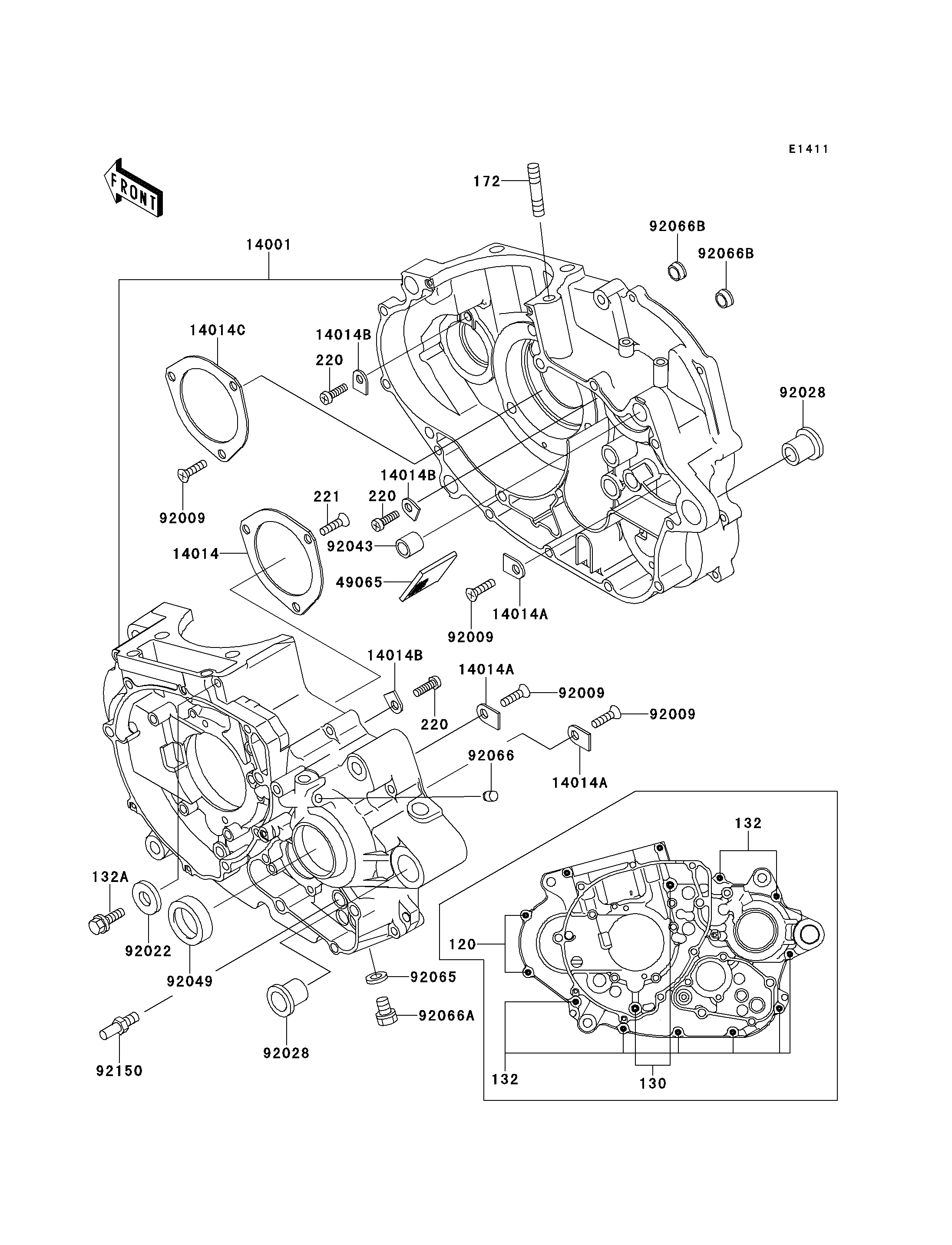

Parts Diagrams |
120
130
132
132
132A
172
220
220
220
221
14001
14014
14014A
14014A
14014A
14014B
14014B
14014B
14014C
49065
92009
92009
92009
92009
92022
92028
92028
92043
92049
92065
92066
92066A
92066B
92066B
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120Z0640 | 2 | ||
BOLT-FLANGED | 130 | 130Z0865 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132Y0640 | 8 | ||
BOLT-FLANGED-SMALL | 132A | 132Y0695 | 2 | ||
BOLT-STUD,8X25 | 172 | 172G0825 | 1 | ||
SCREW-PAN-CROS,6X12 | 220 | 220B0612 | 3 | ||
SCREW-CSK-CROS,6X16 | 221 | 221B0616 | 3 | ||
SET-CRANKCASE | 14001 | 14001-5337 | 1 | ||
PLATE-POSITION | 14014 | 14014-1051 | 1 | ||
PLATE-POSITION | 14014A | 14014-1057 | 3 | ||
PLATE-POSITION,ROD | 14014B | 14014-1080 | 3 | ||
PLATE-POSITION | 14014C | 14014-1083 | 1 | ||
FILTER-OIL | 49065 | 49065-1071 | 1 | ||
SCREW,8X16 | 92009 | 92009-1703 | 6 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
BUSHING | 92028 | 92028-1694 | 2 | ||
PIN,11.5X14X14 | 92043 | 92043-1279 | 3 | ||
SEAL-OIL,TC32457 | 92049 | 92049-1159 | 1 | ||
GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066A | 92066-1174 | 1 | ||
PLUG | 92066B | 92066-1282 | 2 | ||
BOLT,RETURN SPRING | 92150 | 92150-1803 | 1 |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-STUD,8X25 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X12 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X16 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLATE-POSITION,ROD | |
REF # | 14014B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-OIL | |
REF # | 49065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,8X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,11.5X14X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC32457 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,12X22X2,DRAIN PLUG | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL LINE,7.2X8 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
