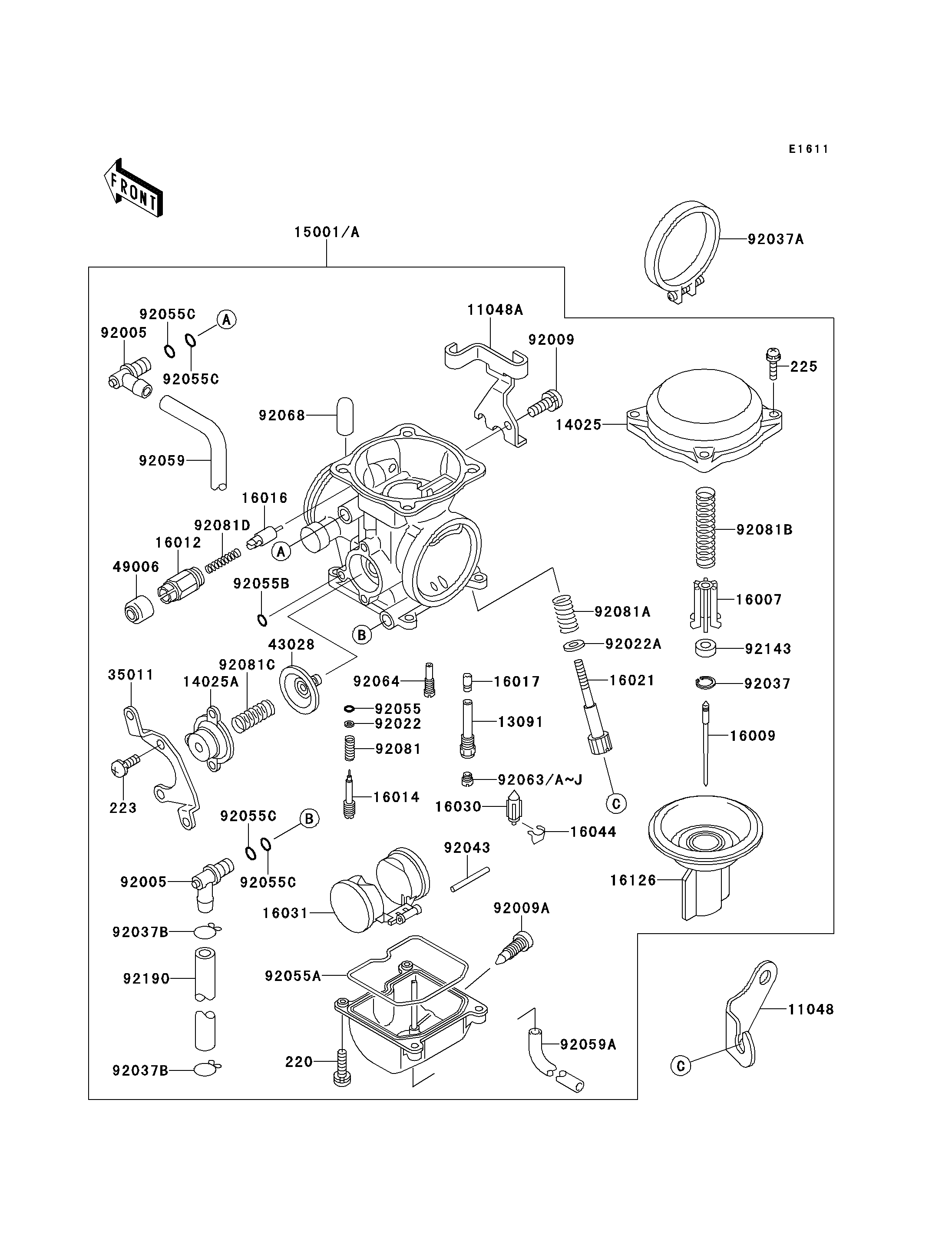

1996 KLX650R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11048
11048
11048A
11048A
13091
13091
14025
14025
14025A
14025A
16007
16007
16009
16009
16012
16012
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
35011
35011
43028
43028
49006
49006
92005
92005
92005
92005
92009
92009
92009A
92009A
92022
92022
92022A
92022A
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055C
92055C
92055C
92055C
92055C
92055C
92059
92059
92059A
92059A
220
220
223
223
225
225
92063E
92063E
92063F
92063F
92063H
92063H
92063I
92063I
92063J
92063J
92064
92064
92068
92068
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
92081D
92081D
92143
92143
92190
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CARBURETOR 11048 11048-1210 1
BRACKET,THROTTLE CABLE 11048A 11048-1275 1
HOLDER,NEEDLE JET 13091 13091-1425 1
COVER,MIXING CHAMBER 14025 14025-1890 1
COVER,AIR CUT VALVE 14025A 14025-1903 1
SEAT-SPRING,DIAPHRAGM VALVE 16007 16007-1113 1
NEEDLE-JET,N1TB 16009 16009-1794 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1061 1
PLUNGER 16016 16016-1057 1
JET-NEEDLE 16017 16017-1367 1
SCREW-THROTTLE STOP 16021 16021-1145 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1056 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1278 1
STAY,AIR CUT VALVE 35011 35011-1232 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
FITTING,L-TYPE 92005 92005-1120 2
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,M6X0.75 92009A 92009-1551 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,JET NEEDLE 92037 92037-1401 1
CLAMP,55MM 92037A 92037-1486 1
CLAMP,TUBE 92037B 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,FLOAT CHAMBER 92055A 92055-1222 1
RING-O 92055B 92055-1245 1
RING-O 92055C 92055-1246 4
TUBE,6.5X9.5X430 92059 92059-1727 1
TUBE,3.5X6.5X390 92059A 92059-1838 1
SCREW-PAN-CROS 220 220D0414 4
SCREW-PAN-WS-CROS 223 223C0410 2
SCREW-PAN-WSP-CROS 225 225C0418 4
JET-MAIN,#150 92063E 92063-1330 1 (OFF ROAD USE ONLY)
JET-MAIN,#152 92063F 92063-1331 1 (OFF ROAD USE ONLY)
JET-MAIN,#155 92063H 92063-1332 1 US (OFF ROAD USE ONLY)
JET-MAIN,#158 92063I 92063-1344 1 (OFF ROAD USE ONLY)
JET-MAIN,#160 92063J 92063-1345 1 (OFF ROAD USE ONLY)
JET-PILOT,#40 92064 92064-1108 1
PLUG,12X25 92068 92068-006 1
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,THROTTLE STOP SCREW 92081A 92081-1617 1
SPRING,DIAPHRAGM VALVE 92081B 92081-1718 1
SPRING,AIR CUT VALVE 92081C 92081-1719 1
SPRING,PLUNGER 92081D 92081-1720 1
COLLAR 92143 92143-1667 1
TUBE,6.5X11.5X160 92190 92190-1473 1
CARBURETOR-ASSY 15001 15001-1792 1 US
CARBURETOR-ASSY 15001A 15001-1869 1 CN
JET-MAIN,#140 92063 92063-1013 1 US (OFF ROAD USE ONLY)
JET-MAIN,#135 92063A 92063-1014 1 US
JET-MAIN,#138 92063B 92063-1015 1 US (OFF ROAD USE ONLY)
JET-MAIN,#130 92063C 92063-1075 1 US (OFF ROAD USE ONLY)
JET-MAIN,#132 92063D 92063-1076 1 US (OFF ROAD USE ONLY)
JET-MAIN,#155 92063G 92063-1332 1 CN
