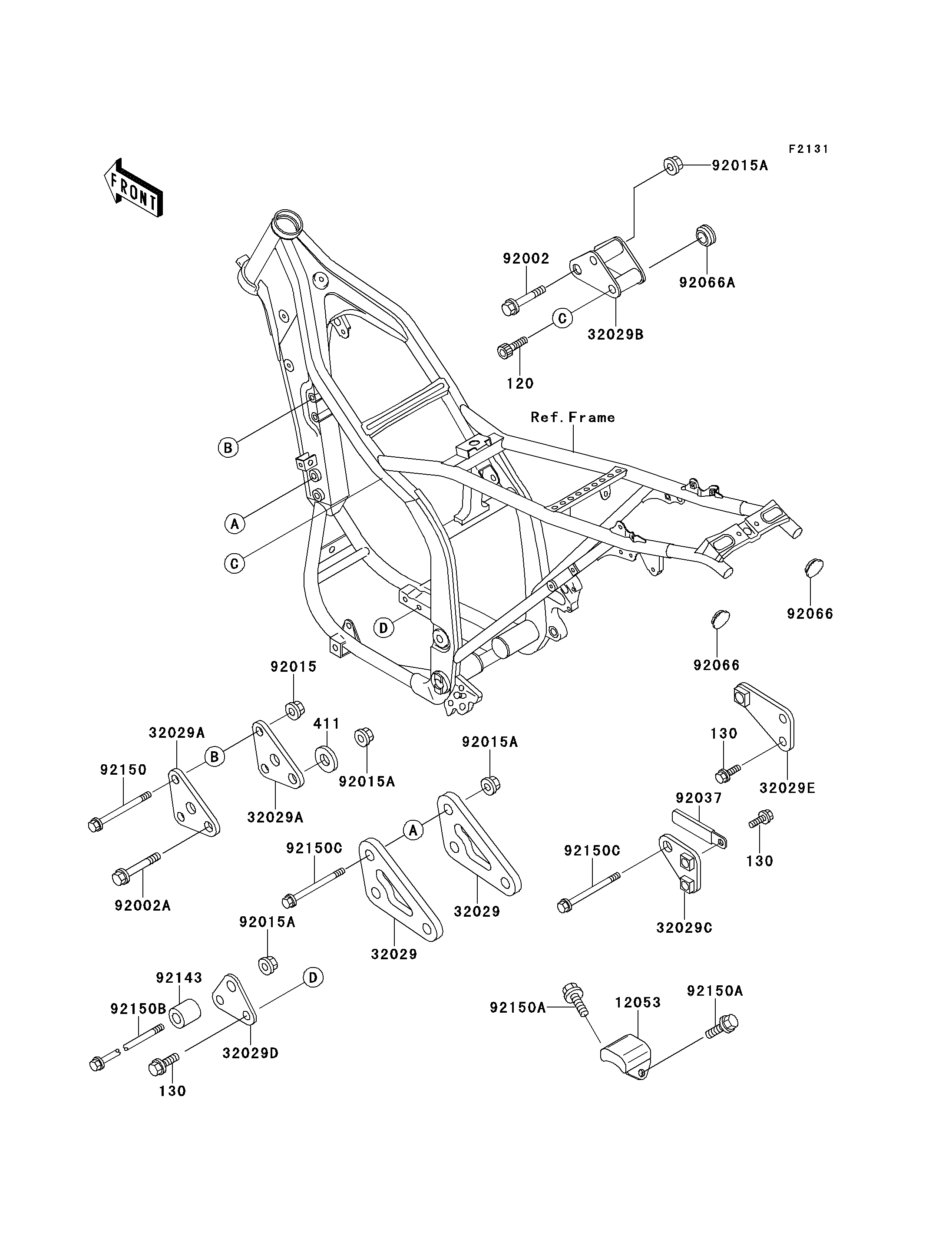

Parts Diagrams |
120
130
130
130
411
12053
32029
32029
32029A
32029A
32029B
32029C
32029D
32029E
92002
92002A
92015
92015A
92015A
92015A
92015A
92037
92066
92066
92066A
92143
92150
92150A
92150A
92150B
92150C
92150C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,8X55 | 120 | 120P0855 | 2 | ||
BOLT-FLANGED,8X16 | 130 | 130G0816 | 6 | ||
WASHER-PLAIN,10MM | 411 | 411B1000 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-1310 | 1 | ||
BRACKET-ENGINE,FR,LWR | 32029 | 32029-1840 | 2 | ||
BRACKET-ENGINE,FR,UPP | 32029A | 32029-1858 | 2 | ||
BRACKET-ENGINE,RR,UPP,VIOLET | 32029B | 32029-1859-45 | 1 | ||
BRACKET-ENGINE,RR,LWR,LH,VIO | 32029C | 32029-1882-45 | 1 | ||
BRACKET-ENGINE,LWR,VIOLET | 32029D | 32029-1884-45 | 1 | ||
BRACKET-ENGINE,RR,LWR,RH,VIO | 32029E | 32029-1899-45 | 1 | ||
BOLT,FLANGED,10X46 | 92002 | 92002-1740 | 1 | ||
BOLT,FLANGED,10X53 | 92002A | 92002-1936 | 1 | ||
NUT,8MM | 92015 | 92015-1432 | 2 | ||
NUT,FLANGED,10MM | 92015A | 92015-1502 | 6 | ||
CLAMP,HARNESS,L=100 | 92037 | 92037-1636 | 1 | ||
PLUG,FRAME END,12X13 | 92066 | 92066-1034 | 2 | ||
PLUG | 92066A | 92066-1115 | 2 | ||
COLLAR,10.5X20X16.2 | 92143 | 92143-1618 | 1 | ||
BOLT,FLANGED,8X50 | 92150 | 92150-1214 | 2 | ||
BOLT,6X14 | 92150A | 92150-1340 | 2 | ||
BOLT,FLANGED,10X150 | 92150B | 92150-1686 | 1 | ||
BOLT,FLANGED,10X95 | 92150C | 92150-1722 | 4 |
BOLT-SOCKET,8X55 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X16 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,10MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,FR,LWR | |
REF # | 32029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,FR,UPP | |
REF # | 32029A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,UPP,VIOLET | |
REF # | 32029B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,LWR,LH,VIO | |
REF # | 32029C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,LWR,VIOLET | |
REF # | 32029D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,LWR,RH,VIO | |
REF # | 32029E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X46 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X53 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS,L=100 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,FRAME END,12X13 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,10.5X20X16.2 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X50 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X150 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X95 | |
REF # | 92150C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
