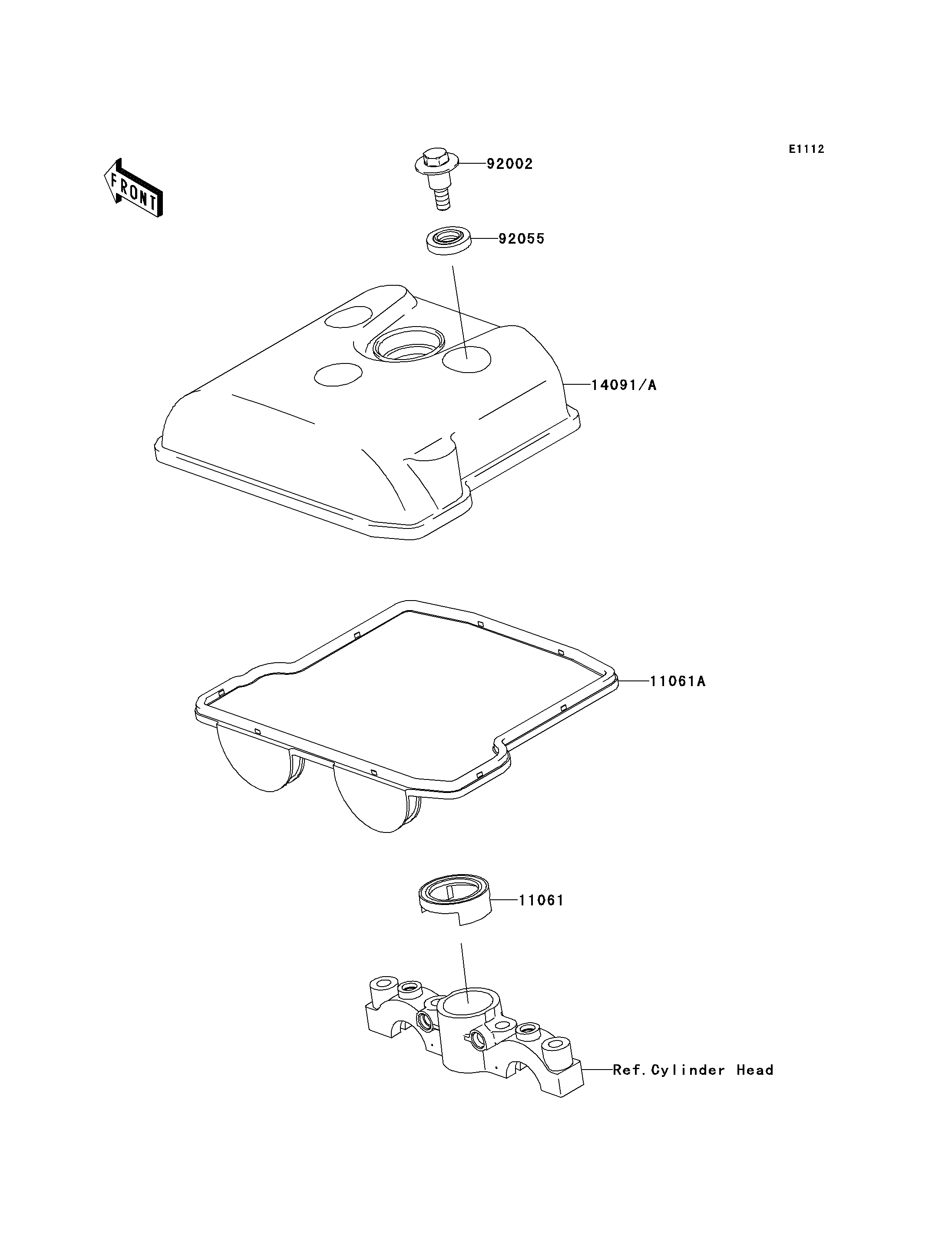

11061
11061A
14091
92002
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PLUG HOLE 11061 11061-0079 1
GASKET,CYLINDER HEAD COVER 11061A 11061-0185 1
COVER,CYLINDER HEAD 14091 14091-0796 1
BOLT,FLANGED,6X22.5 92002 92002-1327 3
RING-O,HEAD COVER BOLT 92055 92055-1352 3
