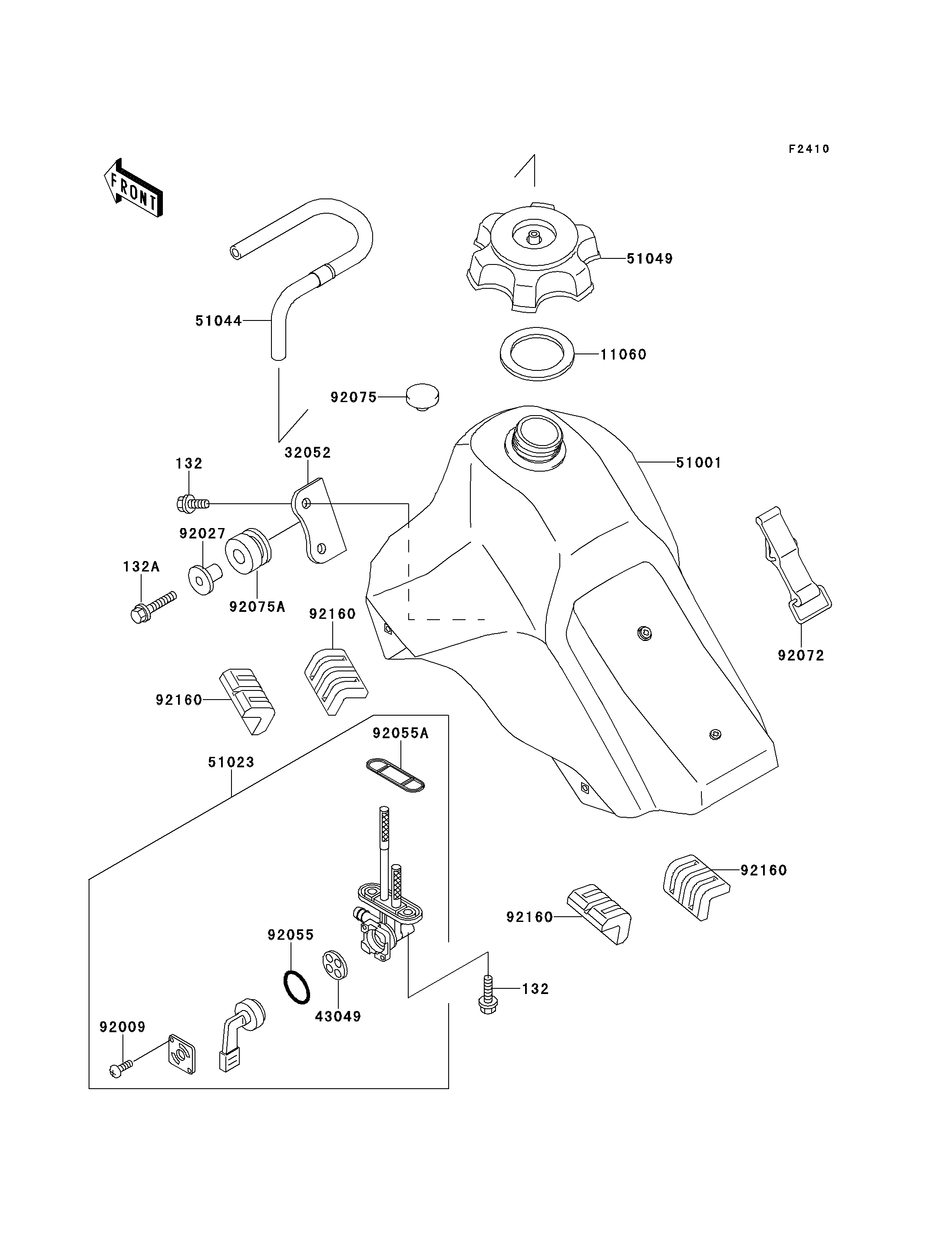

1996 KLX650R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
11060
32052
43049
51001
51023
51044
51049
92009
92027
92055
92055A
92072
92075
92075A
92160
92160
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 4
BOLT-FLANGED-SMALL 132A 132G0630 1
GASKET,FUEL TANK CAP 11060 11060-1340 1
BRACKET-TANK 32052 32052-1169 1
PACKING,FUEL TAP LEVER 43049 43049-1017 1
TANK-COMP-FUEL,L.GREEN 51001 51001-1493-6W 1
TAP-ASSY,FUEL 51023 51023-1227 1
TUBE-ASSY 51044 51044-1185 1
CAP-TANK,FUEL 51049 51049-1104 1
SCREW,3X5 92009 92009-1123 2
COLLAR,L=16.1 92027 92027-1847 1
RING-O,FUEL TAP LEVER 92055 92055-1111 1
RING-O,FUEL TAP PACKING 92055A 92055-1112 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-005 1
DAMPER 92075A 92075-1787 1
DAMPER,FUEL TANK 92160 92160-1328 4
