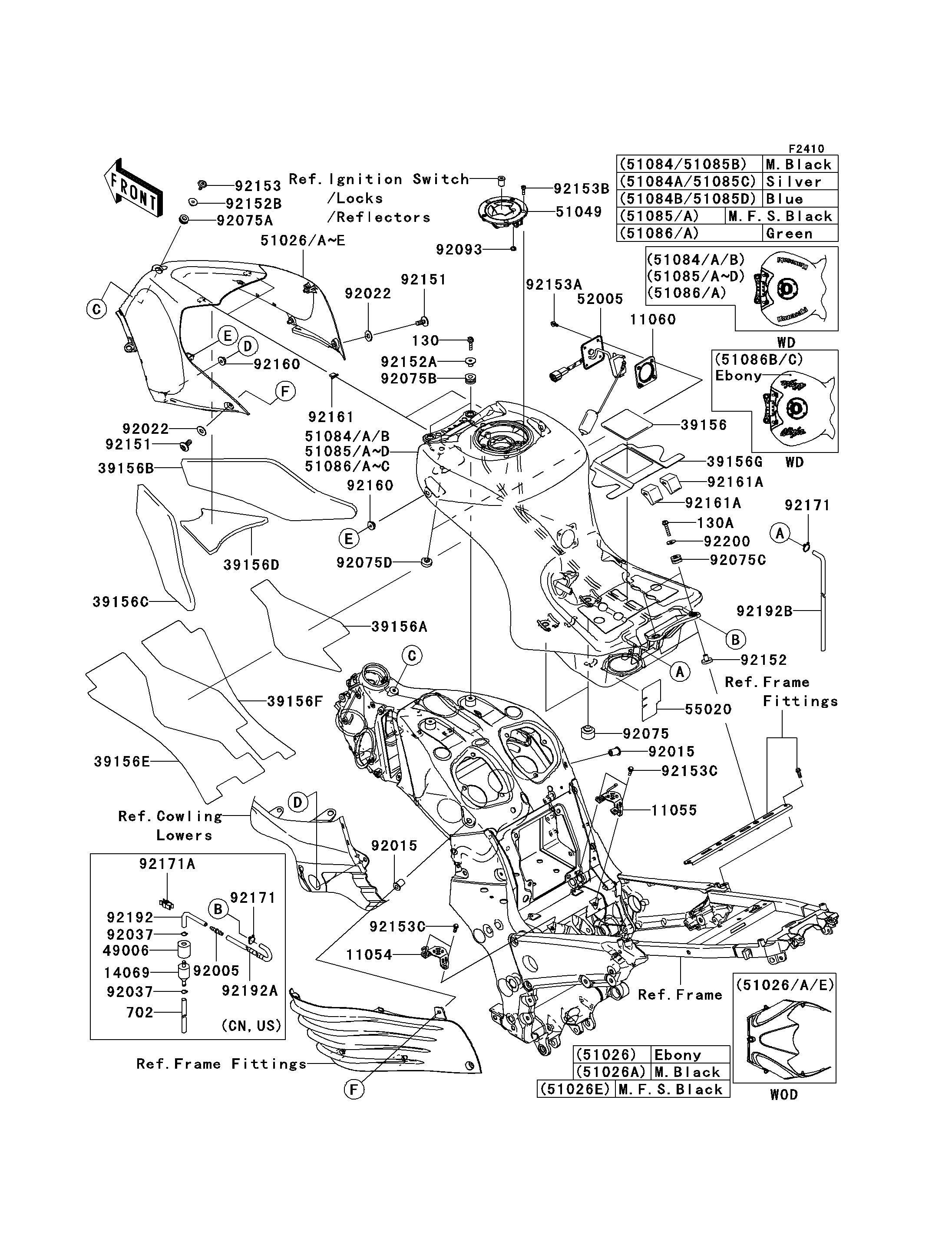

2008 Ninja® ZX™-14 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054
11055
11055
11055
11060
11060
11060
39156
39156
39156
39156A
39156A
39156A
39156B
39156B
39156B
39156C
39156C
39156C
39156D
39156D
39156D
39156E
39156E
39156E
39156F
39156F
39156F
39156G
39156G
39156G
51026D
51026D
51026D
51049
51049
51049
52005
52005
52005
55020
55020
55020
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92075C
92075C
92075C
92075D
92075D
92075D
92093
92093
92093
92151
92151
92151
92151
92151
92151
92152
92152
92152
130
130
130
130A
130A
130A
92152A
92152A
92152A
92152B
92152B
92152B
92153
92153
92153
92153A
92153A
92153A
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153C
92153C
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92192B
92192B
92192B
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,CNT,LH 11054 11054-0681 1
BRACKET,FUEL TANK,CNT,RH 11055 11055-0063 1
GASKET,FUEL GAUGE 11060 11060-1952 1
PAD,SEAT 39156 39156-0129 1
PAD,FUEL TANK,CNT 39156A 39156-0147 1
PAD,FUEL TANK COVER,RH 39156B 39156-0159 1
PAD,FUEL TANK COVER,LH 39156C 39156-0160 1
PAD,FUEL TANK COVER,CNT 39156D 39156-0161 1
PAD,FUEL TANK,LH 39156E 39156-0173 1
PAD,FUEL TANK,RH 39156F 39156-0174 1
PAD,FUEL TANK 39156G 39156-0373 1
COVER TANK,FUEL,M.M.S.BLUE 51026D 51026-0007-19A 1
CAP-TANK,FUEL 51049 51049-0012 1
GAUGE,FUEL 52005 52005-0026 1
GUARD,FUEL TANK 55020 55020-0290 1
NUT,RUBBER,6MM 92015 92015-1692 2
WASHER,6.5X16X1 92022 92022-1143 2
DAMPER 92075 92075-015 2
DAMPER 92075A 92075-1634 1
DAMPER 92075B 92075-1690 2
DAMPER 92075C 92075-209 2
DAMPER 92075D 92075-281 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 2
COLLAR 92152 92152-0364 2
BOLT-FLANGED,6X25 130 130BA0625 2
BOLT-FLANGED,6X30 130A 130BA0630 2
COLLAR 92152A 92152-0365 2
COLLAR 92152B 92152-0424 1
BOLT,SOCKET,6X23 92153 92153-1267 1
BOLT,FLANGED,5X12 92153A 92153-1421 4
BOLT,SOCKET,5X16 92153B 92153-1616 3
BOLT,FLANGED,6X20 92153C 92153-1694 4
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0365 2
DAMPER 92161A 92161-0458 2
TUBE,DRAIN 92192B 92192-0693 1
WASHER,6.5X20X1.6 92200 92200-0283 2
BREATHER 14069 14069-1051 1 CNUS
BOOT,BREATHER 49006 49006-1267 1 CNUS
COVER TANK,FUEL,SILVER 51026B 51026-0007-17M 1 CAUS
TANK-COMP-FUEL,SILVER 51084A 51084-5441-17M 1 CA
TANK-COMP-FUEL,M.M.S.BLUE 51084B 51084-5441-19A 1 CA
TANK-COMP-FUEL,SILVER 51085C 51085-5351-17M 1 US
TANK-COMP-FUEL,M.M.S.BLUE 51085D 51085-5351-19A 1 CNUS
FITTING 92005 92005-0096 1 CNUS
CLAMP,TUBE 92037 92037-147 2 CNUS
TUBE-RUBBER,7X10X200 702 702A07200 1 CNUS
CLAMP 92171 92171-0573 1 CA
CLAMP 92171 92171-0573 2 CNUS
CLAMP 92171A 92171-1720 1 CNUS
TUBE,BREATHER,INNER 92192 92192-0615 1 CNUS
TUBE,BREATHER,UPP 92192A 92192-0648 1 CNUS
