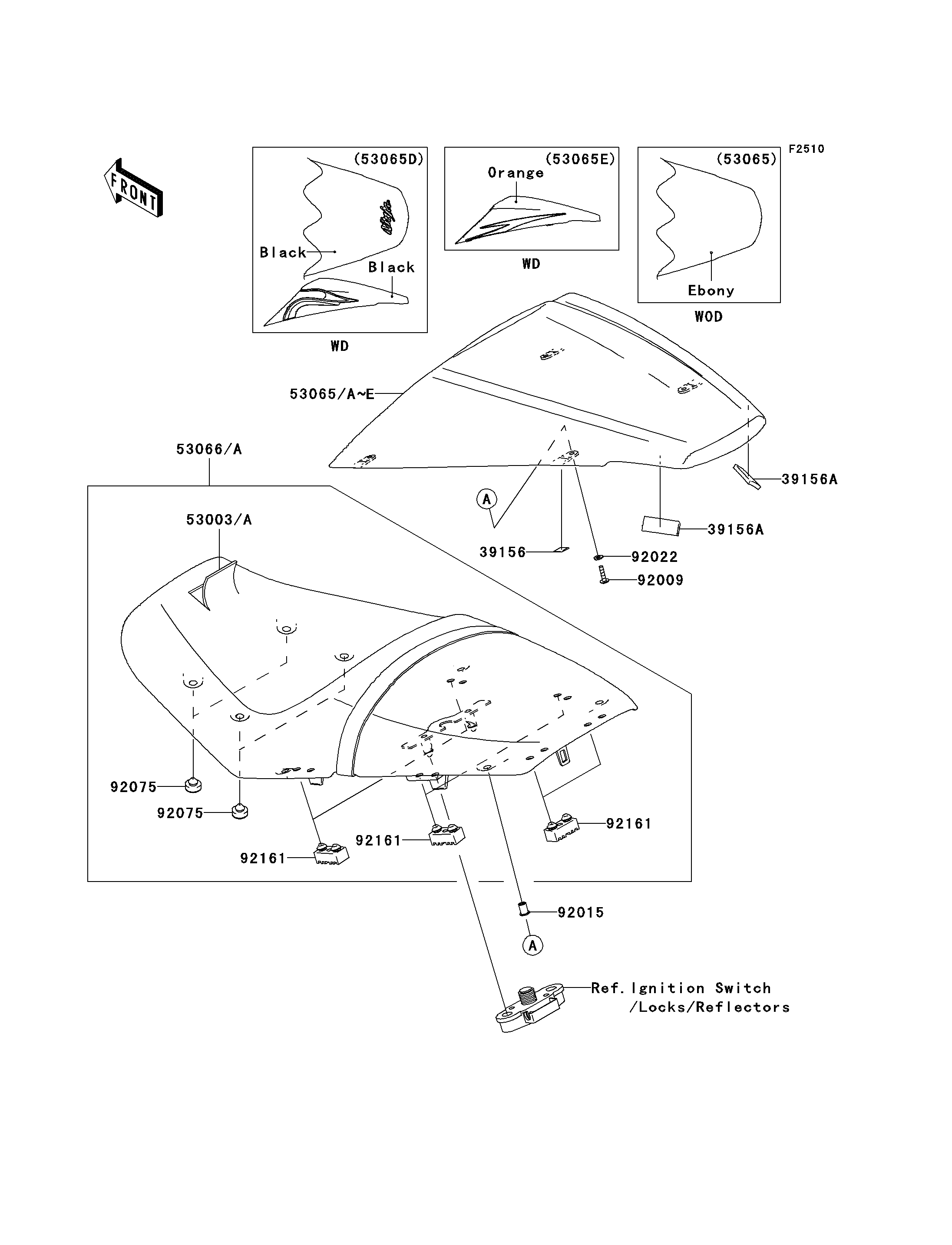

39156
39156A
39156A
53003
53065C
53066
92009
92015
92022
92075
92075
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD 39156 39156-0176 4
PAD,SEAT COVER 39156A 39156-0188 2
LEATHER,SEAT,BLACK 53003 53003-0103-MA 1
COVER SEAT,M.M.S.BLUE 53065C 53065-0012-19A 1
SEAT-ASSY,DUAL,W/BAND,BLACK 53066 53066-0161-MA 1
SCREW,5X20,BLACK 92009 92009-1656 4
NUT,WELL,5MM 92015 92015-1757 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
DAMPER 92075 92075-1927 4
DAMPER,SEAT 92161 92161-0050 6
COVER SEAT,SILVER 53065A 53065-0012-17M 1 CAUS
