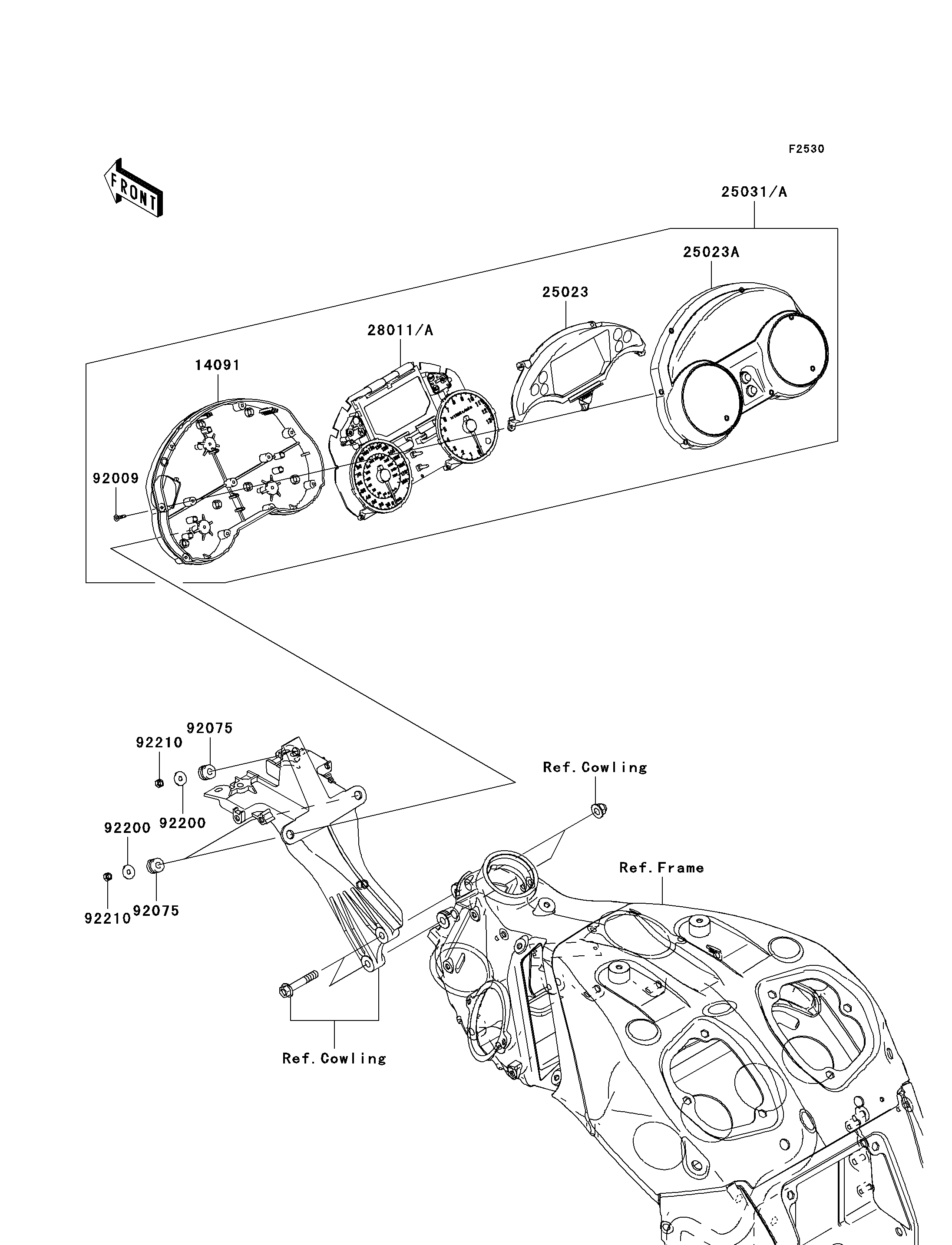

14091
25023
25023A
92009
92075
92075
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER,LWR 14091 14091-0546 1
COVER-METER CASE,VISOR 25023 25023-0021 1
COVER-METER CASE,UPP 25023A 25023-0034 1
SCREW,TAPPING,3X16 92009 92009-1164 11
DAMPER 92075 92075-1435 3
WASHER 92200 92200-0288 3
NUT,5MM 92210 92210-0290 3
METER-ASSY,SPEED&TACHO&LCD 25031 25031-0183 1 CAUS
METER-ASSY,SPEED&TACHO&LCD 25031A 25031-0185 1 CN
METER,SPEED&TACHO&LCD 28011 28011-0095 1 CAUS
METER,SPEED&TACHO&LCD 28011A 28011-0097 1 CN
