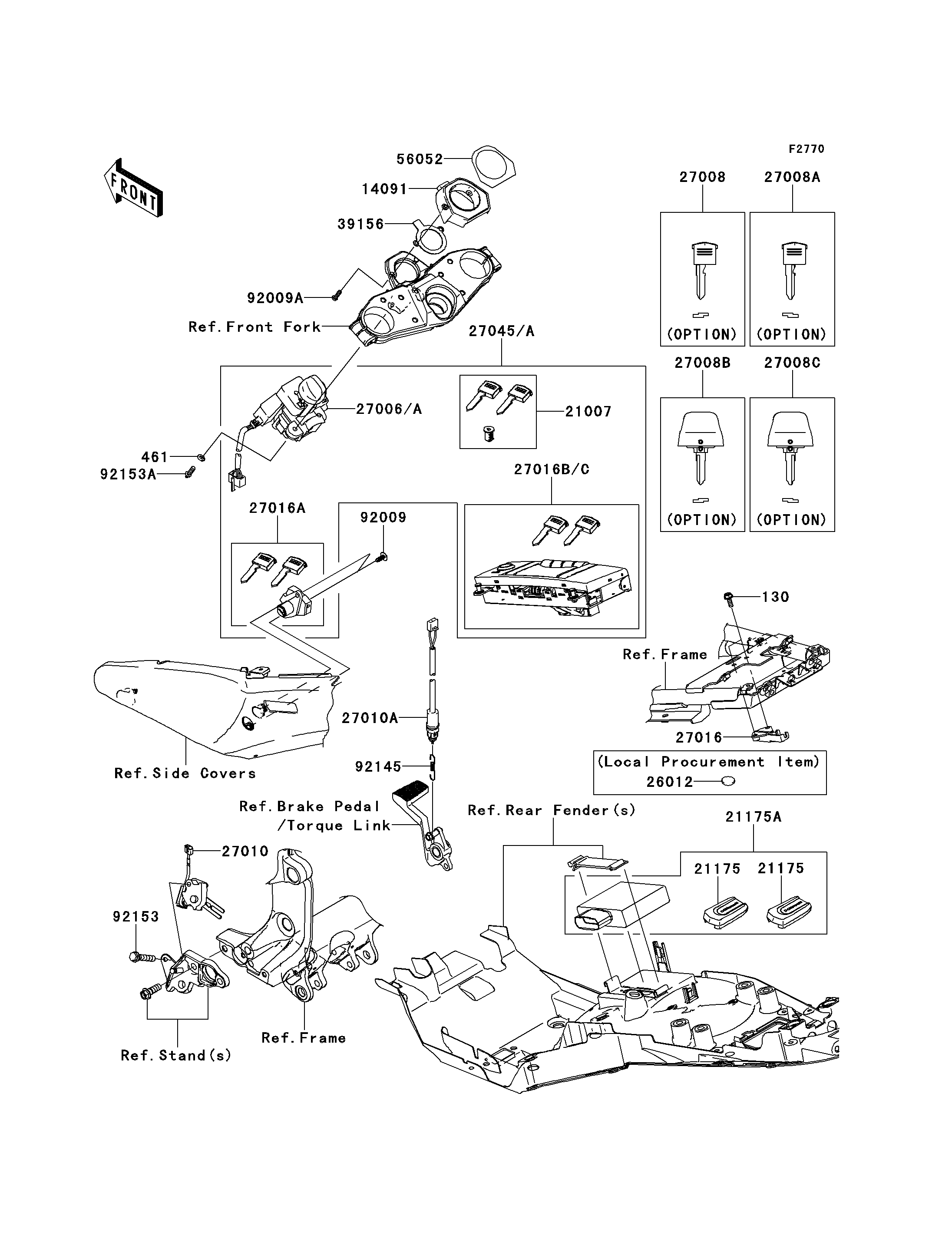

2008 Concours™ 14 - Ignition Switch/Locks/Reflectors
130
461
14091
21007
21175
21175
21175A
26012
27006
27008
27008A
27008B
27008C
27010
27010A
27016
27016A
27016B
27016C
27045
39156
56052
92009
92009A
92145
92153
92153A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 | ||
WASHER-SPRING,6MM | 461 | 461DA0600 | 2 | ||
COVER,KEY CYLINDER | 14091 | 14091-0659 | 1 | ||
ROTOR,LOCK TANK CAP | 21007 | 21007-5062 | 1 | ||
FOB KEY | 21175 | 21175-0181 | 2 | ||
CONTROL UNIT-ELECTRONIC | 21175A | 21175-0183 | 1 | ||
BATTERY,FOB KEY,CR2025 | 26012 | 1 | (LOCAL PROCUREMENT ITEM) | ||
SWITCH-IGNITION | 27006 | 27006-0048 | 1 | ||
KEY-LOCK,BLANK,#A | 27008 | 27008-0048 | 1 | (OPTION) | |
KEY-LOCK,BLANK,#B | 27008A | 27008-0049 | 1 | (OPTION) | |
KEY-LOCK,BLANK,#A,MAIN SWITCH | 27008B | 27008-0050 | 1 | (OPTION) | |
KEY-LOCK,BLANK,#B,MAIN SWITCH | 27008C | 27008-0051 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-0064 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-1479 | 1 | ||
LOCK-ASSY,SEAT STRIKER | 27016 | 27016-1115 | 1 | ||
LOCK-ASSY,SEAT | 27016A | 27016-5350 | 1 | ||
LOCK-ASSY,SIDE BAG,LH | 27016B | 27016-5355 | 1 | ||
LOCK-ASSY,SIDE BAG,RH | 27016C | 27016-5356 | 1 | ||
SWITCH-ASSY | 27045 | 27045-5393 | 1 | ||
PAD,KEY CYLINDER | 39156 | 39156-0319 | 1 | ||
MARK,IGNITION SWITCH | 56052 | 56052-1946 | 1 | ||
SCREW,TAPPING | 92009 | 92009-1113 | 2 | ||
SCREW,TAPPING,5X16 | 92009A | 92009-1264 | 2 | ||
SPRING,REAR BRAKE SWITCH | 92145 | 92145-0471 | 1 | ||
BOLT,FLANGED,6X30 | 92153 | 92153-1425 | 1 | ||
BOLT,TORX,6X16 | 92153A | 92153-1426 | 2 |
