Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

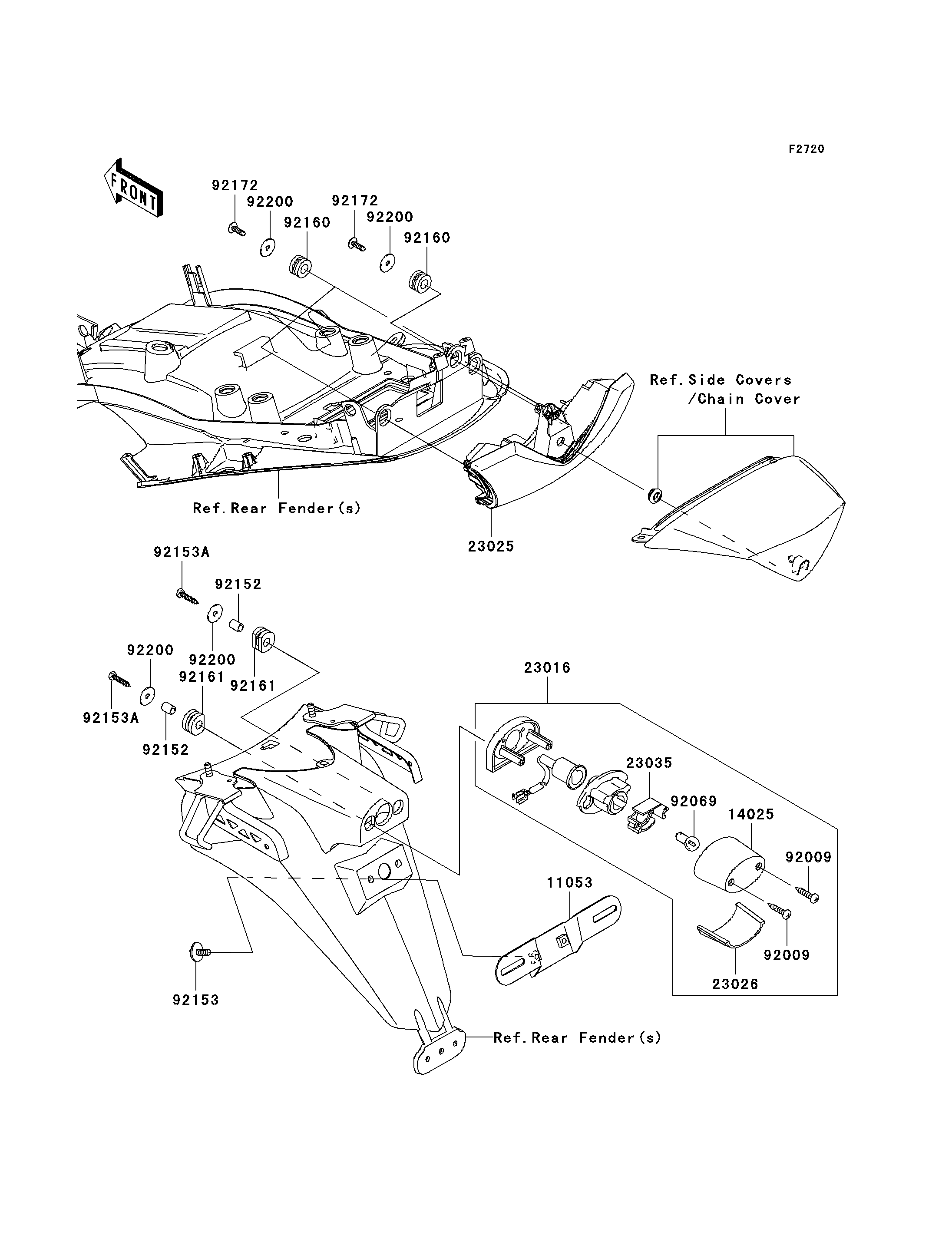

11053
14025
23016
23025
23026
23035
92009
92009
92069
92152
92152
92153
92153A
92153A
92160
92160
92161
92161
92172
92172
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LICENSE | 11053 | 11053-0400 | 1 | ||
| COVER,LICENSE LAMP | 14025 | 14025-1725 | 1 | ||
| LAMP-ASSY,LICENSE | 23016 | 23016-1200 | 1 | ||
| LAMP-TAIL | 23025 | 23025-0021 | 1 | ||
| LENS,LICENSE LAMP | 23026 | 23026-1064 | 1 | ||
| REFLECTOR-LAMP,LICENSE | 23035 | 23035-1066 | 1 | ||
| SCREW,TAPPING,4X20 | 92009 | 92009-1378 | 2 | ||
| BULB,12V 5W | 92069 | 92069-1055 | 1 | ||
| COLLAR,6X9X11.5 | 92152 | 92152-0372 | 2 | ||
| BOLT,6X16 | 92153 | 92153-0684 | 2 | ||
| BOLT,TAPPING,5X25 | 92153A | 92153-1424 | 2 | ||
| DAMPER | 92160 | 92160-1167 | 3 | ||
| DAMPER | 92161 | 92161-1313 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 3 | ||
| WASHER,5.5X20X1.2 | 92200 | 92200-0284 | 5 |
| BRACKET,LICENSE | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,LICENSE LAMP | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY,LICENSE | |
| REF # | 23016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-TAIL | |
| REF # | 23025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,LICENSE LAMP | |
| REF # | 23026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR-LAMP,LICENSE | |
| REF # | 23035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 5W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6X9X11.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,TAPPING,5X25 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X20X1.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
