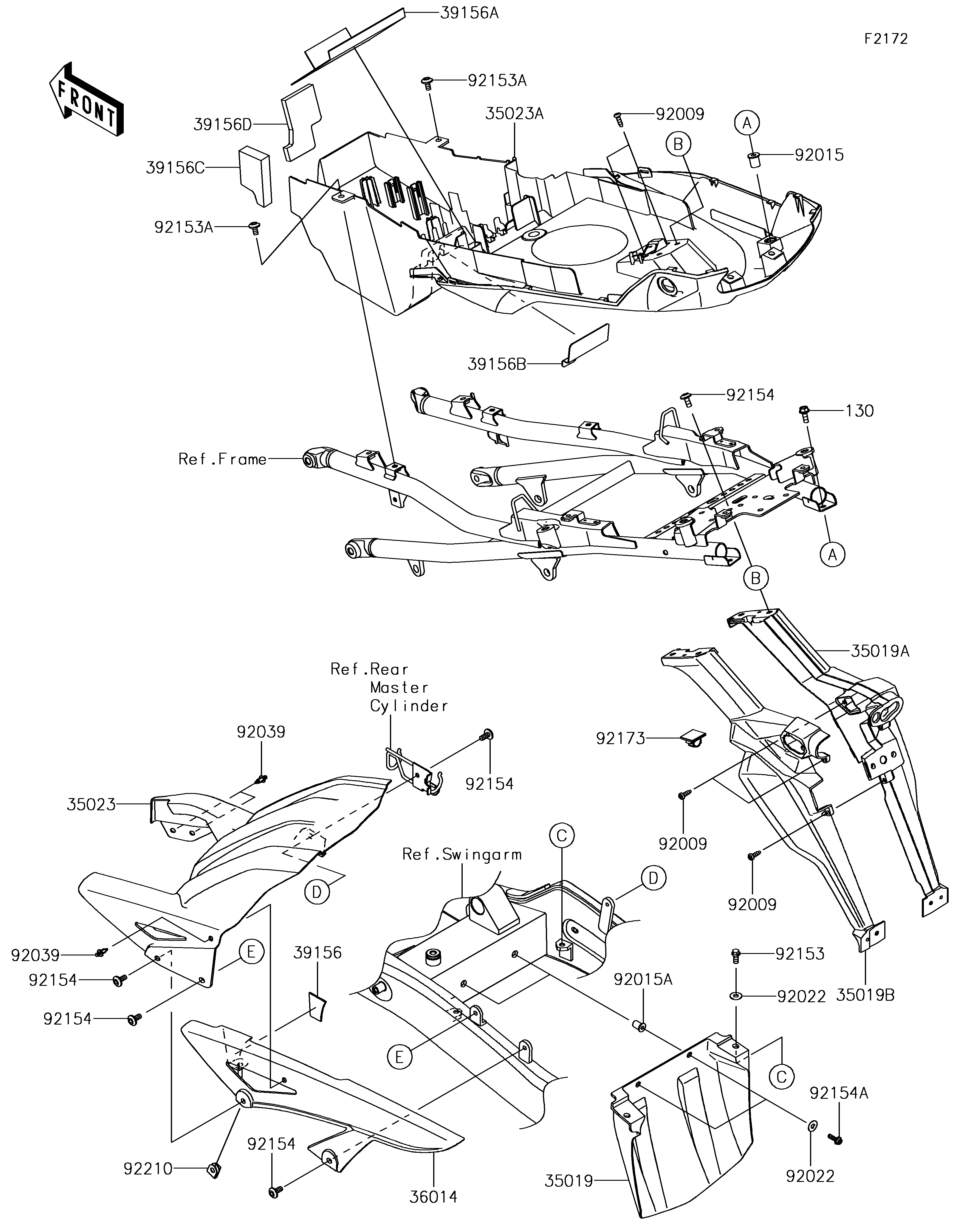

2017 Versys 1000 LT - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
35019
35019A
35019B
35023
35023A
36014
39156
39156A
39156B
39156C
39156D
92009
92009
92009
92015
92015A
92022
92022
92039
92039
92153
92153A
92153A
92154
92154
92154
92154
92154
92154A
92173
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130CA0618 2
FLAP,RR 35019 35019-0563 1
FLAP,RR,RH 35019A 35019-0586 1
FLAP,RR,LH 35019B 35019-0596 1
FENDER-REAR,INNER 35023 35023-0336 1
FENDER-REAR 35023A 35023-0425 1
CASE-CHAIN 36014 36014-0557 1
PAD,CHAIN CASE 39156 39156-0816 1
PAD,BATTERY 39156A 39156-0893 1
PAD,60X76X1 39156B 39156-1863 1
PAD,82X45X15 39156C 39156-1864 1
PAD,72X85X8 39156D 39156-1865 1
SCREW,TAPPING,5X16 92009 92009-1984 5
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 2
WASHER,6.5X16X1.0 92022 92022-1093 4
RIVET 92039 92039-0060 3
BOLT 92153 92153-1805 2
BOLT,SOCKET,6X12 92153A 92153-1948 2
BOLT,SOCKET,6X14 92154 92154-0745 8
BOLT,FLANGED,5X16 92154A 92154-1004 2
CLAMP,DRAIN 92173 92173-1055 1
NUT,6MM 92210 92210-0277 1
