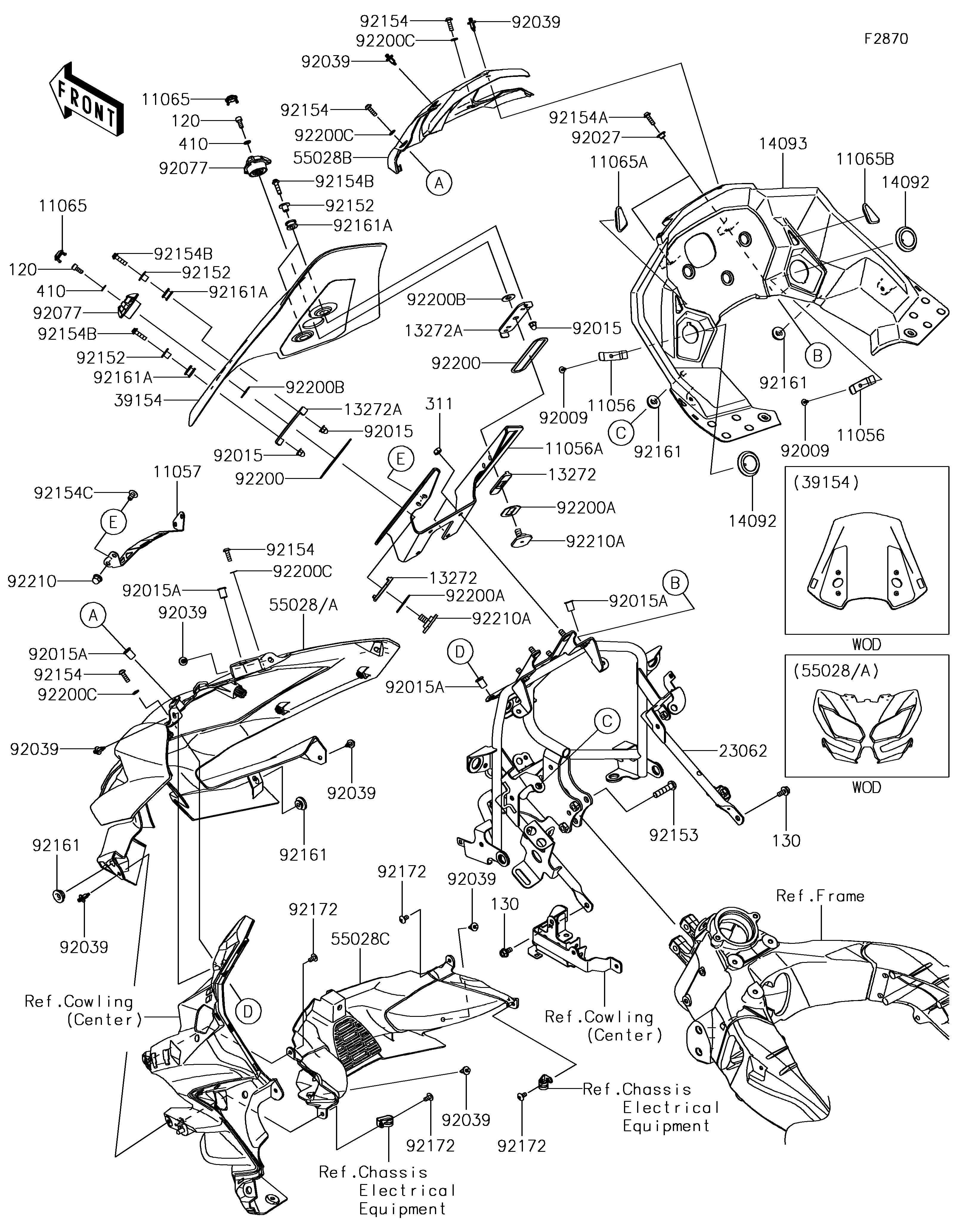

2017 Versys 1000 LT - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056
11056
11056A
11056A
11057
11057
11065
11065
11065
11065
11065A
11065A
11065B
11065B
120
120
120
120
13272
13272
13272
13272
13272A
13272A
13272A
13272A
14092
14092
14092
14092
14093
14093
23062
23062
39154
39154
55028
55028
55028B
55028B
55028C
55028C
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92077
92077
92077
92077
92152
92152
92152
92152
92152
92152
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154C
92154C
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92200C
92200C
92200C
92200C
92200C
92200C
92200C
92200C
92210
92210
92210A
92210A
92210A
92210A
130
130
130
130
311
311
410
410
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-0373 2
BRACKET,WINDSHIELD 11056A 11056-4218 1
BRACKET,METER VISOR 11057 11057-0716 1
CAP,KNOB 11065 11065-0734 2
CAP,METER COVER,LH 11065A 11065-0881 1
CAP,METER COVER,RH 11065B 11065-0882 1
BOLT-SOCKET,5X12 120 120CA0512 2
PLATE,BACK 13272 13272-1925 2
PLATE,FRONT 13272A 13272-2332 2
COVER,DC SOCKET 14092 14092-0214 2
COVER,METER 14093 14093-0130 1
BRACKET-COMP,COWLING STAY 23062 23062-0931 1
WINDSHIELD 39154 39154-0361 1
COWLING,UPP,M.F.S.BLACK 55028 55028-0524-739 1 CA,US
COWLING,UPP,CNT 55028B 55028-0525 1
COWLING,UPP,INNER,LWR 55028C 55028-0526 1
SCREW,TAPPING,4X8 92009 92009-1155 2
NUT,LOCK,FLANGE CAP,5MM 92015 92015-1263 4
NUT,WELL,5MM 92015A 92015-1757 4
COLLAR 92027 92027-1880 2
RIVET 92039 92039-0068 8
KNOB,ADJUSTERS 92077 92077-0034 2
COLLAR 92152 92152-0092 4
BOLT,SOCKET,8X35 92153 92153-0419 2
BOLT,SOCKET,5X16 92154 92154-0026 4
BOLT,SOCKET,5X16 92154A 92154-0209 2
BOLT,SOCKET,5X20 92154B 92154-0919 4
BOLT,SOCKET,6X12 92154C 92154-2546 4
DAMPER 92161 92161-1531 4
DAMPER 92161A 92161-1938 4
SCREW,TAPPING,5X10 92172 92172-0262 4
WASHER 92200 92200-0801 2
WASHER,23.5X32X1 92200A 92200-1706 2
WASHER,8.2X20X1 92200B 92200-1751 2
WASHER,5.2X10X1.0 92200C 92200-1820 4
NUT,CAP,6MM 92210 92210-0003 4
NUT,5MM 92210A 92210-1555 2
BOLT-FLANGED,6X12 130 130BA0612 2
NUT-HEX,6MM 311 311BA0600 4
WASHER-PLAIN-SMALL 410 410AA0500 2
